Engineered for the most demanding, reference-level home theaters, the Furman ELITE-20 PF I stands as the pinnacle of AC power purification. Built on a robust 20-amp chassis, this conditioner unleashes the full capability of your system with our most advanced Ultra-Linear Filtering Technology, offering nearly double the filtering of lesser models for a level of performance surpassed only by our flagship Reference Series. Its enhanced Power Factor Technology circuit creates an astonishing current reserve of over 55 amps (peak), feeding the most power-starved multi-channel amplifiers and subwoofers to reproduce the most extreme cinematic dynamics without distortion. With additional ultrasonic bi-filtering to isolate digital and analog components, the ELITE-20 PF I ensures every subtle audio harmonic and video detail is revealed, delivering the truly uncompromised, professional-grade experience your elite system deserves.
FEATURES
-
SMP Technology: Provides the highest level of protection available
-
LiFT Technology: Significantly reduces AC line noise
-
E.V.S. Overvoltage Protection: Protects equipment from dangerous overvoltage conditions
-
Zero Ground Contamination: Protects critical digital components
-
Power Factor Technology: Provides over 55A peak surplus current for power-hungry amplifiers
-
Ultrasonic Bi-Filtering: Isolates digital and video circuits from analog components
-
Retractable LED Lamps: Illuminate equipment in a cabinet or rack
-
Telco & Cable/Satellite Protection: Detachable module for telco surge suppression plus 3 pairs of TVSS-isolated F-connectors
-
12V Triggering: Enables remote control of the power conditioner
SPECIFICATIONS
-
Series: Elite Series
-
Line Voltage: 120 V
-
Number of Outlets: 13
-
Number of Isolated Banks: 3
-

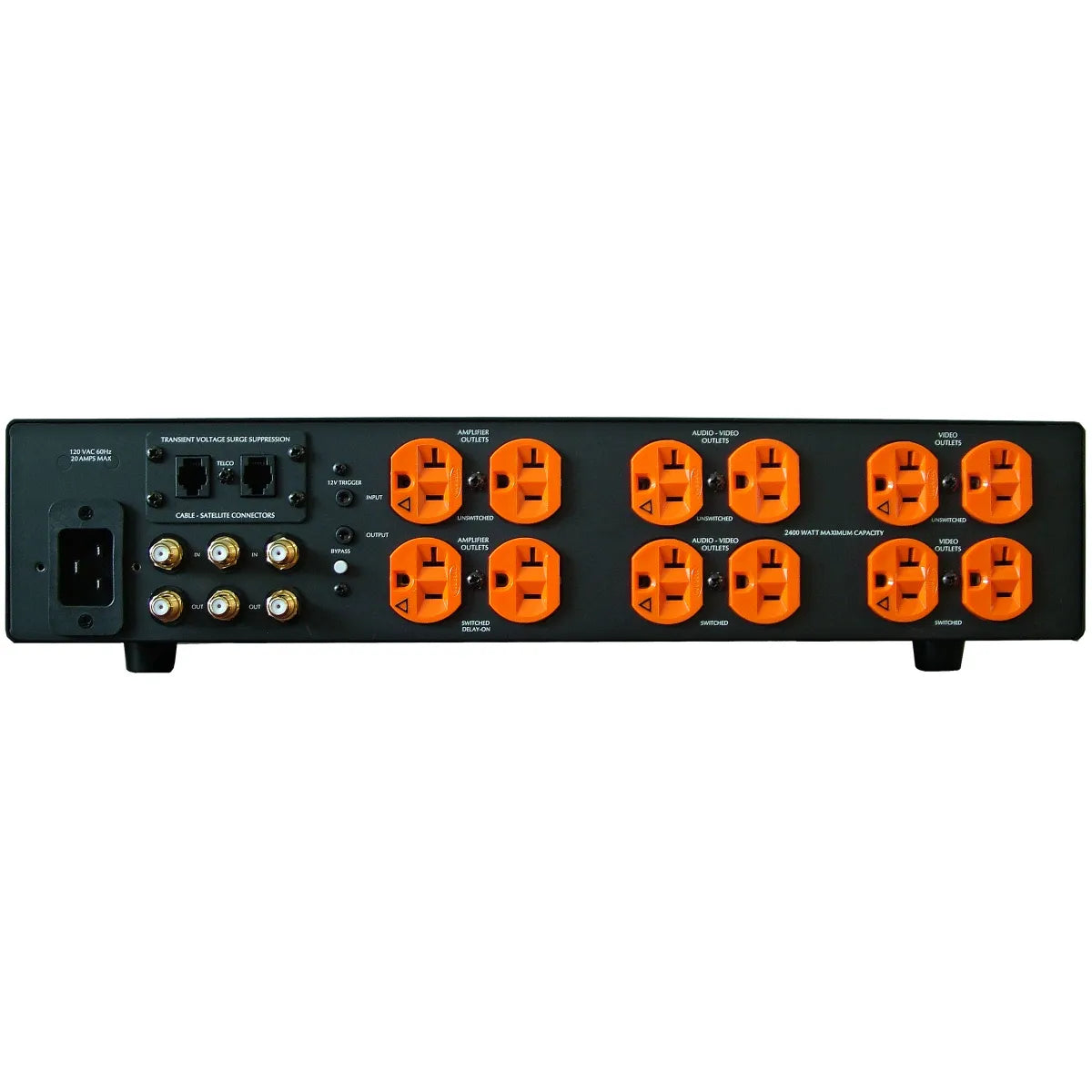

Outlet Configuration:

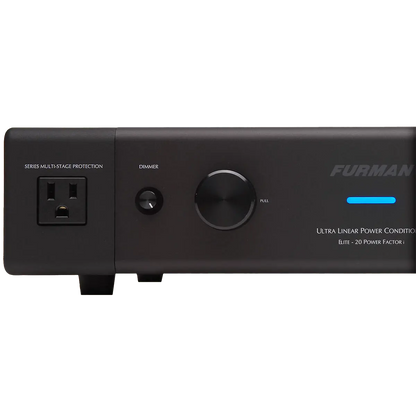

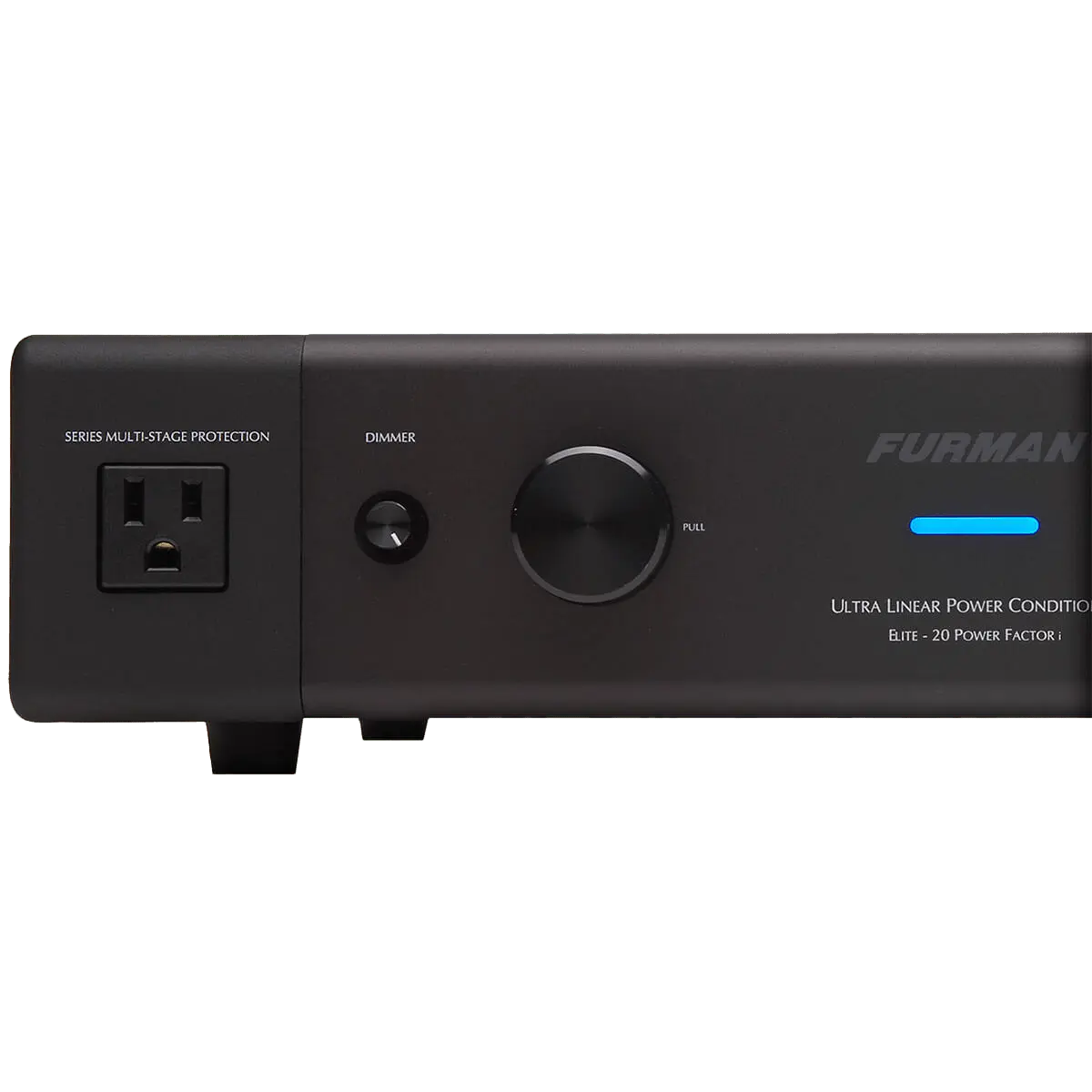

- 1 Ultra-Linearly filtered outlet — front panel
- 8 Ultra-Linearly filtered outlets with additional ultrasonic filtering for video/audio components; 4 with 12V triggering
- 4 Power Factor Technology amplifier outlets; 4.5A RMS reserve with reactive load and over 55A peak charge; 2 with 5-second delay via 12V triggering
-
Rack Mountable: Yes
-
Rack Ears Included: Yes
-
Front Panel Meters: No
-

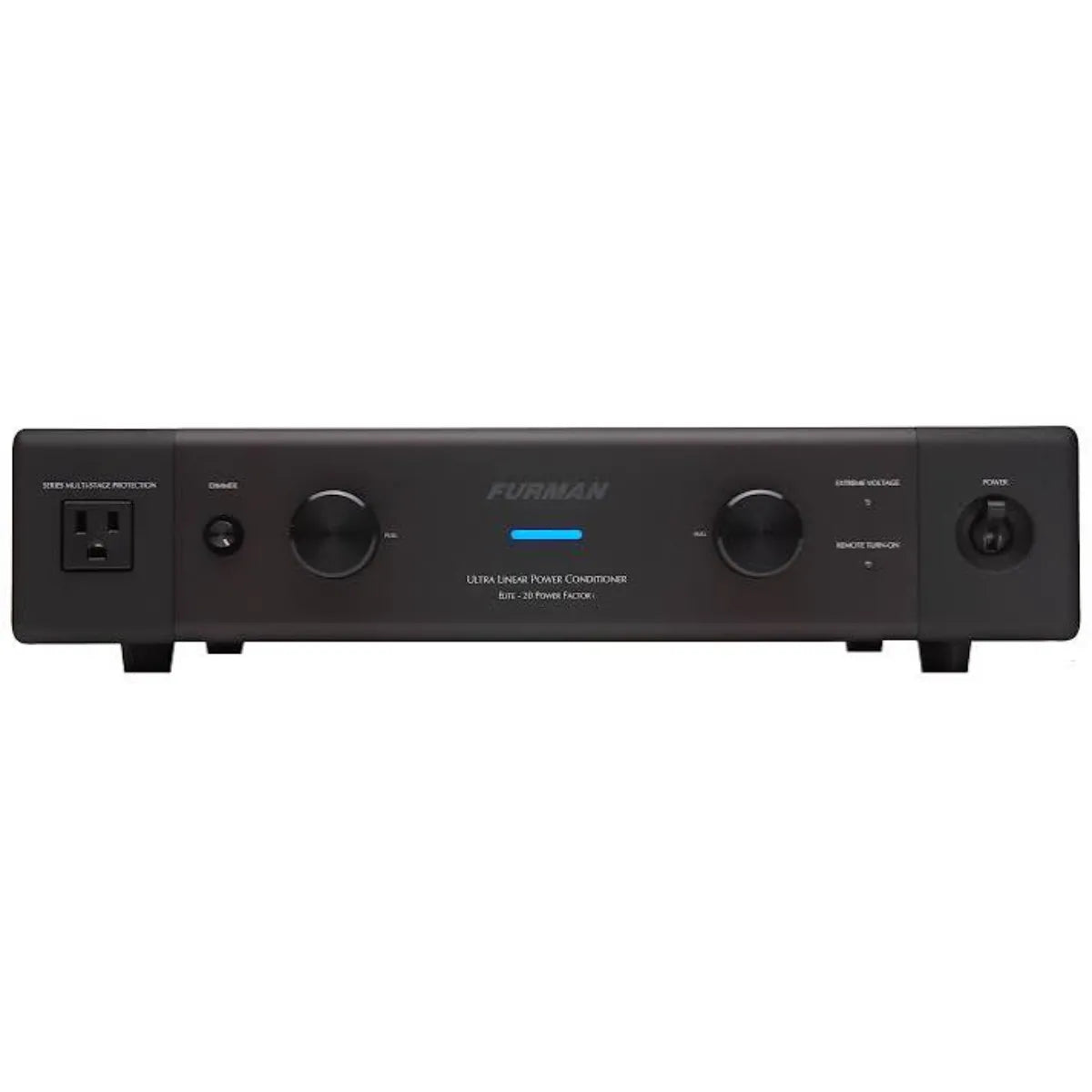

Front Media Lights: 2 retractable LED lamps
-
Control: On/Off switch and light dimmer knob on front panel; 12V triggering for remote control
-
Voltage Regulation: No
-
Compliance: NRTL-C
-
USB Charging: N/A
-
Low Voltage Trigger: 12 V, In/Out
-
Dimensions: 4" H × 17" W × 14.75" D (standard 2 RU height without feet)
-
Weight: 18 lbs
-
Power Consumption: 12 W for display and control circuits, independent of actual load
AC Protection
-
AC Protection Technology:
- Extreme Voltage Shutdown
- Series Multi-Stage Protection
- Non-sacrificial protection with zero ground contamination
-
Under-Voltage Shutoff: 85 V
-
Over-Voltage Shutoff: 140 V ± 3 V
-
Maximum Current Rating: 20 A
-
Initial Clamping Level: 188 VAC peak @ 3,000 A
Filtration
-
Filtration Technology: LiFT
-
Transverse (Differential) Mode:
-
40 dB from 5 kHz–100 kHz
-
80 dB from 100 kHz–1 GHz
-
Common Mode:
-
40 dB from 10 Hz–30 kHz
-
20 dB from 40 kHz–1 MHz
-
Line Impedance: Linear attenuation curve from 0.05–100 Ω
Signal Line Protection
-
Telephone: 1 Tel
-
Cable/Satellite: 3 Cable/Satellite
