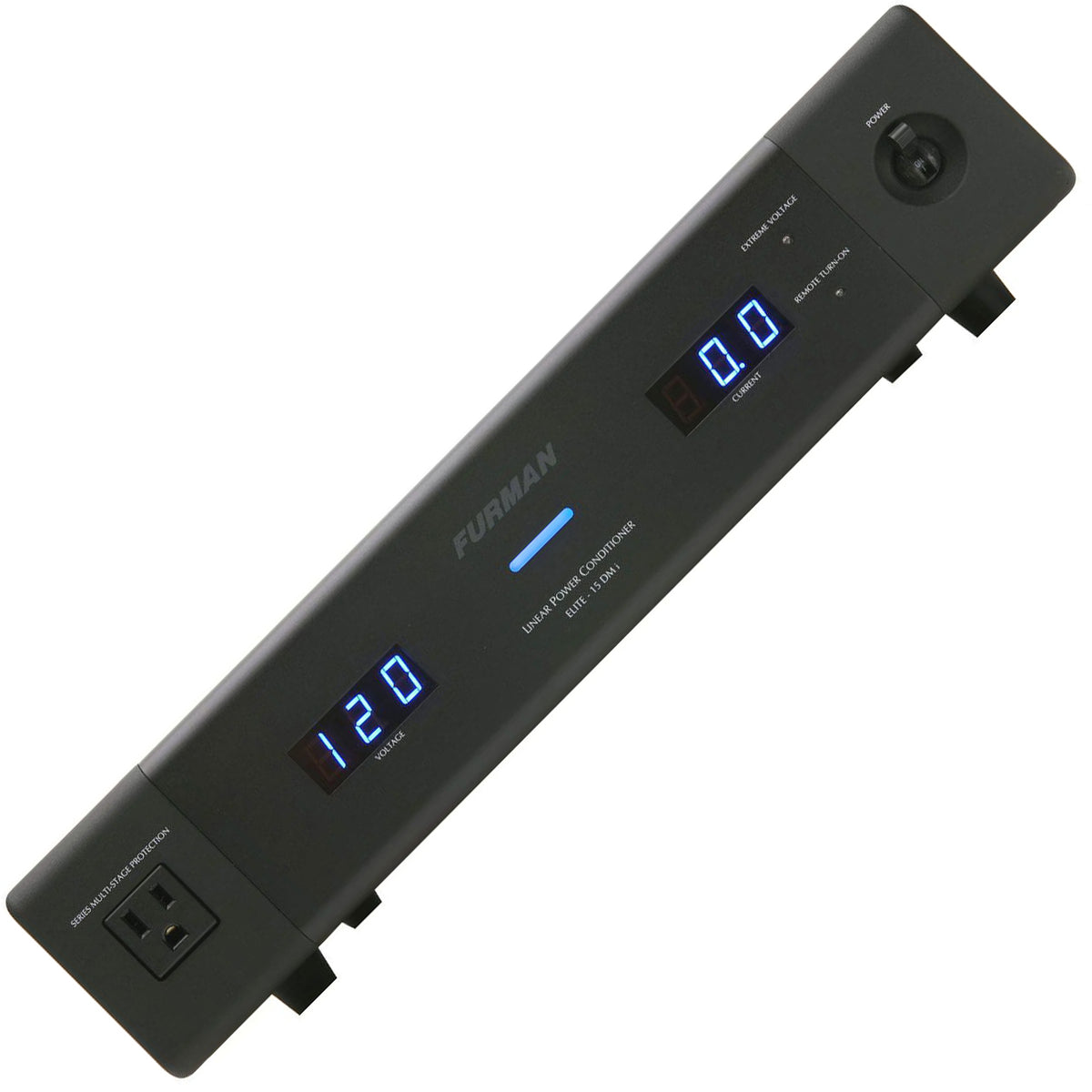

For the home theater enthusiast who demands precision control, the Furman ELITE-15 DM I provides the ultimate in power monitoring and purification. This unit features all the benefits of our renowned Linear Filtering Technology (LiFT) ensuring your system receives clean, noise-free power for unparalleled audio and video clarity while being completely safeguarded from dangerous surges with Series Multi-Stage Protection (SMP), this unit provides professional-grade surge suppression to safeguard your investment without sacrificing itself. Extreme Voltage Shutdown (EVS), which protects against sustained under-voltage (below 85V) or over-voltage (over 140V) events. What sets the ELITE-15 DM I apart are its laboratory-grade digital meters, which display the precise incoming voltage and your system's total current draw in real-time. This critical insight allows you to monitor your home's power quality and understand your system's demands, making it an indispensable tool for protecting and optimizing your premium audio/video investment.
FEATURES
-
SMP Technology: Provides the highest level of protection available
-
LiFT Technology: Significantly reduces AC line noise
-
E.V.S. Overvoltage Protection: Protects equipment from dangerous overvoltage conditions
-
Zero Ground Contamination: Ensures delivery of clean, pure AC power
-
Laboratory-Grade Meters: Dual voltage and current meters
-
12V Triggering: Enables remote control of the power conditioner
SPECIFICATIONS
-
Series: Elite Series
-
Line Voltage: 120 V
-
Number of Outlets: 13
-
Number of Isolated Banks: 3
-

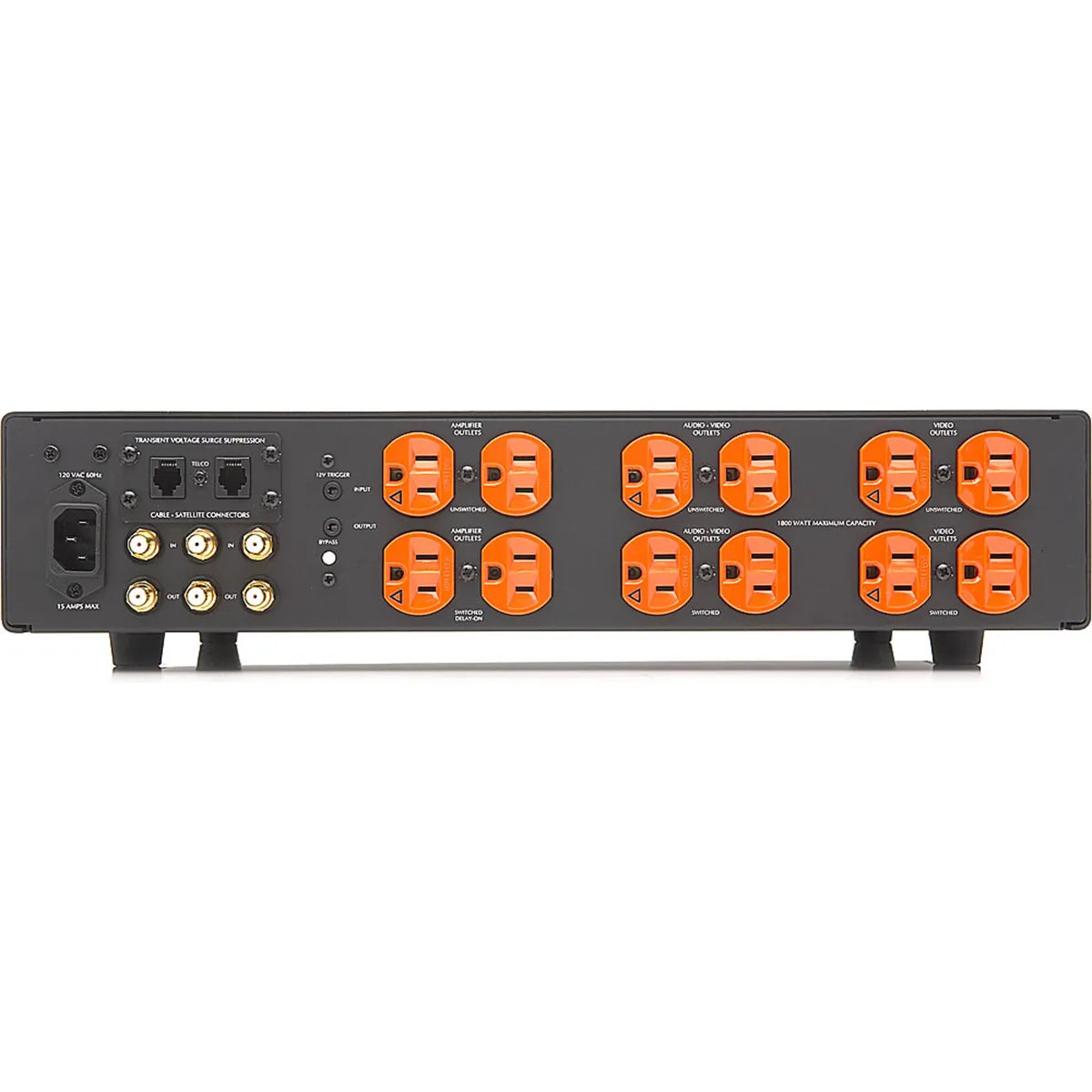

Outlet Configuration:
- 9 linearly filtered outlets — rear panel; 6 switching, 12V triggered
- 4 linearly filtered outlets with additional ultrasonic filtering for digital/video components; 2 switching, 12V triggered
-
Rack Mountable: Yes
-
Rack Ears Included: Yes
-

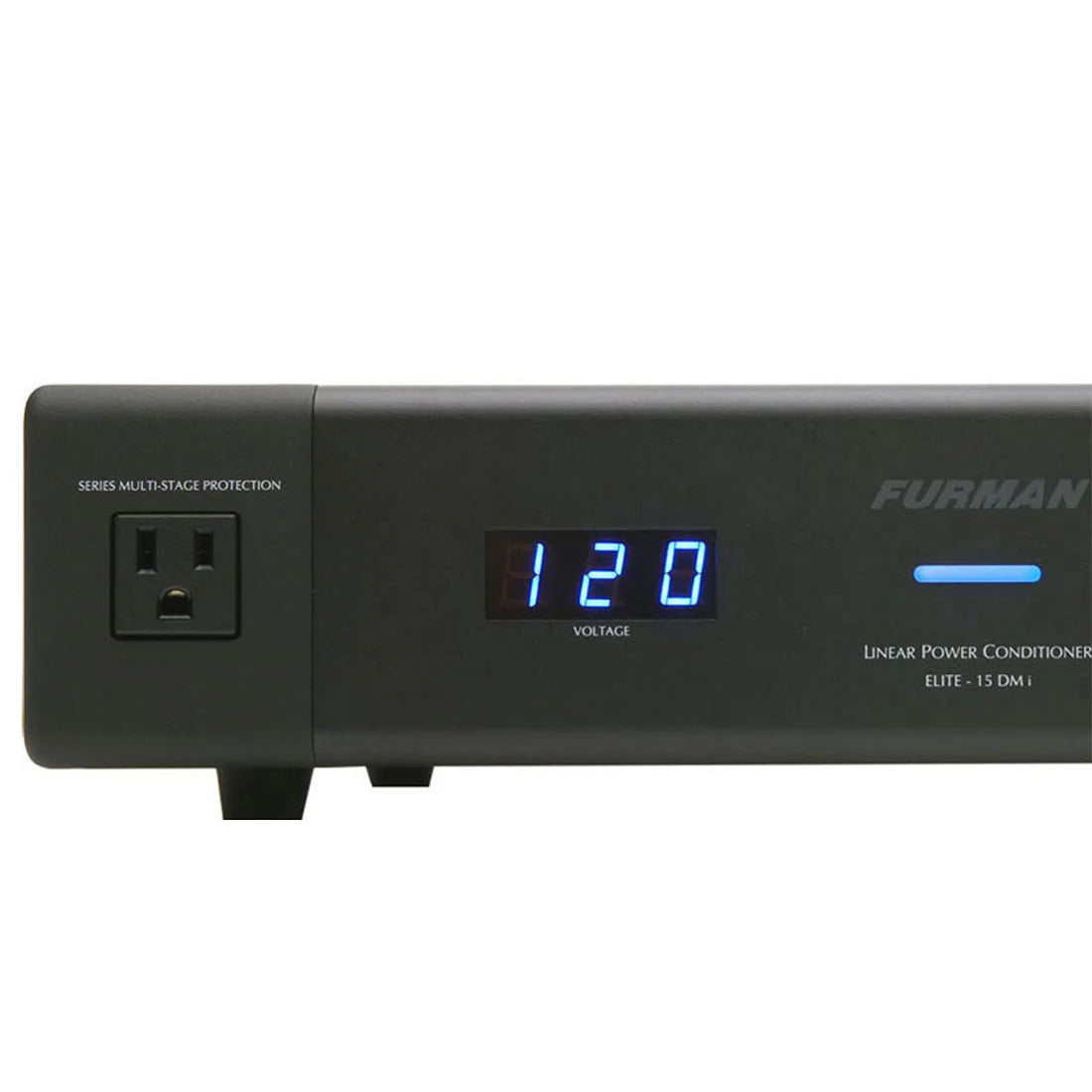

Front Panel Voltmeter: LED voltmeter displaying incoming line voltage
-
Front Panel Ammeter: LED ammeter displaying output current draw
-
Front Media Lights: No
-
Control: On/Off switch on front panel
-
Remote Control: 12V triggering
-
Voltage Regulation: No
-
Compliance: NRTL-C
-
USB Charging: N/A
-
Low Voltage Trigger: 12 V, In/Out
-
Dimensions: 4" H × 17" W × 14.75" D (standard 2 RU height without feet)
-
Weight: 14 lbs
-
Power Consumption: 12 W for display and control circuits, independent of actual load
AC Protection
-
AC Protection Technology:
- Extreme Voltage Shutdown
- Series Multi-Stage Protection
- Non-sacrificial protection with zero ground contamination
-
Under-Voltage Shutoff: 85 V
-
Over-Voltage Shutoff: 140 V ± 3 V
-
Maximum Current Rating: 15 A
-
Initial Clamping Level: 188 VAC peak @ 3,000 A
Filtration
-
Filtration Technology: LiFT
-
Filtration Rating:
-
40 dB from 10 kHz–100 kHz
-
80 dB from 100 kHz–1 GHz
- Linear attenuation curve from 0.05–100 Ω line impedance
Signal Line Protection
-
Telephone: 1 Tel
-
Cable/Satellite: 3 Cable/Satellite
