Revel

F328Be

The Revel F328Be is the flagship floorstanding loudspeaker from our award-winning PerformaBe series.

Regular price $26,000.00
- +

The Revel F328Be is the flagship floorstanding loudspeaker from our award-winning PerformaBe series.

The F328Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful all-new tweeter and 6th-generation ceramic-coated, cast-aluminum Acoustic Lens waveguide seamlessly integrate with the directivity of the companion midrange driver resulting in greater efficiency, improved dynamic range, reduced distortion, and increased power handling compared to aluminum or titanium tweeters.

F328Be Highlights

  • Flagship Floorstander for the PerformaBe Range
  • 1-inch Beryllium Dome Tweeter
  • 6th-generation Acoustic Lens Waveguide
  • Deep Ceramic Composite (DCC) Cone Midrange and Woofers
  • High-order Crossovers with Film Capacitors and Air Core Inductors
  • Magnetically Attached Grilles
  • 4 Premium High-gloss Finishes Available

General Specifications

Type 3-way triple 8" floorstanding loudspeaker
Low-frequency transducer Three 8" (200mm) Deep Ceramic Composite aluminum cones, with cast frames
Midrange transducer 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame
High-frequency transducer 1" (25mm) Beryllium dome, with acoustic lens waveguide
Recommended amplifier power range 50 – 300 watts
Frequency response 26Hz - 40kHz (-6dB)
Low-frequency extension 24Hz (-10dB); 26Hz (-6dB); 35Hz (-3dB)
Nominal impedance 8 ohms
Sensitivity (2.83V/1m) 91 dB
Crossover frequencies 240Hz; 2.1kHz

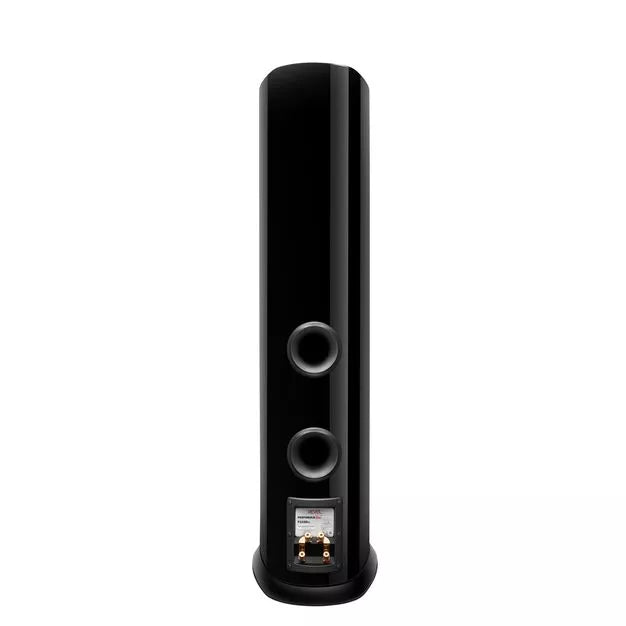

Enclosure type Bass-reflex via dual rear-mounted ports
Inputs Dual gold-plated binding posts with shorting straps

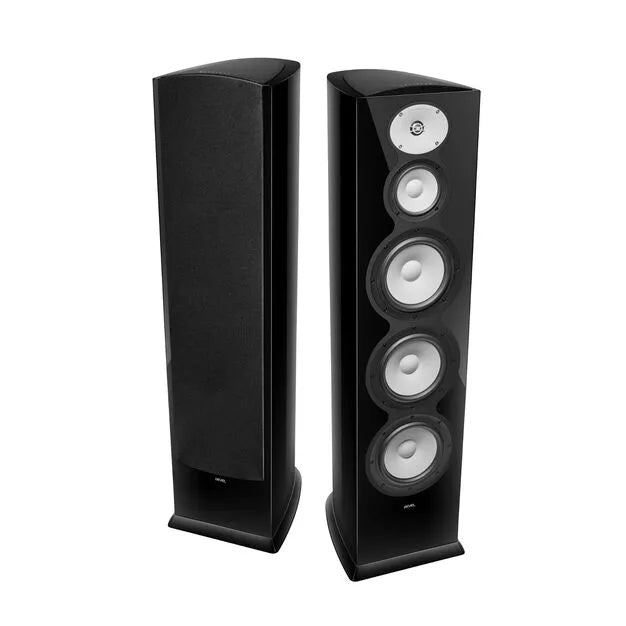

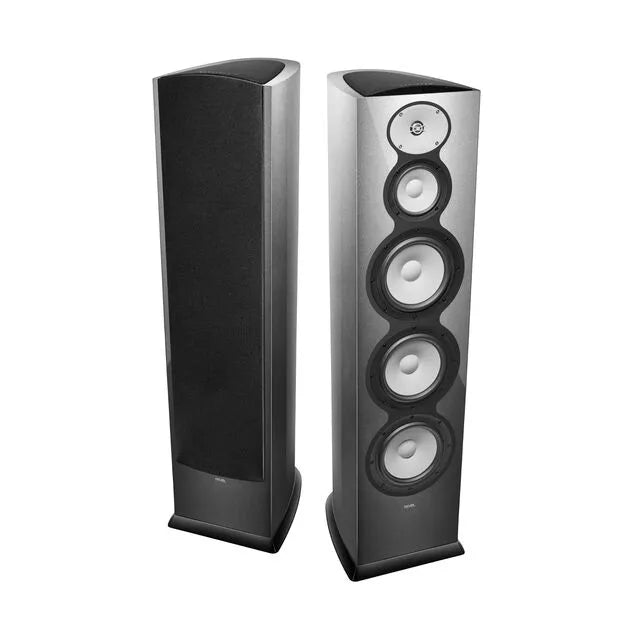

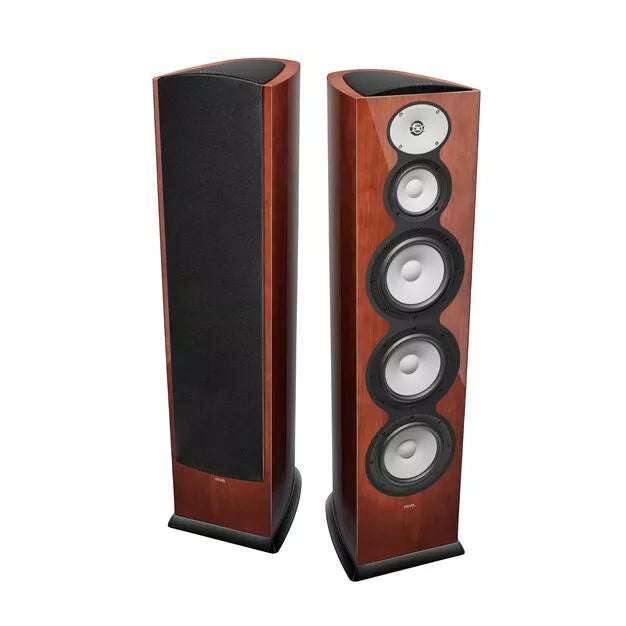

Available high-gloss finishes Black, White, Metallic Silver, and Walnut
Dimensions with base and grille (H x W x D) 50.9" x 13.5 " x 17.6" (1294mm x 341.3mm x 448.5mm)
Product Weight 112.6 lbs (51kg)
