Revel

F228Be

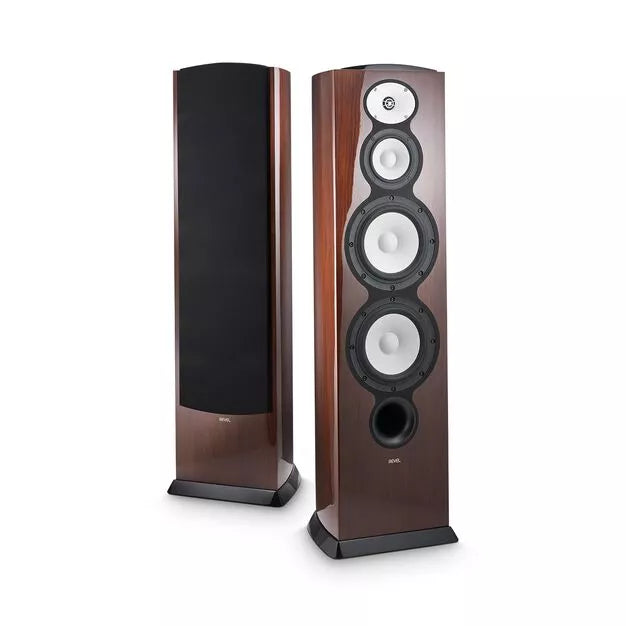

The Revel Performa F228Be is a powerful and elegant 3-way, dual 8-inch floorstanding loudspeaker that sets a new world standard in performance.

Regular price $16,000.00
- +

The Revel Performa F228Be is a powerful and elegant 3-way, dual 8-inch floorstanding loudspeaker that sets a new world standard in performance.

Using the award-winning Performa3 F208 as the starting point, virtually every component was re-engineered to extract the finest details, the highest level of performance, and the most emotion possible. Featuring an all-new Beryllium tweeter, the F228Be delivers unparalleled detail and accuracy with an expansive and cohesive soundstage.

F228Be Highlights

  • 1-inch Beryllium Dome Tweeter
  • High-order Crossovers with Film Capacitors and Air Core Inductors
  • 5th-generation Acoustic Lens Waveguide
  • Magnetically Attached Grilles
  • DCC Cone Midrange and Woofers
  • 4 Premium High-gloss Finishes Available

General Specifications

High-Frequency Driver Components 1" Beryllium dome with acoustic lens waveguide
Mid-Frequency Driver Components 5.25" DCC aluminum cone with cast frame
Low-Frequency Driver Components Dual 8" Deep Ceramic Composite (DCC) Aluminum Cones with cast frames
Frequency Response (-6dB) 33Hz - 40kHz
Low-frequency Extension 30 Hz (-10dB); 33 Hz (-6dB); 44 Hz (-3dB)
Recommended Amplifier Power 50 - 350 Watts RMS
Crossover Frequencies 260Hz; 2.1kHz
Nominal Impedance 8 Ohms
Sensitivity 90dB (2.83V @1M)

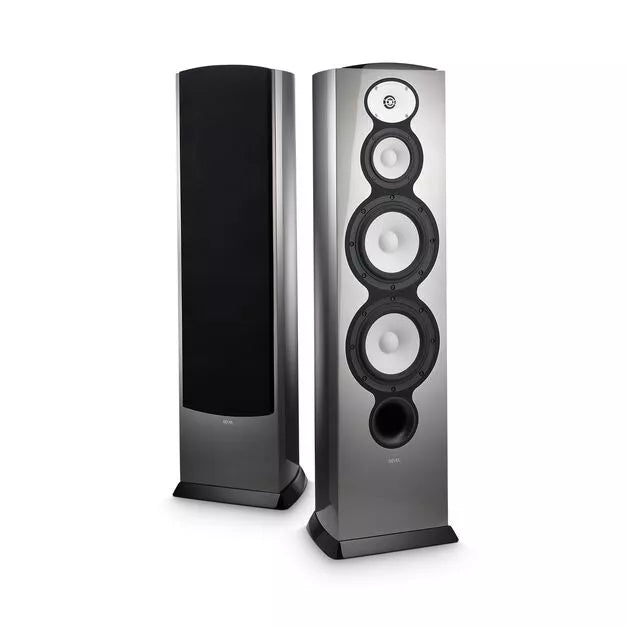

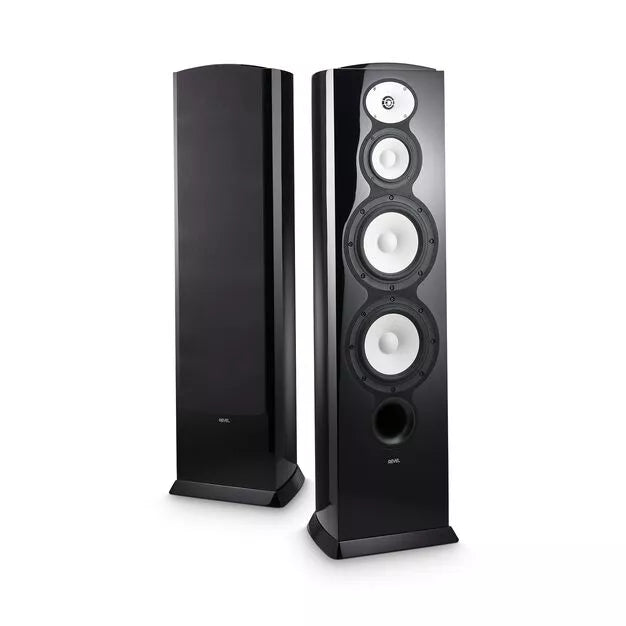

Finishes High-gloss Black, White, Walnut and Metallic Silver
Dimensions (H X W X D) 46.6" x 13.5" x 14.8" (1182.5mm x 341.8mm x 375.3mm)
Net Weight 82 lbs / 37.2kg
