Revel

F226Be

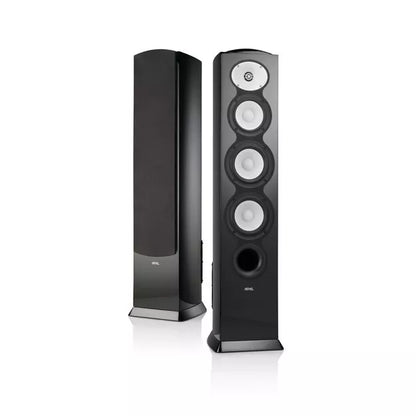

The Revel F226Be joins Revel's award-winning PerformaBe series as a compact floorstanding loudspeaker.

Regular price $11,300.00
- +

The Revel F226Be joins Revel's award-winning PerformaBe series as a compact floorstanding loudspeaker.

As part of the PerformaBe loudspeaker line, the F226Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful tweeter and 5th-generation ceramic-coated, cast-aluminum Acoustic Lens waveguide seamlessly integrate with the directivity of the companion midrange driver resulting in greater efficiency, improved dynamic range, reduced distortion, and increased power handling compared to aluminum or titanium tweeters.

F226BE Highlights

  • 1-inch Beryllium Dome Tweeter
  • 5th-generation Acoustic Lens Waveguide
  • Deep Ceramic Composite (DCC) Cone Midrange and Woofers
  • High-order Crossovers with Film Capacitors and Air Core Inductors
  • Magnetically Attached Grilles
  • 4 Premium High-gloss Finishes Available

General Specifications

Type 3-way dual 6.5" floorstanding loudspeaker
Low-frequency transducer Two 6.5" (165mm) Deep Ceramic Composite aluminum cones, with cast frames
Midrange transducer 5-1/4" (130mm) Deep Ceramic Composite aluminum cone, with cast frame
High-frequency transducer 1" (25mm) Beryllium dome, with acoustic lens waveguide
Recommended amplifier power range 50 – 200 Watts RMS
Frequency response 44 Hz - 40 kHz (-6dB)
Low-frequency extension 33Hz (–10dB); 36Hz (–6dB); 48Hz (–3dB)
Nominal impedance 8 ohms
Sensitivity (2.83V/1m) 90 dB
Crossover frequencies 260Hz; 2.1kHz
Enclosure type Bass-reflex via front-mounted port
Inputs Dual gold-plated binding posts with shorting straps
Available high-gloss finishes Black, White, Metallic Silver, and Walnut
Dimensions – with grille (H x W x D) 41.3” x 9.8” x 13.7” (1050mm x 249mm x 347mm)
Cabinet Weight 58.0 lb (26.4 Kg)
Grille Weight 0.8 lb (0.4 Kg)
