The Furman F1500-UPS battery backup is designed exclusively for audio/video professionals and home theater enthusiasts, addressing the limitations of traditional UPS units. While early UPS units were suitable for IT professionals, they lacked the necessary technologies for premium audio/video components. The Furman F1500-UPS offers unparalleled battery backup technology, specifically engineered to meet the demands of sensitive audio, video, and control systems.
FEATURES
-
Surge Protection: Furman SMP technology provides advanced surge and spike protection
-
Noise Filtration: LiFT AC power filtering provides clean power for enhanced audio/video clarity
-
Voltage Protection: Advanced EVS circuitry detects dangerous voltage irregularities and safely shuts down the unit and connected equipment
-
Diagnostic Indicators: Digital indicators display power quality and operational status
-
Custom Programming: Control via included RS-232 card or optional TCP/IP interface card
-

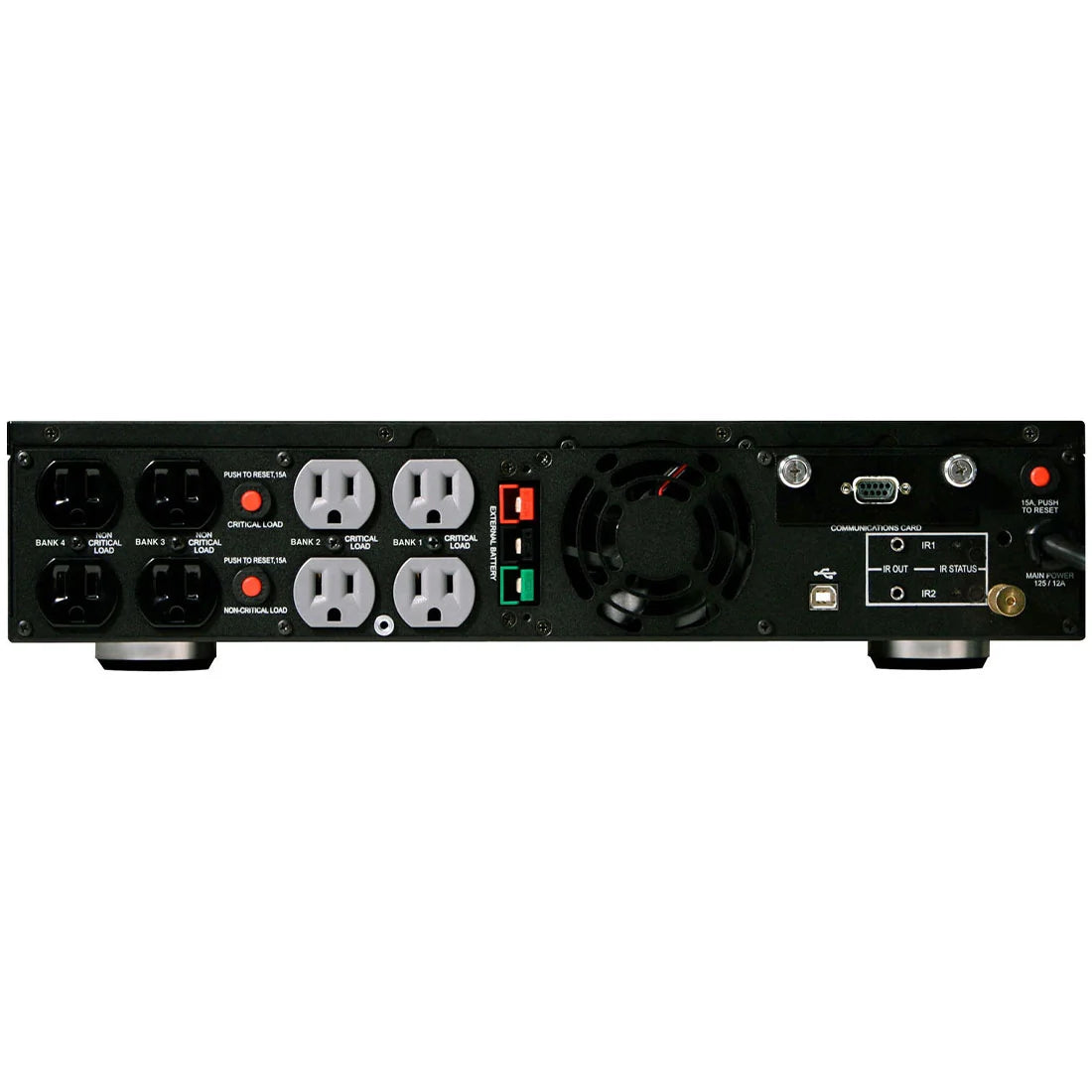

8 Total Outlets: Rear outlets arranged in isolated Critical and Non-Critical load banks
-
Power Control Software: Helps maximize UPS performance and manage connected equipment
-
Battery Backup: 1500VA true sine wave battery backup protects data during power failures
-
Critical Load Management: Prioritizes temporary power allocation to connected equipment
-
Infrared Control: Dual learning IR blasters enable safe shutdown of remote components
-
BlueBOLT® Compatible: Remote control, power cycling, equipment monitoring, and power-quality monitoring via TCP/IP
-
12A Rating: 12A capacity with circuit breaker for additional protection
-
Automatic Voltage Regulation (AVR): Provides stable 120V AC power during line-voltage irregularities
-
Optional Battery Extension: External battery packs can be added and daisy-chained to increase battery capacity
SPECIFICATIONS
-
Series: F-Battery
-
Line Voltage: 120 V
-
Number of Outlets: 8
-
Number of Isolated Banks: 2
-
Outlet Protection: All 8 outlets are surge protected, linearly filtered, and battery backed up
-
Rack Mountable: Yes
-
Rack Ears Included: Yes
-

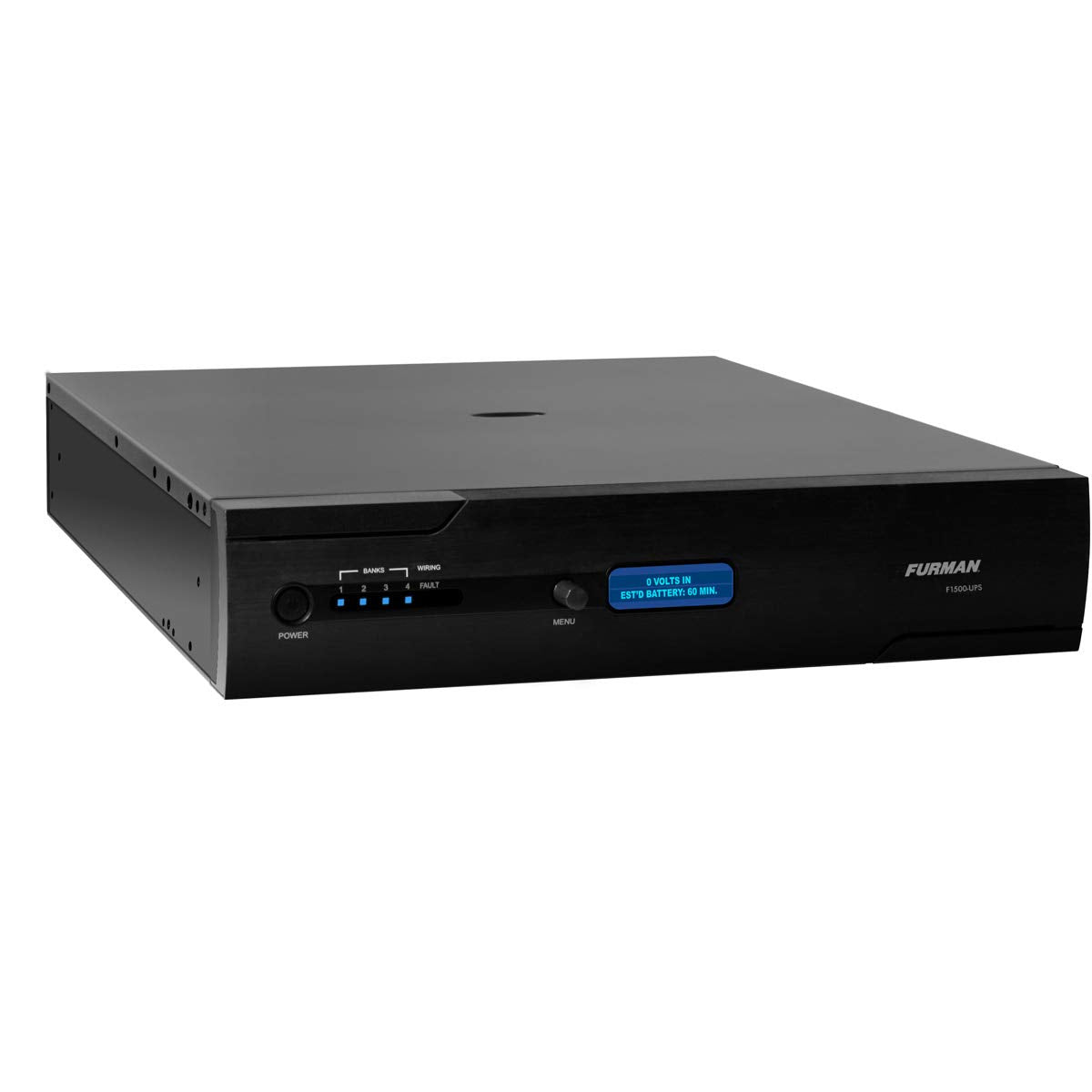

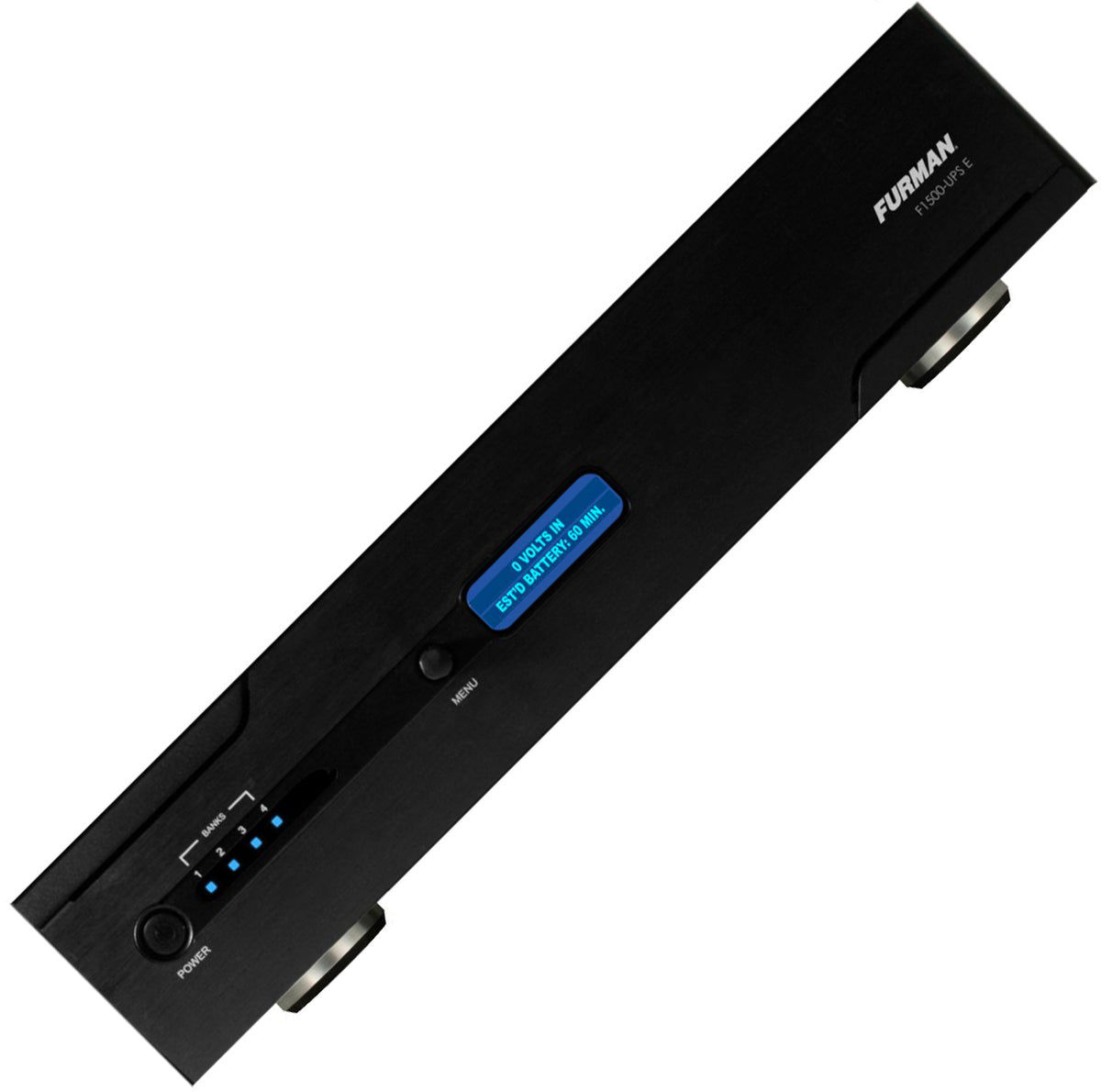

Front Panel Display: LCD display for status and menu navigation
-
Front Media Lights: No
-
Control: Remote control via RS-232 interface card or internet via optional BlueBOLT-CV1 card
-
AC Power Cord: Heavy-duty captive power cord
-
Dimensions: 17" W × 19.2" D × 3.5" H (4" H with feet installed); 19" W with rack ears
-
Weight: 72 lbs
-
UPC: 654061028185
Battery Backup Specifications
-
Input Frequency: 47–63 Hz
-
Regulation Capture Range:
- 96–135 V — Sensitive Mode
- 93–142 V — Standard Mode
-
Output Frequency: 60 Hz ± 1%
-
UPS Output Capacity: 1500 VA, 900 W @ 0.6 pf
-
Regulation Output Range:
- 120 V ± 5% — Sensitive Mode
- 120 V ± 10% — Standard Mode
-
UPS Backup Time (Full Load): 12 minutes
-
UPS Backup Time (Half Load): 32 minutes
-
Transfer Time: <4 ms
AC Protection
-
AC Protection Technology: Non-sacrificial SMP (Series Multi-Stage Protection)
-
Over-Voltage Shutoff:
- 150 V ± 5 V — Fast Rise
- 140 V ± 5 V — Slow Rise
-
Maximum Current Rating: 12 A
Filtration
-
Filtration Technology: Linear Filtering Technology (LiFT)
-
Filtration Rating:
- 10 dB @ 10 kHz
- 40 dB @ 100 kHz
- 50 dB @ 500 kHz
