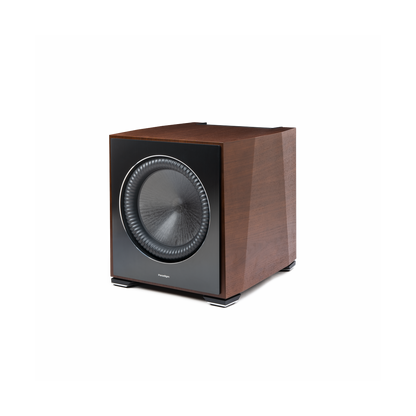

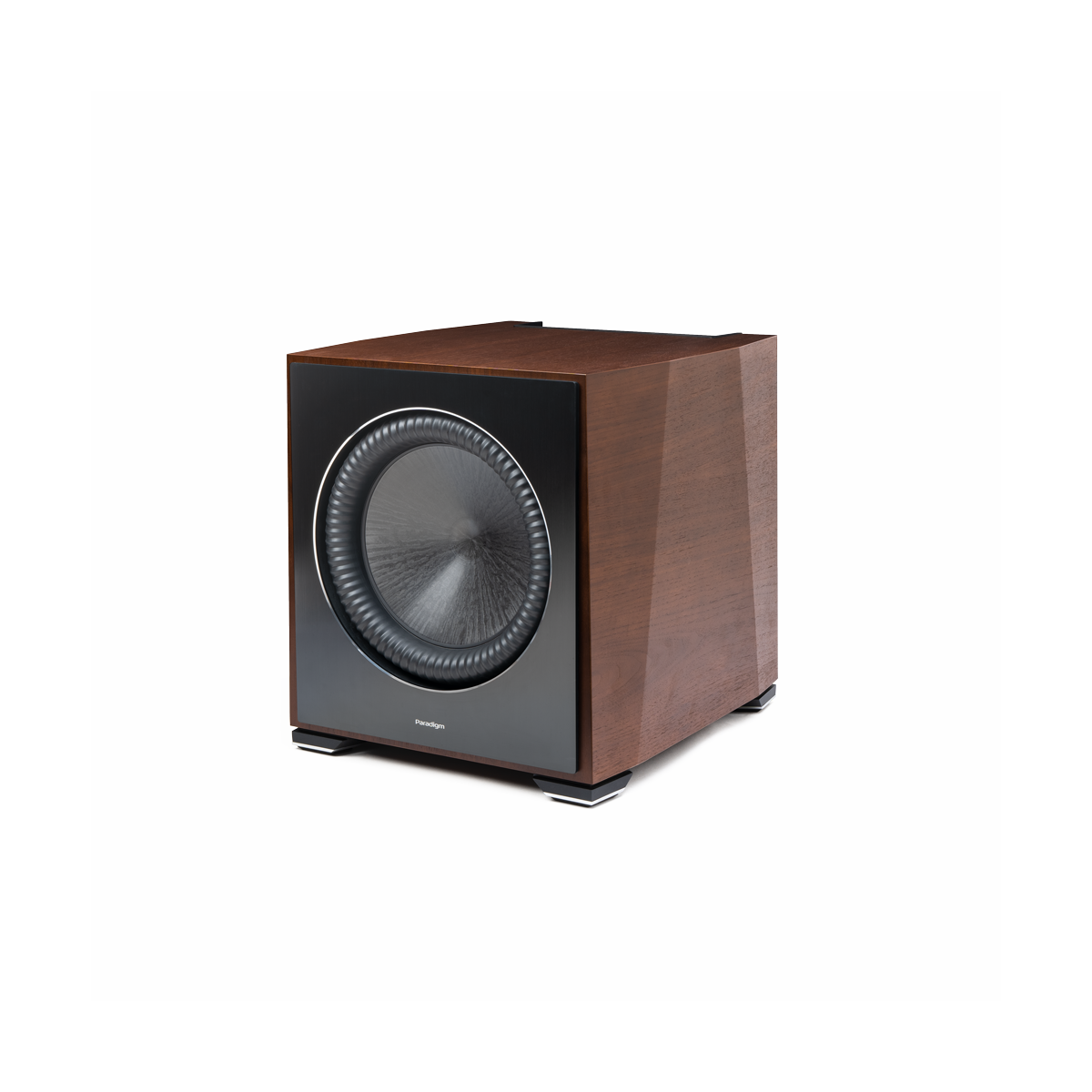

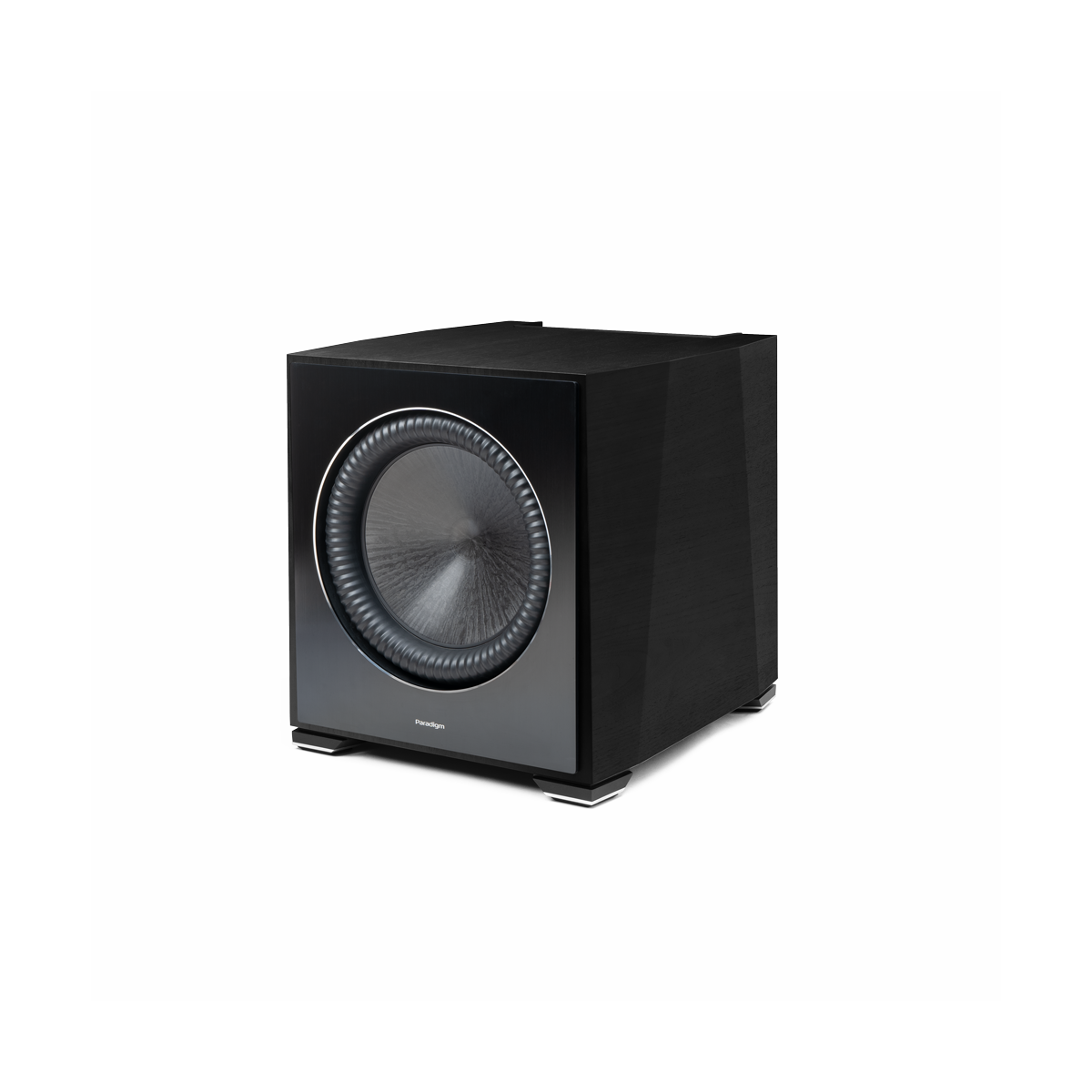

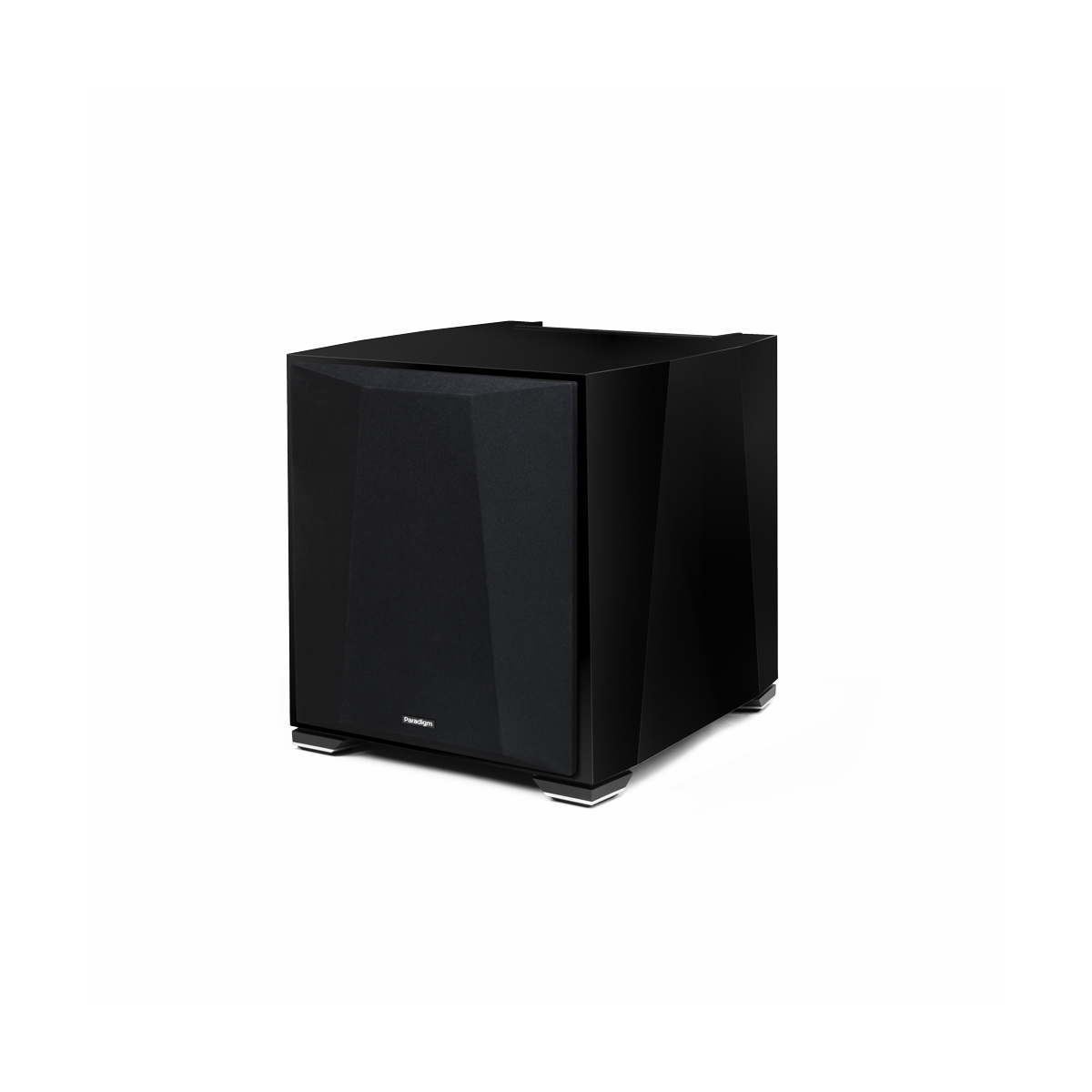

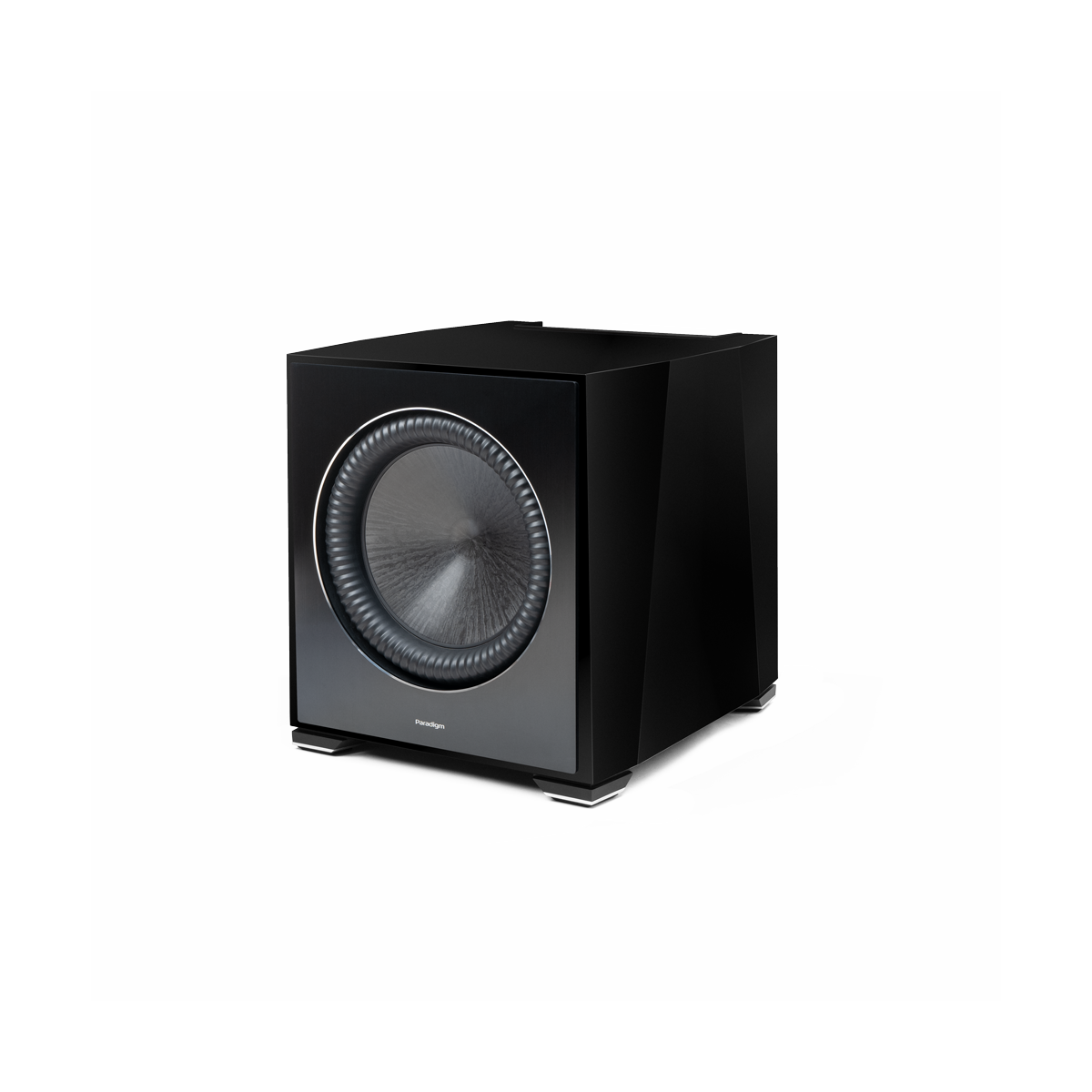

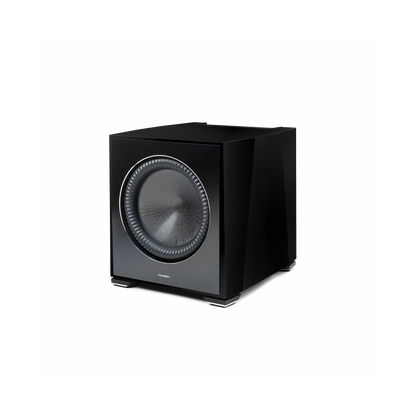

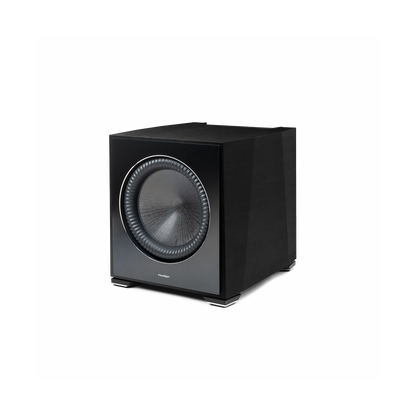

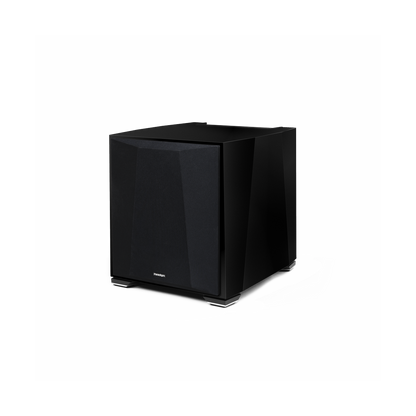

Paradigm XR11 11" Subwoofer

The all-new XR subwoofers are a master class in design and engineering refinement that challenges what is possible from a compact, sealed subwoofer design. Our goal was to push the boundaries of performance while never losing sight of aesthetics by wrapping everything up into a suitable size that won't ever feel out of place.

*Premium finishes to order at extra cost*

SPECIFICATIONS

• Design: 11" (279 mm) Ultra-High-Excursion driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-Fusion™ Bracing and ADVANCED Shock-Mount™, built-in Class-D amplifier, app-controlled via smartphone with Anthem Room Correction (ARC®) included
• Amplifier Features: Auto On/Off, Trigger On/Off
• Room Correction: ARC Genesis (microphone included)
• Frequency Response (On-Axis): ±3 dB from 20 Hz – 140 Hz
• Low Frequency Driver: 11" (279 mm) Ultra-High-Excursion CARBON-X Unibody Bass Driver with Trilinear Suspension System, Active Ridge Technology (ART™), and 1.5" high-temperature voice coil
• Effective Piston Area (Sd): 66 sq in (0.043 sq m)
• Effective Displacement: 183.1 cu in (3 L)
• Low Frequency Response (DIN): 14 Hz
• Amplifier Power: Power measurements underway to ensure compliance with new FTC regulations

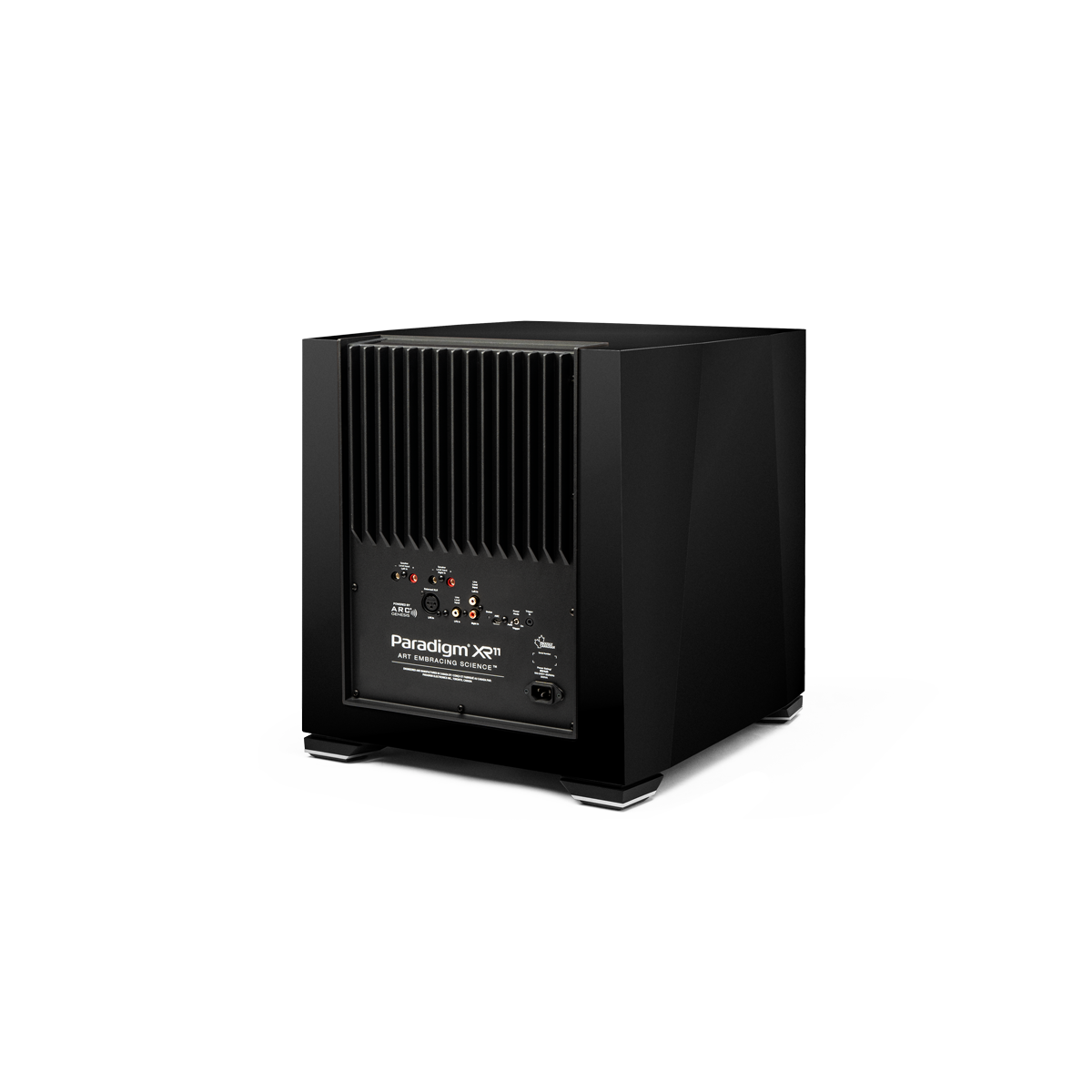

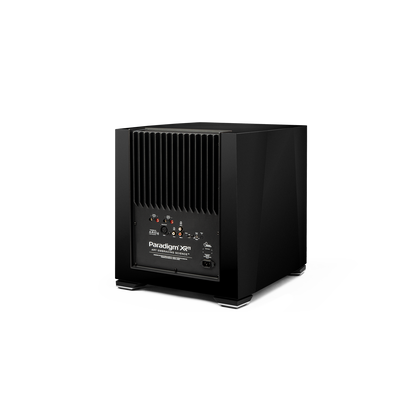

• Unbalanced Inputs: Stereo or Mono (dual RCA jacks), LFE RCA jack
• Balanced Inputs: One balanced XLR (LFE)
• Speaker/High-Level Inputs: Left and right speaker-level inputs
• Input Grounding: Isolated
• Polarity: 0° or 180°
• Phase: Variable 0°–180°
• Dimensions (H × W × D): 41.2 × 38.8 × 42.9 cm (16.2 × 15.3 × 16.9 in)
• Weight: 29 kg (65.1 lb)
• Available Finishes: Piano Black, Midnight Cherry (Gloss); Walnut, Black Walnut (Satin)
