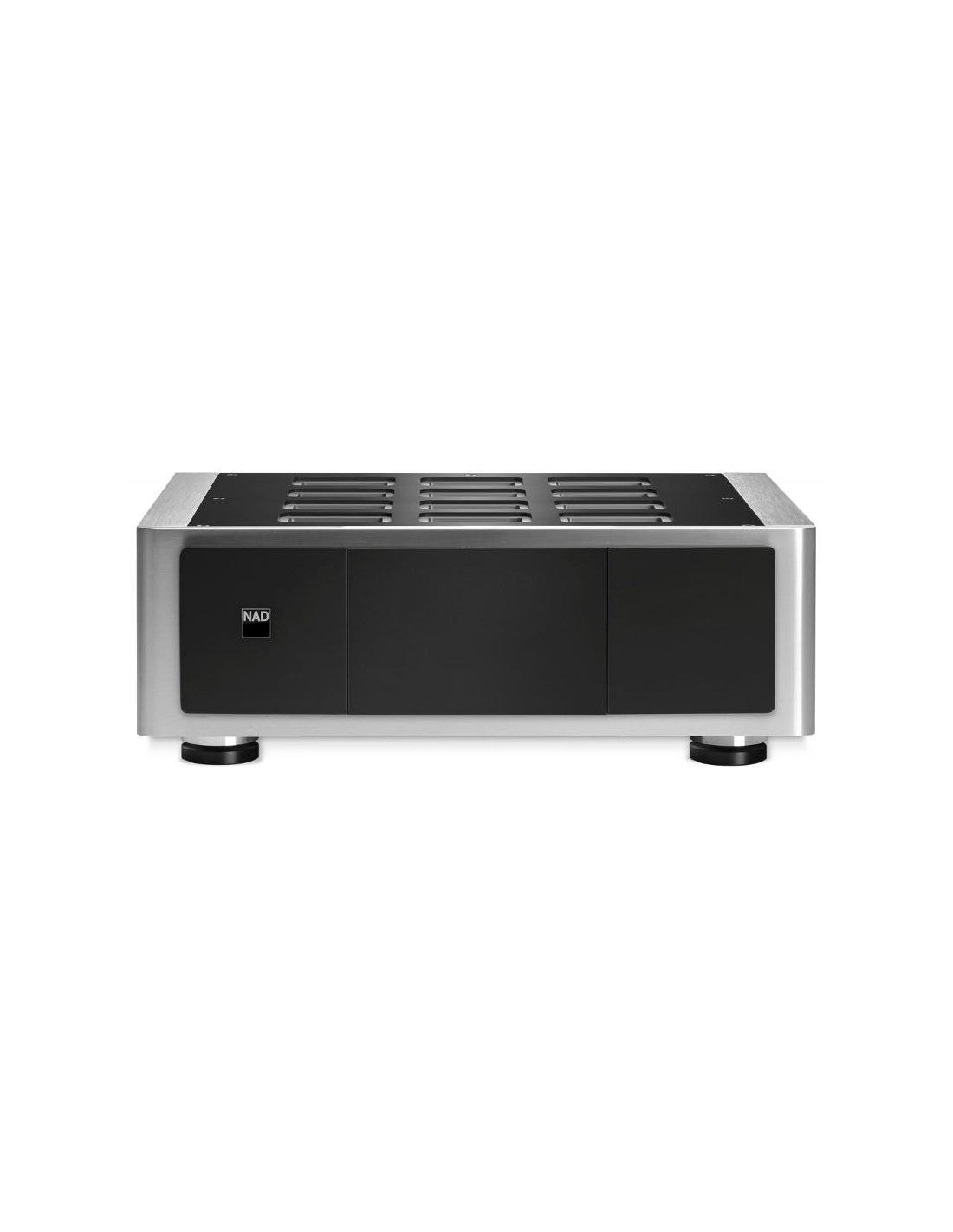

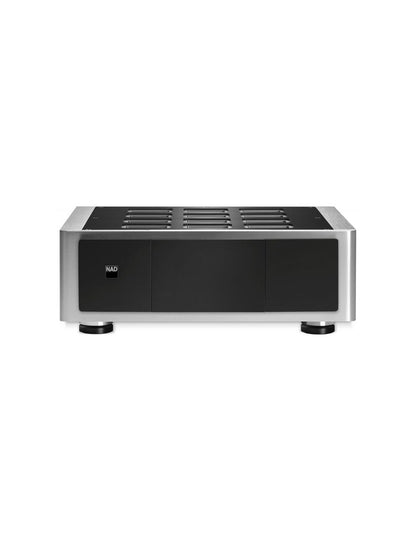

The Masters M28 Seven Channel Power Amplifier epitomises the ultimate in what is possible with today’s amplification techonology. It is one of the very first amplifiers to employ Purifi’s Eigentakt™ amplifier technology.

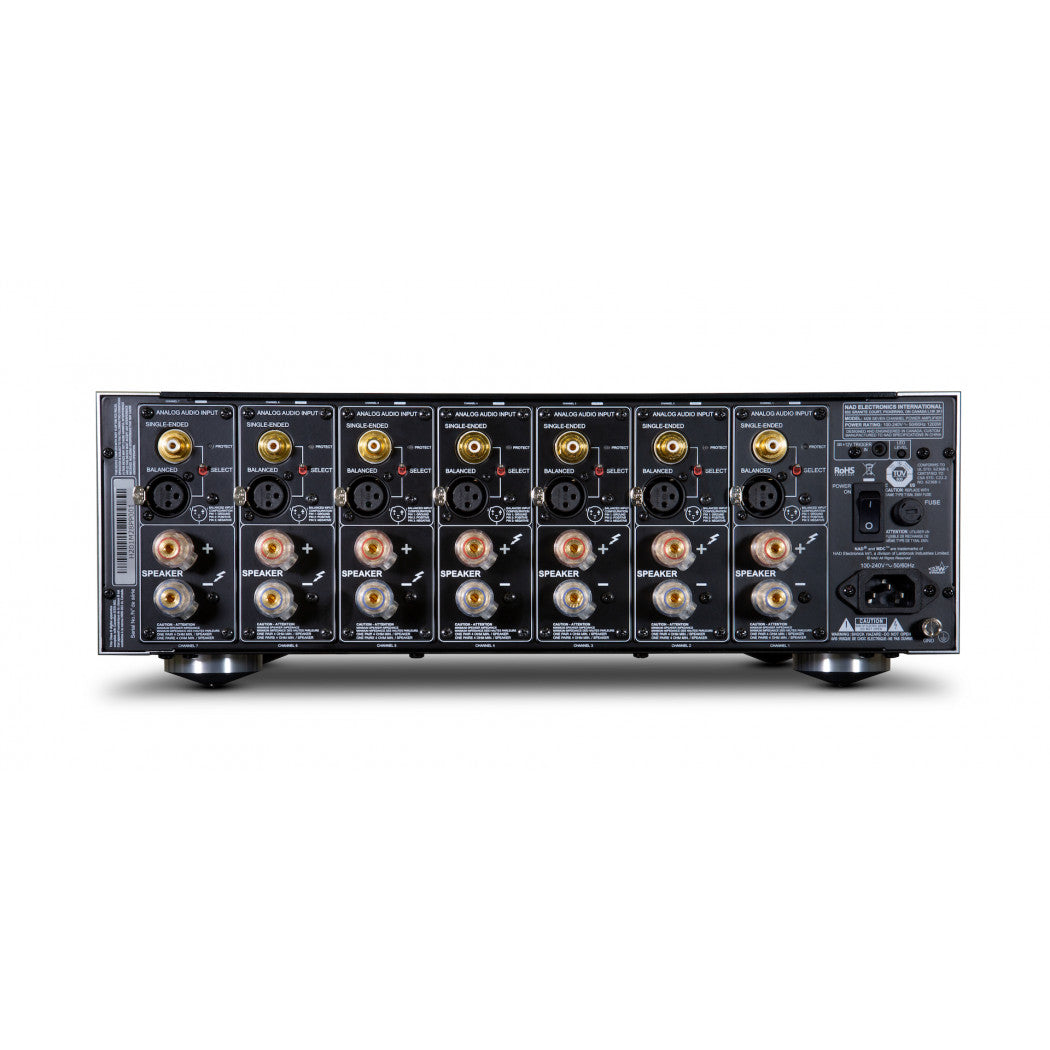

Rated conservatively at 200W per channel (8 ohms) and well over 320W dynamic power (8 ohms; all channels driven), the result is breath-taking, lifelike surround sound performance, be it from the latest action-packed film with tremendous dynamics or a subtle classical piece with delicate and detailed passages. The M28 can accept both balanced and single-ended inputs, and features high-quality binding posts for speaker connection. The compact dimensions of this highly energy-efficient design belie the massive amount of power available for the most demanding music and movies.
- FTC power, two channels
- ≥ 220 W (ref. rated THD, 8 Ohms , 20 Hz – 20 kHz, two channels driven)
≥ 400 W (ref. rated THD, 4 Ohms , 20 Hz – 20 kHz, two channels driven)
- Rated power, all channels
- ≥ 200 W (ref. rated THD, 8 Ohms , 20 Hz – 20 kHz, all channels driven)
≥ 340 W (ref. rated THD, 4 Ohms , 20 Hz – 20 kHz, all channels driven)
- Rated THD (250 mW to rated power, CCIF IMD, DIM 100)
- ≤0.003 % (ref. 20 Hz – 20 kHz)
- IHF dynamic power
- 280 W 8 Ohms, (all channels driven)
560 W 4 Ohms, (one channel driven)
- Damping factor
- 1.3 V (ref. rated power)
- Input impedance
Input Impedance (r and c)
- 47 kΩ (Balanced)
23 kΩ (Single-ended)
- >118dB (ref. rated power)
- Damping Factor
- >750dB (ref. 8 Ohms, 50Hz and 1kHz)
- Frequency Response
- ±0.1dB (ref. 20Hz-20kHz)
- -2.5dB at 3Hz and 100kHz
- Input Impedance
- 47 kilohm (Balanced)
- Signal/noise ratio
- > 102dB (A-weighted ref. 1W, Balanced)
> 97 dB (A-weighted ref. 1W, Single-ended)
> 124 dB (A-weighted ref. rated power, Balanced)
> 120 dB (A-weighted ref. rated power, Single-ended)
- Frequency response
- ± 0.1 dB (ref. 20 Hz – 20 kHz)
– 3 dB at 3 Hz to 60 kHz
