Paradigm
Founder 90C
Founder 90C
Couldn't load pickup availability
Description

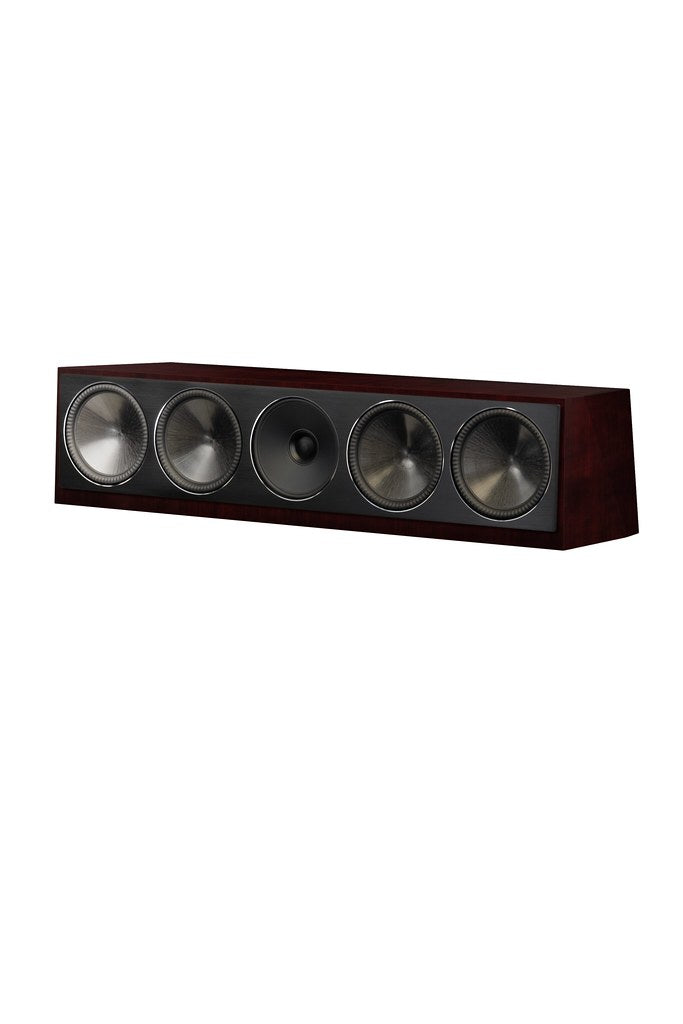

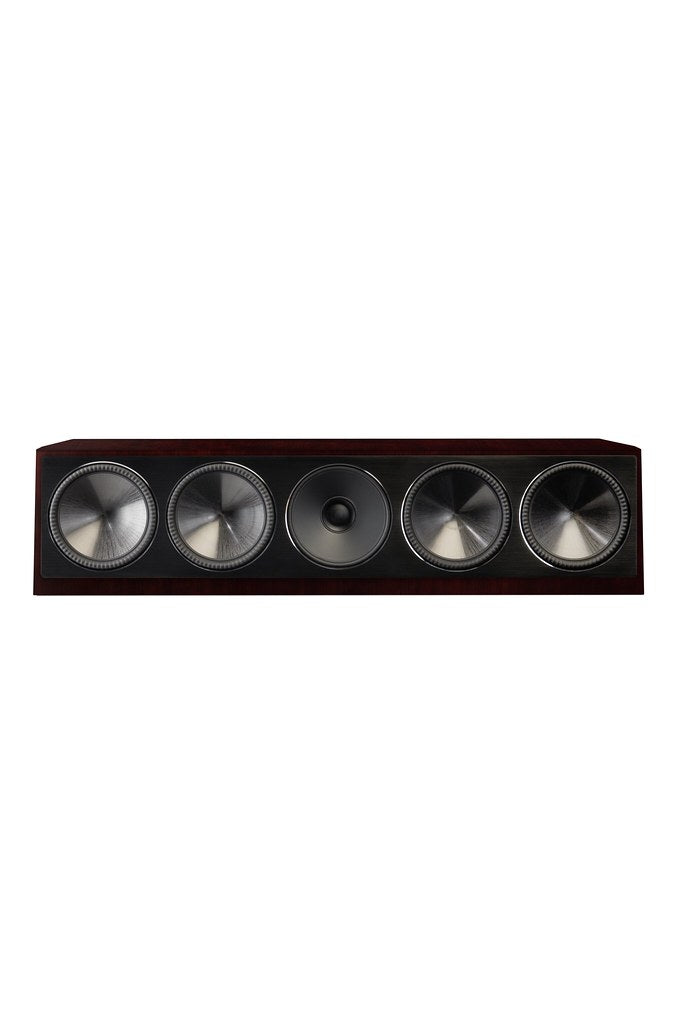

Paradigm Founder 4-driver, 2 passive radiator, 3 way center channel, sealed enclosure
The tweeter is a 1" (25mm) Aluminum Magnesium Ceramic (AL-MAC™) dome with a proprietary Oblate Spherical Waveguide (OSW™) and a Perforated Phase-Aligning (PPA™) Lens.
The midrange is a 6” (152mm) Ultra-High-Excursion AL-MAG™ Cone with Perforated Phase-Aligning (PPA™) Lens, Gen3 Active Ridge Technology (ART™) with Vertical Mounting System, Advanced SHOCKMOUNT™ Isolation, and a 1.5” high-temp multi-layered voice coil with ventilated Apical™ former
Two 7" (177mm) Ultra-HighExcursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) with Vertical Mounting System, Advanced SHOCK-MOUNT™ Isolation, and a 1.5” high-temp multi-layered voice coil with ventilated Apical™ former
Two 7" (177mm) Ultra-High-Excursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) with Vertical Mounting System, Advanced SHOCKMOUNT™ Isolation, Passive
The midrange/ bass driver is mechanically decoupled from the front baffle by an Advanced SHOCK-MOUNT™ Isolation Mounting System. This special mounting hardware uses an elastomer suspension to prevent any transfer of vibration from the driver to the cabinet, and from the cabinet to the driver. By eliminating resonance, the driver is free to render sound purely and efficiently with no audible distortion and maximum clarity.

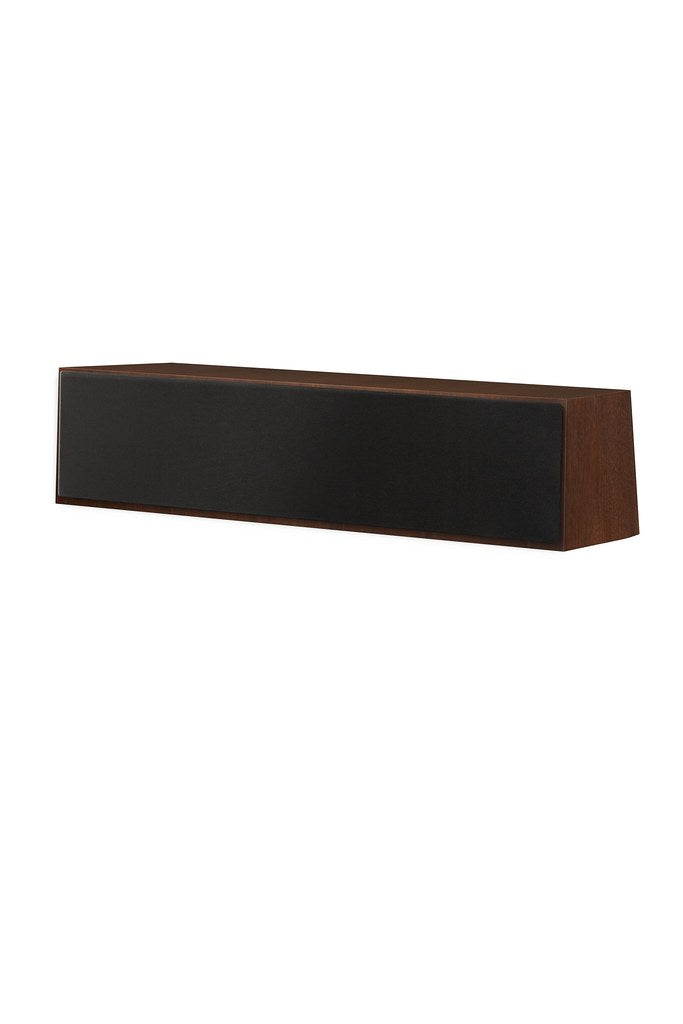

The cabinets are offered in a variety of beautiful premium-grade finishes: Walnut and Black Walnut have a smooth satin finish with distinctive wood figuring. Our exclusive Midnight Cherry and Piano Black feature a luxurious hand-rubbed, high-gloss finish.
- Low frequency extension 37 Hz (DIN)
- Sensitivity Room/Anechoic 94dB / 91 dB
- +/- 2dB from 55Hz to 17kHz
- Impedance 8Ω
- Weight 48Ibs (21.8kg) each
- Dimensions: 8.9" H x 35.7" W x 12.9" D
- Available in Midnight Cherry, Piano Black, Walnut and Black Walnut
- Crafted in Canada
