Paradigm Founder 70LCR Bookshelf Speakers

*(Individually priced)

Paradigm Founder 4-driver, 3 way LCR, sealed enclosure

The Tweeter is a Coaxial 1" (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled, Patent Pending Dual Gap Motor Structure

Coaxial 6” (152mm) AL-MAG™ Cone with SHOCK-MOUNT™ Isolation Mounting System, a 2” high-temp multi-layered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor

Two 5.5" (127mm Ultra-HighExcursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™), and a 1.5” high-temp multi-layered voice coil with ventilated Apical™ former

The midrange/ bass driver is mechanically decoupled from the front baffle by an Advanced SHOCK-MOUNT™ Isolation Mounting System. This special mounting hardware uses an elastomer suspension to prevent any transfer of vibration from the driver to the cabinet, and from the cabinet to the driver. By eliminating resonance, the driver is free to render sound purely and efficiently with no audible distortion and maximum clarity.

SPECIFICATIONS

• Type: 3-way, 4-driver LCR bookshelf speaker

• Enclosure: Sealed (acoustic suspension)

• Tweeter: 1" (25 mm) AL-MAC™ ceramic dome with OSW™ waveguide and PPA™ lens

• Midrange: 6" (152 mm) AL-MAG™ cone with SHOCK-MOUNT™ isolation

• Woofers: Dual 5.5" (140 mm) CARBON-X™ woofers with Gen3 ART™ surrounds

• Frequency Response (On-Axis): 79 Hz – 23 kHz (±2 dB)

• Frequency Response (30° Off-Axis): 79 Hz – 17 kHz (±2 dB)

• Low Frequency Extension (DIN): 47 Hz

• Sensitivity: 92 dB (room), 89 dB (anechoic)

• Nominal Impedance: 8 ohms

• Recommended Amplifier Power: 15–220 watts

• Maximum Input Power: 220 watts

• Crossover Frequencies: 700 Hz, 2.2 kHz

• Bi-wire/Bi-amp Capable: Yes

• Dimensions (H × W × D): 204 × 480 × 313 mm (8.0 × 18.9 × 12.3 in)

• Weight: 13.6 kg (30 lb)

• Available Finishes: Piano Black, Walnut, Black Walnut, Midnight Cherry

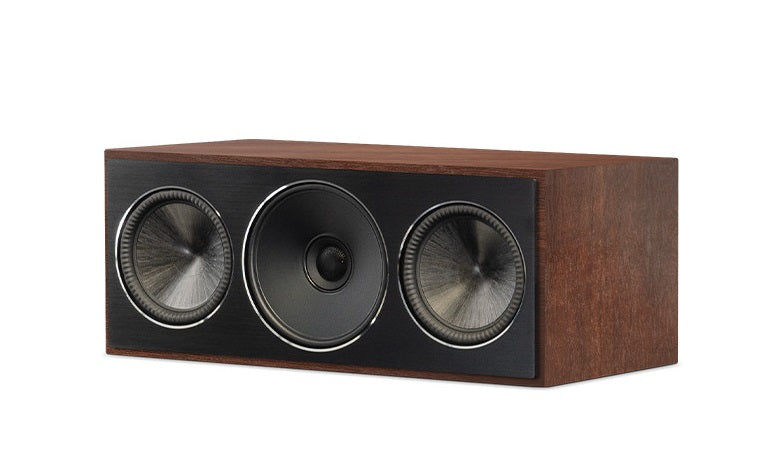

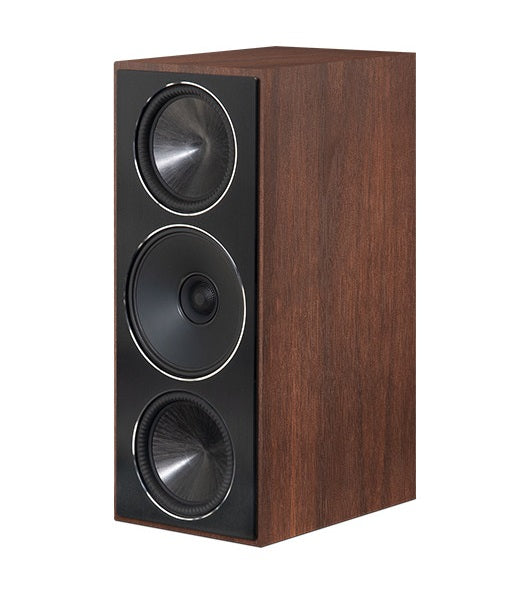

• Placement: Can be used vertically as a left/right speaker or horizontally as a center channel.
