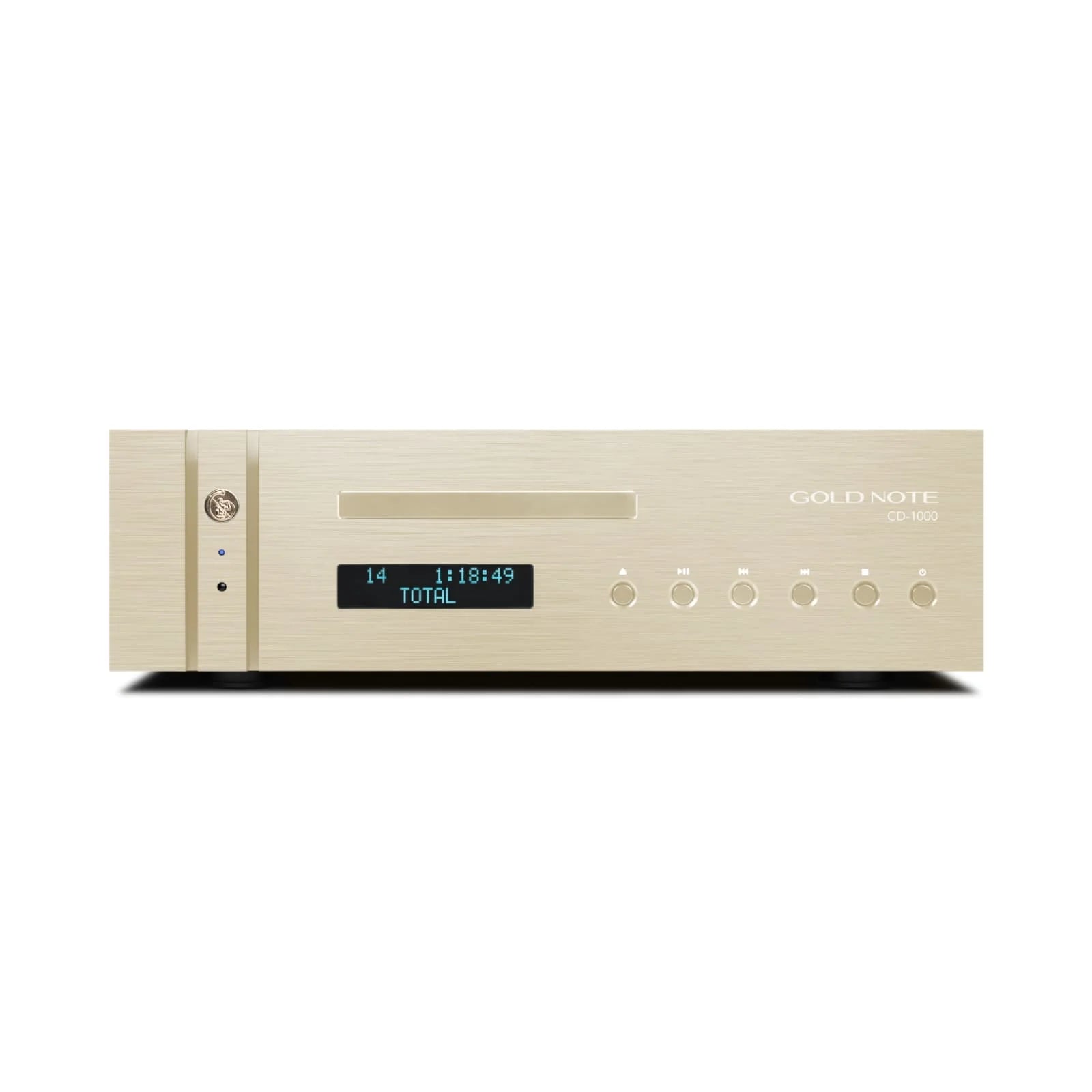

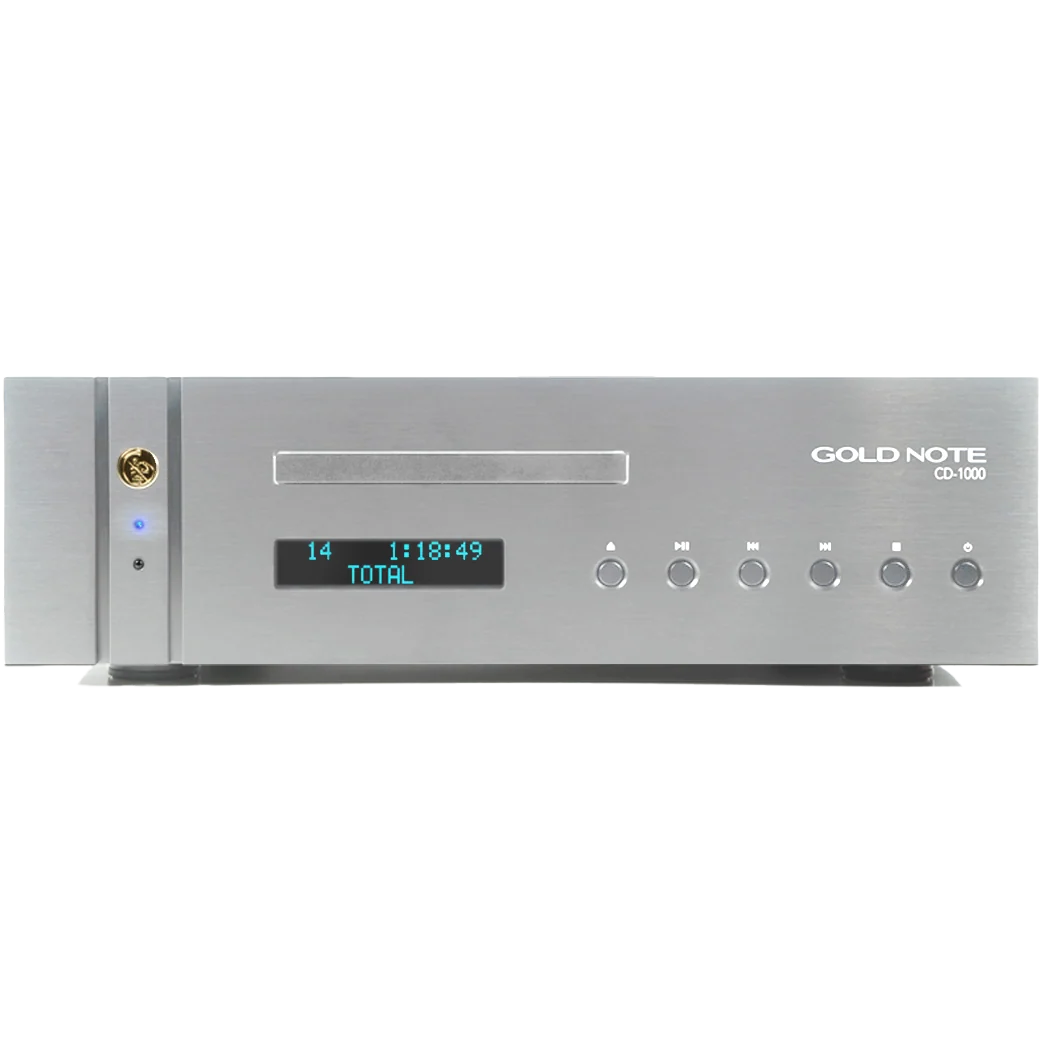

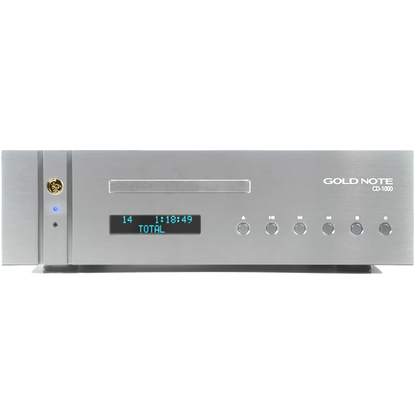

The CD-1000 MkII Deluxe, housed in a beautiful brushed aluminium chassis, integrates a digital and an analogue stage into a single, elegant device. It is designed to play music from CD as well as audio from a TV, DVD player or other digital source connected via optical or coaxial input. The CD-1000 MkII Deluxe delivers a natural, detailed and powerful sound, and can be easily integrated into any Hi-End stereo system. It supports Gapless playback and is equipped with a high-quality 24-bit/192kHz digital converter with S/PDIF coaxial and TOS optical digital inputs. The aluminium JPL-2800 transport mechanism, made by Stream Unlimited in Austria, provides high stability and precise disc reading, minimizing fluctuations and loss of definition. The CD-1000 MkII Deluxe also incorporates Gold Note's Zero-Clock™ technology, designed to effectively reduce jitter, and features a digital volume control that can be used to drive a power amplifier or active speakers directly.
The CD-1000 MkII Deluxe is equipped with the integrated Burr-Brown PCM1792A DAC, providing 24-bit/192kHz digital-to-analogue conversion. Unlike the Deluxe DSD version, the Deluxe does not have a USB-B input; its digital inputs are 1 × S/PDIF coaxial and 1 × TOS optical.
The CD-1000 MkII Deluxe can be paired with external units that allow further improvement of its audio performance:
– TUBE-1012 – Class-A valve output stage developed with 12 valves
– TUBE-1006 – Class-A valve output stage developed with 6 valves
– PSU-1250 – Super-inductive external power supply dedicated to the Gold Note Series 1000
– PSU-1000 – External inductive Dual-Mono power supply
SPECIFICATIONS
-
Type: CD player with integrated D/A converter
-
DAC: Burr-Brown PCM1792A
-
DAC resolution: 24-bit / 192 kHz
-
Frequency response: 20 Hz–20 kHz ±0.3 dB
-
THD: 0.001% max
-
Signal-to-noise ratio: 128 dB
-
Dynamic response: 127 dB
-
Volume control: Digital, switchable On/Off
-
Transport mechanism: Aluminium JPL-2800 by Stream Unlimited
-
Speed fluctuation: 0.0001%
-
Digital filter/clock: Gold Note Zero-Clock™ technology
-
CD format: Red Book
-
Disc compatibility: CD, CD-R, CD-RW
-
Gapless playback: Yes
-
Remote: Multifunction IR remote included

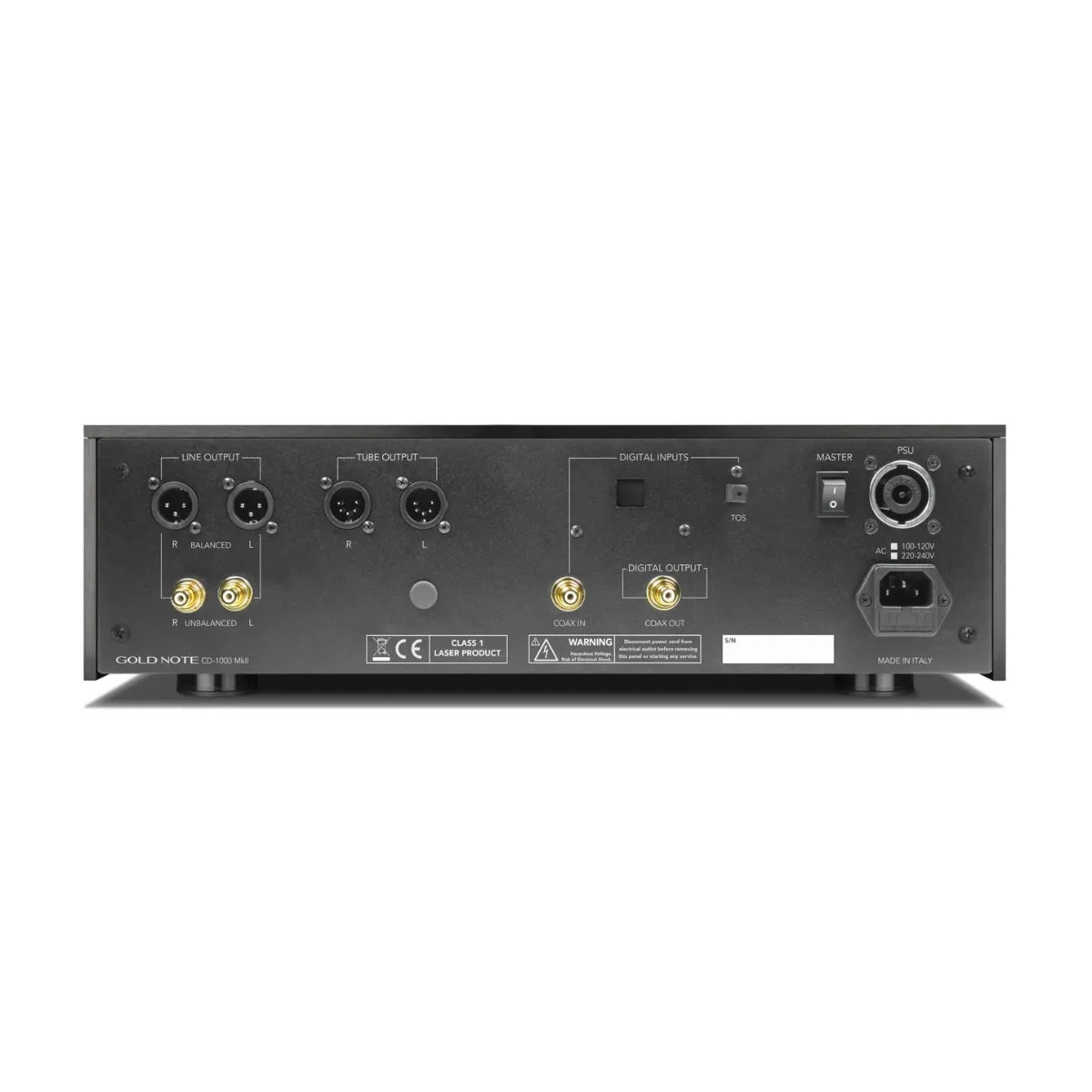

Inputs
-
1 × RCA S/PDIF coaxial — up to 24-bit/192 kHz
-
1 × TOS optical — up to 24-bit/192 kHz
-
USB-B: No — USB-B is only on the Deluxe DSD version
Outputs
-
1 × RCA stereo unbalanced — 2 Vrms
-
1 × XLR stereo balanced — 2 Vrms
- 1 × TUBE-1012 output
-
1 × RCA S/PDIF digital output — 75 Ω
-
Output impedance: 50 Ω
Power
-
Power consumption: 30 W
-
Power supply: Dual-Mono
-
Mains: 100–120 V or 220–240 V, 50/60 Hz
-
Fuse: 1A F/T (220–240 V); 2A F/T (100–120 V)
Dimensions / Weight
-
Width: 430 mm
-
Height: 135 mm
-
Depth: 375 mm
-
Weight: 12 kg net / 16 kg boxed
Finishes
-
Black: Brushed anodised aluminium
-
Silver: Brushed anodised aluminium
-
Gold: Brushed anodised aluminium
Optional upgrades
-
PSU-1250: 300 W external inductive Dual-Mono power supply
-
PSU-1000: 200 W external inductive Dual-Mono power supply
-
TUBE-1006: Class-A 6-tube output stage
-
TUBE-1012: Class-A 12-tube output stage
