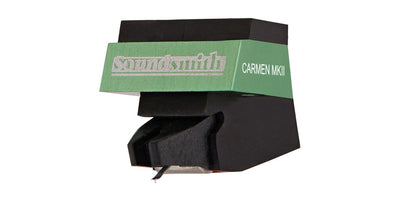

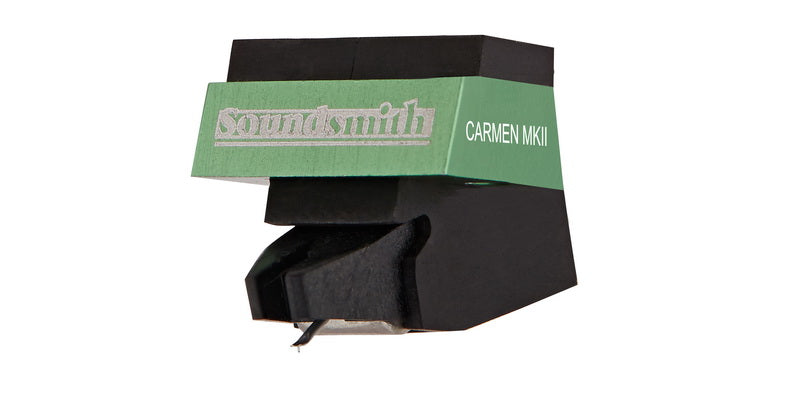

Soundsmith

Carmen Mk. II

  • Cartridge Type: Fixed Coil
  • Stylus Type: Elliptical
  • Output: High
  • Available As Dual Coil Mono: Yes
  • Stylus: Nude Elliptical, 0.120mm SQ
  • Radius of curvature: 6 x 17 μm
  • Cantilever: Aluminum Alloy
  • Recommended tracking force: 12mN / 1.2 gm (high), 14mN / 1.4 gm (medium)
  • Effective tip mass: 0.35 mg
  • Compliance: 28 μm/mN (high), 22 μm/mN (medium)
  • Frequency response: 20-20,000 Hz ± 2.5 dB
  • Channel separation (stereo only): 1000 Hz >26 dB, 50-15,000 >20 dB
  • Channel difference: <1.6 dB (Stereo), <1.0 dB (Mono)
  • Output voltage: 2.12 mV
  • Cartridge weight: 6.8 grams
  • Loading: ≥ 47 kΩ
Regular price $1,299.95
- +
  • Cartridge Type: Fixed Coil
  • Stylus Type: Elliptical
  • Output: High
  • Available As Dual Coil Mono: Yes
  • Stylus: Nude Elliptical, 0.120mm SQ
  • Radius of curvature: 6 x 17 μm
  • Cantilever: Aluminum Alloy
  • Recommended tracking force: 12mN / 1.2 gm (high), 14mN / 1.4 gm (medium)
  • Effective tip mass: 0.35 mg
  • Compliance: 28 μm/mN (high), 22 μm/mN (medium)
  • Frequency response: 20-20,000 Hz ± 2.5 dB
  • Channel separation (stereo only): 1000 Hz >26 dB, 50-15,000 >20 dB
  • Channel difference: <1.6 dB (Stereo), <1.0 dB (Mono)
  • Output voltage: 2.12 mV
  • Cartridge weight: 6.8 grams
  • Loading: ≥ 47 kΩ
