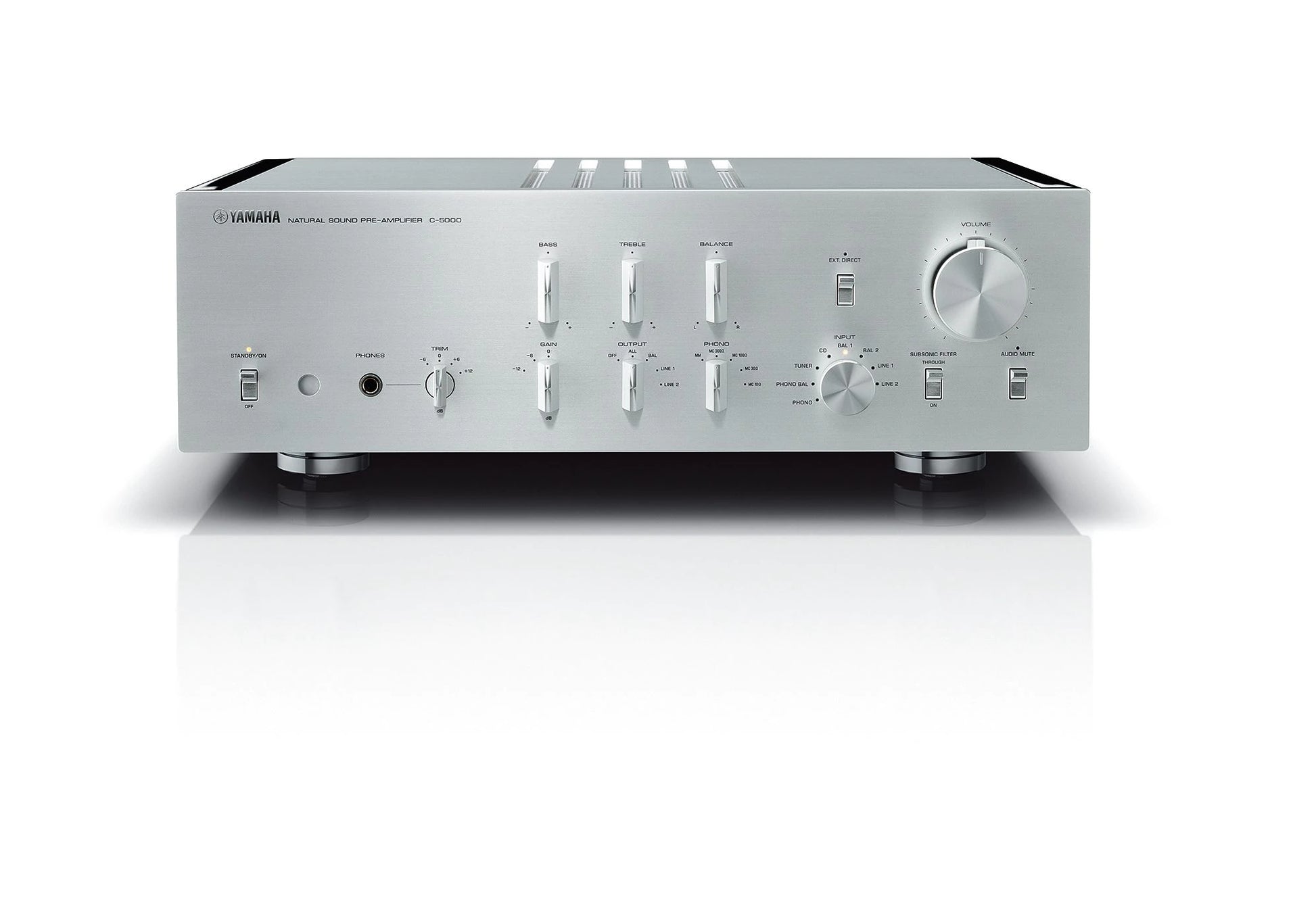

In pursuit of the intangible musical quality that breathes life into high-fidelity audio, the world's largest sound company presents the C-5000 pre-amplifier. From the concert stage to the home, Yamaha has drawn on its vast musical history to create an instrument capable of faithfully reproducing every nuance and emotion in the performance.
- Perfectly balanced signal transmission
- Floating balanced pre-amp
- Symmetrical, folding-book circuit design
- Low-impedance design
- Rigid and precise design
- Dual Toroidal Transformer
SPECIFICATIONS
-
Type: Preamplifier
-

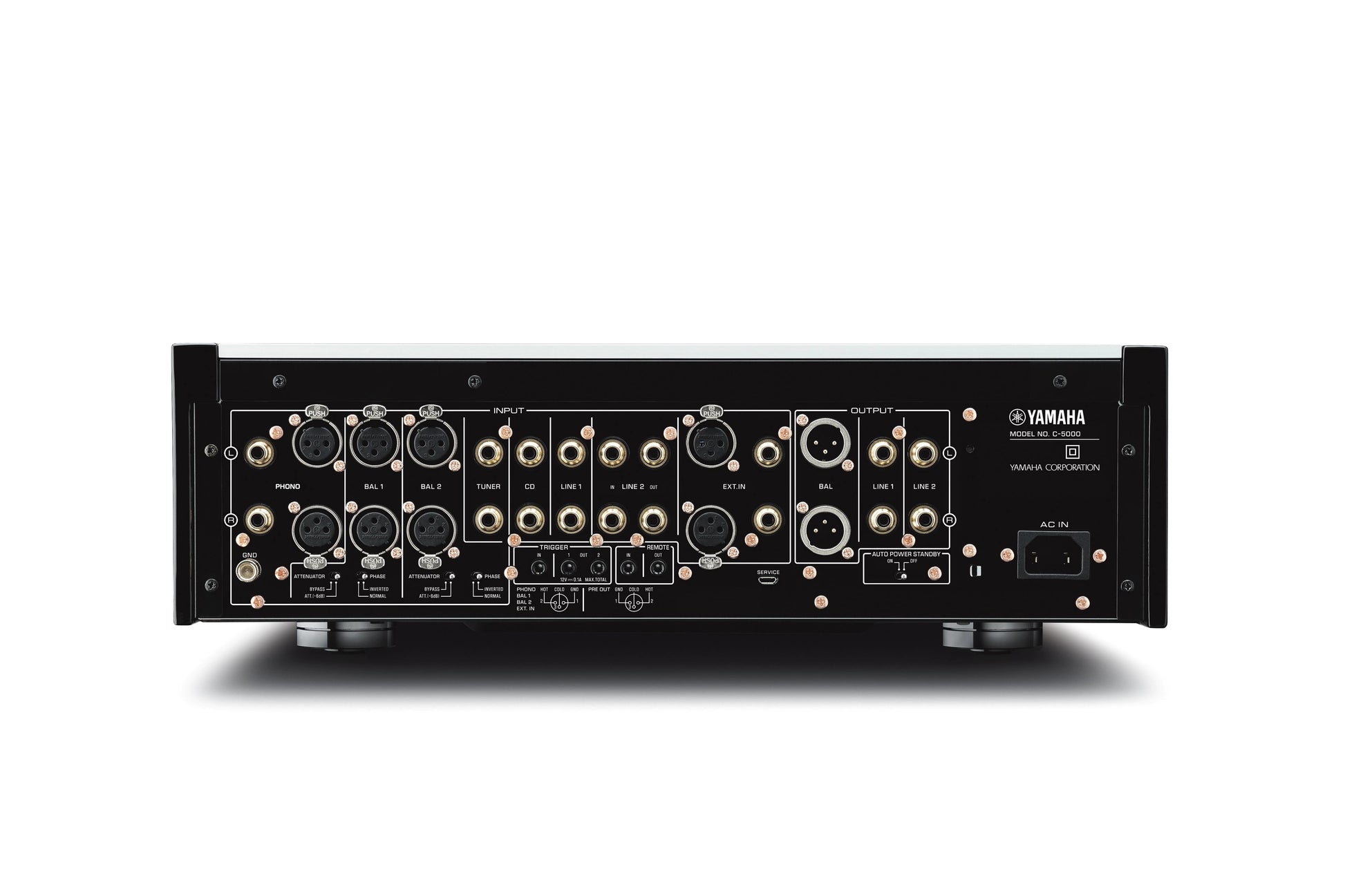

Input terminals:
- RCA × 6 — PHONO, TUNER, CD, LINE 1, LINE 2 IN, EXT IN
- Balanced XLR × 4 — PHONO, BAL 1, BAL 2, EXT IN
- Trigger In × 1 — Slave mode
- Remote In × 1
-
Output terminals:
- RCA × 3 — LINE 2 OUT, LINE 1, LINE 2
- Balanced XLR × 1 — BAL
- Trigger Out × 2 — Master mode
- Remote Out × 1
-
Rated output voltage (200 mV input, 20 Hz–20 kHz, 0.01% THD):
- BAL BYPASS: 2 Vrms / 150 Ω
- BAL ATT: 1 Vrms / 150 Ω
- LINE 1 / LINE 2: 1 Vrms / 150 Ω
- LINE 2 REC OUT: 200 mVrms / 1.2 kΩ
-
Maximum output voltage (1 kHz, 0.05% THD):
- BAL: 6 Vrms
- LINE 1 / LINE 2: 3 Vrms
- LINE 2 REC OUT: 3 Vrms
-
Input sensitivity / impedance:
- BAL: 200 mVrms / 52 kΩ
- LINE, etc.: 200 mVrms / 47 kΩ
- PHONO MC 300 Ω: 100 µVrms / 300 Ω
- PHONO MC 100 Ω: 100 µVrms / 100 Ω
- PHONO MC 30 Ω: 100 µVrms / 30 Ω
- PHONO MC 10 Ω: 100 µVrms / 10 Ω
- PHONO MM BAL/UNBAL: 2.5 mVrms / 52 kΩ (47 kΩ)
- EXT IN: 1 Vrms / 20 kΩ
-
Maximum input signal voltage:
- BAL: 2.8 Vrms
- BAL ATT: 5.6 Vrms
- LINE, etc.: 2.8 Vrms
- PHONO MC: 2 mVrms
- PHONO MM: 50 mVrms
- EXT IN: 5.6 Vrms
-
Frequency response: +0 / −3 dB, 10 Hz–100 kHz; +0 / −0.3 dB, 20 Hz–20 kHz
-
THD + Noise:
- 0.0100% — BAL/LINE, etc. to BAL/LINE, 20 Hz–20 kHz
- 0.0200% — MM/MC BAL/UNBAL to LINE 2 REC OUT, 20 Hz–20 kHz
-
Channel separation:
- ≥110 dB — BAL/LINE, etc.
- ≥80 dB — MC, BAL/UNBAL
- ≥98 dB — MM, BAL/UNBAL
-
Function separation:
- ≥110 dB — BAL/LINE, etc.
- ≥75 dB — MC, BAL/UNBAL
- ≥95 dB — MM, BAL/UNBAL
-
Signal-to-noise ratio:
- ≥110 dB — BAL/LINE, etc.
- ≥80 dB — MC, 300 Ω, BAL/UNBAL
- ≥98 dB — MM, BAL/UNBAL
-
Residual noise: 3 µV — BAL/LINE OUT
-
Tone controls:
- Bass: ±9 dB at 30 Hz; turnover frequency 350 Hz
- Treble: ±9 dB at 20 kHz; turnover frequency 3.5 kHz
-
Headphone output: 35 mW + 35 mW, 1 kHz, 32 Ω, 0.2% THD
-
RIAA equalizer deviation: ±0.5 dB — MC/MM BAL/UNBAL
-
Subsonic filter: 15 Hz, −3 dB
-
Power consumption: 60 W
-
Standby power: 0.2 W
-
Auto Power Standby: Yes
-
Dimensions (W × H × D): 435 × 142 × 451 mm
-
Weight: 19.1 kg
