The C426Be is Revel's PerformaBe series 3-Way Quadruple 6.5" Center Channel Loudspeaker.

Regular price $7,275.00
- +

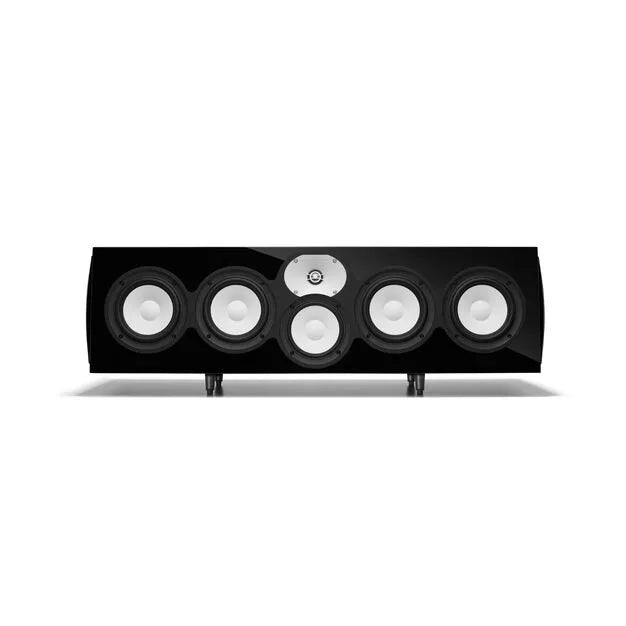

The C426Be is Revel's PerformaBe series 3-Way Quadruple 6.5" Center Channel Loudspeaker.

The Revel C426Be joins our award-winning PerformaBe series as a high-performance center channel loudspeaker for use in a multichannel home theater environment. As part of the PerformaBe loudspeaker line, the C426Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic magnets.

The powerful tweeter and 5th-generation ceramic-coated, cast-aluminum Acoustic Lens waveguide seamlessly integrate with the directivity of the companion midrange driver resulting in greater efficiency, improved dynamic range, reduced distortion, and increased power handling compared to aluminum or titanium tweeters.

The 5.25-inch (130mm) midrange and quadruple 6.5-inch (165mm) aluminum cone woofers utilize Deep Ceramic Composite (DCC) cones for improved performance. DCC is a plasma electrolytic oxidation process that uses a plasma discharge to create a coarse ceramic coating on both sides of the aluminum core. The deep ceramic layers sandwiching the aluminum core provide constrained layer damping that push cone breakup modes outside of the passband allowing the driver to maintain ideal pistonic motion throughout its range. DCC cones combine with optimized motor magnetics to deliver improved mid- and low-frequency performance.

PerformaBe crossover networks utilize all film capacitors and air core inductors in the midrange and tweeter circuits. These premium components allow Revel's world-class engineers to extract nuances and details from music that would otherwise be lost. Combined with traditional Revel high-order crossover slopes and proprietary Acoustic Lens waveguide geometry, transducer integration is seamless.

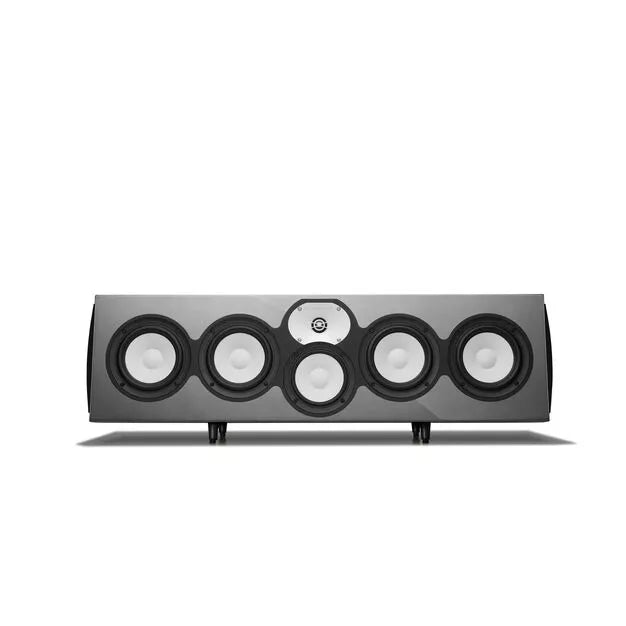

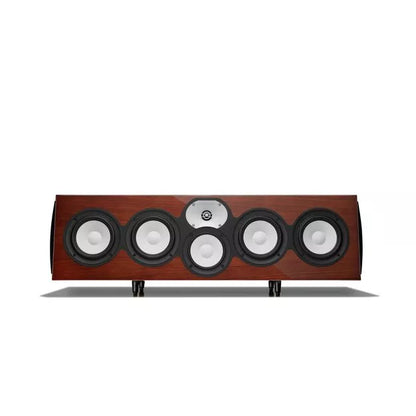

C426Be side panels are painted in stylish metallic black. The loudspeakers are available in a choice of four high-gloss finishes for seamless integration into any décor: Black, White, Walnut, and Metallic Silver.

C426Be Highlights

  • 1-inch Beryllium Dome Tweeter
  • 5th-generation Acoustic Lens Waveguide
  • Deep Ceramic Composite (DCC) Cone Midrange and Woofers
  • High-order Crossovers with Film Capacitors and Air Core Inductors
  • Magnetically Attached Grilles
  • 4 Premium High-gloss Finishes Available

General Specifications

Type 3-way quadruple 6.5" Center channel loudspeaker
Low-frequency transducer Four 6.5" (165mm) Deep Ceramic Composite (DCC) aluminum cones with cast frames
Midrange transducer 5-1/4" (130mm) Deep Ceramic Composite (DCC) aluminum cone, with cast frame
High-frequency transducer 1" (25mm) Beryllium dome with acoustic lens wave guide
Recommended amplifier power range 50-300 Watts RMS
Frequency response 38Hz-40kHz (-6 dB)
Low-frequency extension 35 Hz (-10 dB); 38 Hz (-6 dB); 41 Hz (-3 dB)
Nominal impedance 8 ohms
Sensitivity (2.83V/1m) 90 dB
Crossover frequencies 210 Hz; 2.1 kHz

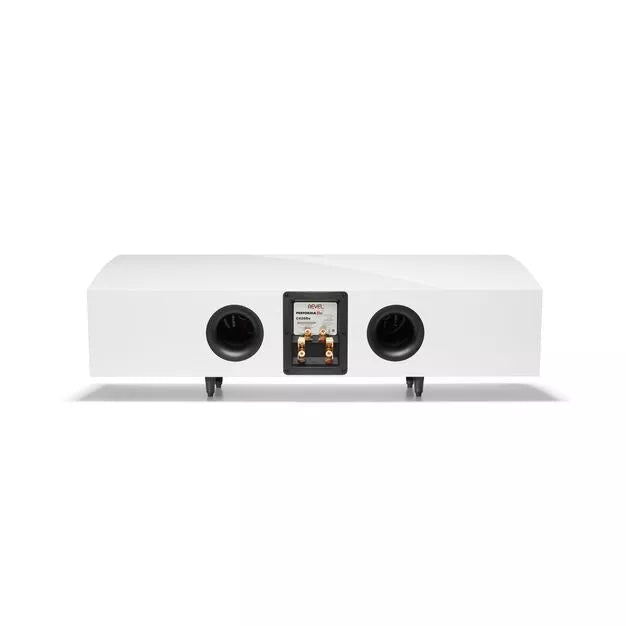

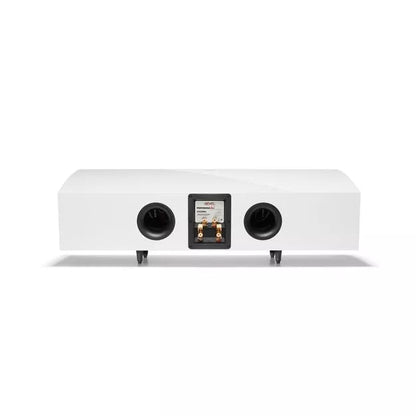

Enclosure type Bass-reflex via 2 rear-mounted ports
Inputs Dual gold-plated binding posts with shorting straps
Available high-gloss finishes Black, White, Metallic Silver, and Walnut
Dimensions – with grille (H x W x D) 10.4" x 38.6 " x 14" (263mm x 979.7mm x 358mm)
Product Weight 61lb (27.7kg)
