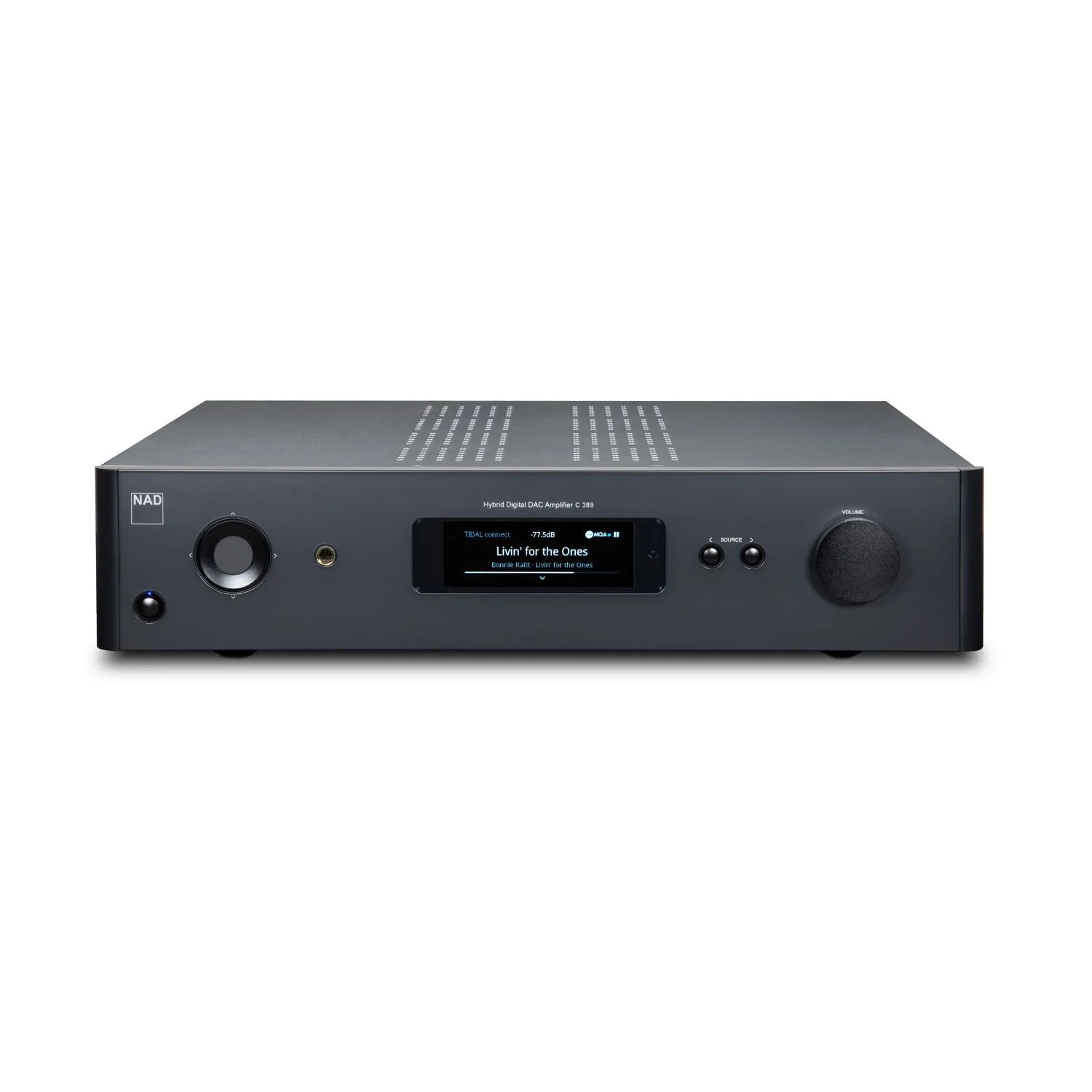

The NAD C 389 HybridDigital DAC Amplifier delivers award-winning performance, powerful HybridDigital amplification, and flexible upgradeability for modern music systems. Its 130-Watt-per-channel design and refined digital architecture bring exceptional clarity and control to every track. With dual MDC2 slots, the C 389 can be expanded with high-resolution BluOS streaming and Dirac Live Room Correction. This is the standard C 389 without the optional MDC2 BluOS-D module. HDMI eARC, a precise MM phono stage, and versatile digital and analogue inputs complete a refined, future-ready foundation for everyday listening.
Dirac Live® Limited Bandwidth licence and calibration microphone for room correction up to 500Hz — MDC2 BluOS-D card required.
FEATURES
- 130 watts per channel of HybridDigital UcD amplification
- Advanced DAC architecture for detailed, low-noise playback
- Dual MDC2 expansion slots for future upgrades
- Optional MDC2 BluOS-D module adds BluOS high-resolution streaming and Dirac Live Room Correction
- Includes Dirac Live® Limited Bandwidth licence and calibration microphone for room correction up to 500Hz — MDC2 BluOS-D card required
- HDMI eARC input for seamless TV integration
- Precise Moving Magnet phono stage with infrasonic filtering
- Two optical and two coaxial digital inputs
- Two sets of analogue inputs with low-noise buffer amplifiers
- Dual subwoofer outputs for flexible bass integration
- Dedicated headphone amplifier and Bluetooth with aptX™ HD support
SPECIFICATIONS
-
Brand: NAD Electronics
-
Model: C 389
-
Type: HybridDigital DAC Amplifier
-
Amplifier Technology: HybridDigital UcD
-
Continuous Power Output 8 Ohms: 130 W per channel
-
Continuous Power Output 4 Ohms: 130 W per channel
-
THD (20 Hz–20 kHz): <0.02% (250 mW to 130 W, 8 ohms and 4 ohms)
-
Signal-to-Noise Ratio: >85 dB (A-weighted)
-
Clipping Power: 150 W
-
IHF Dynamic Power 8 Ohms: 210 W
-
Peak Output Current: >26 A
-
Damping Factor: >150
-
Frequency Response: ±0.3 dB (20 Hz–20 kHz)
-
Channel Separation: >90 dB (1 kHz)
-
Input Sensitivity: 201 mV (for 130 W into 8 ohms)
-
Digital Input Sensitivity: 10.25% FS
-
DAC: ESS Sabre 9028, 32-bit / 384 kHz
-
Analogue Line Inputs: 2 pairs
-
Optical Digital Inputs: 2
-
Coaxial Digital Inputs: 2
-
HDMI: 1 × eARC
-
Phono Input: MM
-
Subwoofer Outputs: 2
-
Pre-Out: Yes
-
Speaker Outputs: A / B
-
Headphone Output: Yes
-
Headphone Output Impedance: 2.2 Ohms
-
Bluetooth: Qualcomm aptX HD
-
MDC2 Expansion Slots: 2
-
BluOS: No — optional MDC2 BluOS-D module
-
Dirac Live: No — requires optional MDC2 BluOS-D module
-
Dimensions (W × H × D): 435 × 100 × 390 mm
-
Dimensions (W × H × D): 17.1 × 3.9 × 15.4 inches
-
Net Weight: 8.7 kg / 19.1 lbs
-
Shipping Weight: Approximately 11 kg / 24.2 lbs
