NAD C 3050

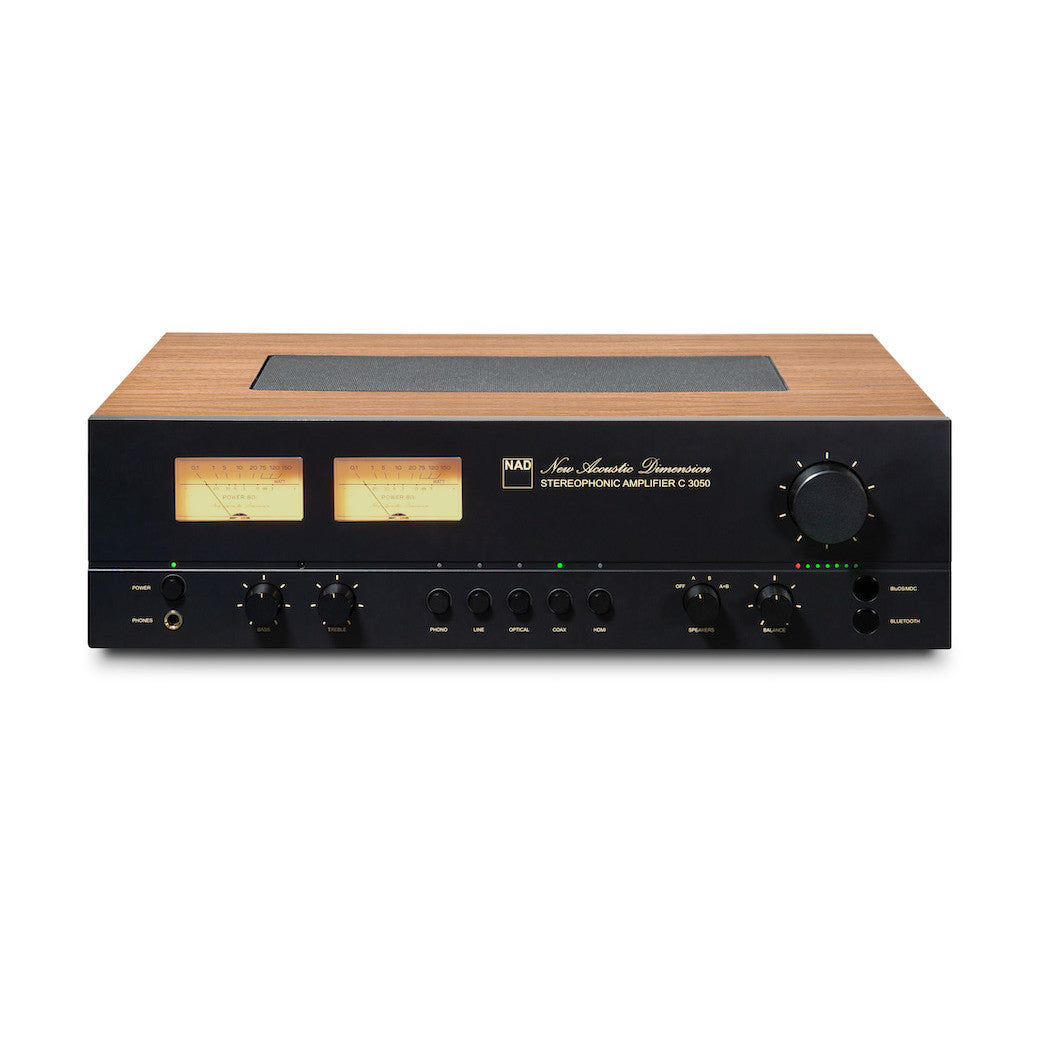

In the C 3050 Stereophonic Amplifier, NAD’s 50-year history of innovation meets the future of hi-fi. With its dual VU meters, push-button input selectors, walnut-finished vinyl-clad cabinet, and 1970s cursive-style branding, the C 3050 recalls the components that helped a generation of music-lovers discover the joys of great audio. With its 100-watt-per-channel HybridDigital UcD amplifier and Texas Instruments high-resolution differential DAC, the C 3050 delivers sound that will thrill today’s discerning listeners. And thanks to NAD’s MDC2 future-proofing technology, C 3050 owners can add leading-edge capabilities like BluOS high-resolution multi-room streaming and Dirac Live room correction.

*The NAD C 3050 is available with BluOS @ $2,399.00 and without @ $1 899.00*

Specifications:

LINE INPUT, PRE-OUT

• THD (20 Hz – 20 kHz)
• <0.005 % at 2V out
• Signal-to-Noise Ratio
• >95 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
• Channel separation
• >100 dB (1 kHz)
• >90 dB (10 kHz)
• Input impedance (R and C)
• 28 kohms + 360 pF
• Maximum input signal
• >4.5 Vrms (ref. 0.1 % THD)
• Output impedance
• 440 ohms
• Input sensitivity
• 270 mV (ref. 500 mV out, Volume maximum)
• Frequency response
• ±0.3 dB (20 Hz – 20 kHz)
• Maximum voltage output -IHF load
• >2 V (ref. 0.1 % THD)

PHONO INPUT, PRE-OUT

• THD (20 Hz – 20 kHz)
• <0.03% at 2 V out
• Signal-to-Noise Ratio
• >79 dB (200 ohms source; A-weighted, ref. 500 mV out)
• Input Impedance (R and C)
• 46 kohms/100 pF
• Input sensitivity
• 5.5 mV (ref. 500 mV out, Volume maximum)
• Frequency response
• ±0.3 dB (20 Hz – 20 kHz)
• Maximum input signal at 1kHz
• >80 mVrms (ref. 0.1 % THD)

LINE INPUT, HEADPHONE OUT

• THD (20 Hz – 20 kHz)
• <0.005% at 1V out
• Signal-to-Noise Ratio
• >96 dB (32 ohms loads; A-WTD, ref. 2 V out, unity gain
• Frequency response
• ±0.3 dB (20 Hz – 20 kHz)
• Channel separation
• >60 dB at 1kHz
• Output impedance
• Output impedance

MAIN IN, SPEAKER OUT

• Continuous output power into 8 ohms and 4 ohms
• 100W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
• THD (20 Hz – 20 kHz)
• <0.03% (250 mW to 100 W, 8 ohms and 4 ohms)
• Signal-to-Noise Ratio
• >95dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
• Clipping power
• >115 W (at 1 kHz 0.1 % THD)
• IHF dynamic power
• 8 ohms: 180 W
• 4 ohms: 250W
• 2 ohms: 300 W
• Peak output current
• >20A (in 1 ohm, 1 ms)
• Frequency response
• ±0.3 dB (20 Hz – 20 kHz)
• Channel separation
• >75dB (1 kHz)
• >70dB (10 kHz)
• Input sensitivity (for 100 W in 8 ohms)
• 540 mV
• Digital: -6dBFS
