Moon by Simaudio

Moon 850P

Moon 850P

$45,000.00 CAD
$45,000.00 CAD
Description

The 850P is the most advanced MOON preamplifier to date.  Extensive research and development, coupled with recent
advancements in electronic parts have provided us with  the foundation to design what may very well be the transparent, quietest, most accurate and uncoloured preamplifier.  Targeted to the discerning listener who desires uncompromising musical reproduction, the 850P features numerous proprietary technologies.

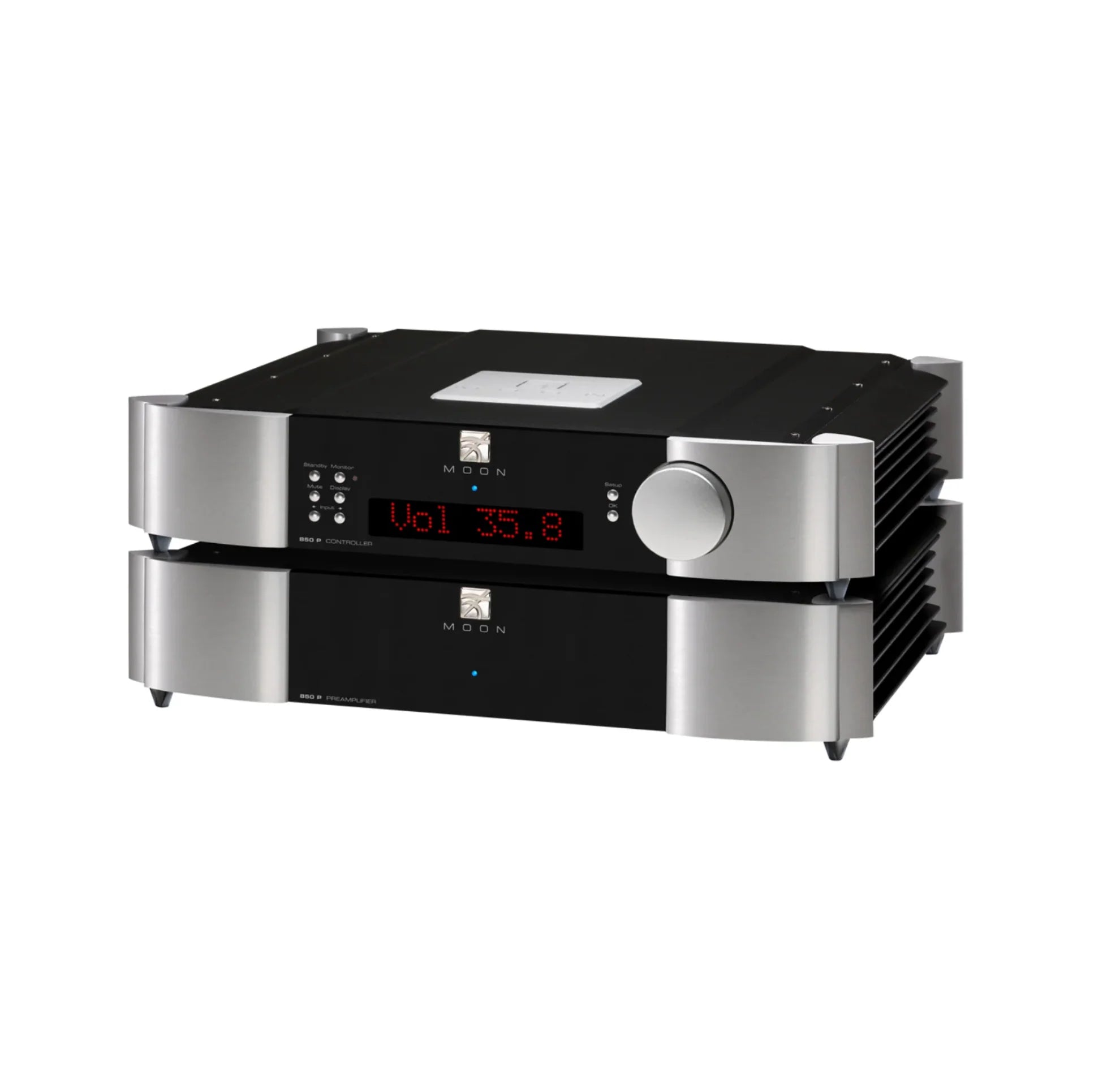

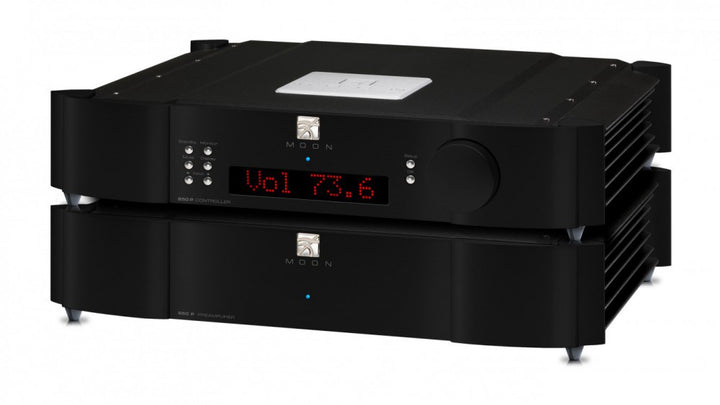

  • 2-chassis design with 1 chassis housing the power supply, digital controller circuitry, software processing & the LED display. The other chassis contains ONLY audio circuitry.
  • Power supply voltage regulation includes i 2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 40 stages in all.
  • Gain offset adjustment of ±10dB for each line input.
  • Each line input is fully configurable to be “home theatre ready”, whereby the 850P’s volume control is bypassed.
Specifications
  • Circuit Topology: Open loop
  • Input Sensitivity: 200mV - 4.0V RMS
  • Input impedance: 11,000Ω
  • Gain: 9dB
  • Max. output voltage (XLR / RCA): 15V/ 7. 5 V
  • Signal-to-noise Ratio (20Hz-20kHz): 130dB @ full output
  • Frequency response (full range): 5Hz - 100kHz ±0.1dB
  • Crosstalk @ 1kHz: -130dB
  • Output impedance: 50Ω
  • THD (20Hz-20kHz): < 0.0005%
  • Intermodulation distortion: immeasurable
  • Shipping weight: 151 lbs / 67 Kgs
  • Dimensions - Preamplifier (W x H x D): 18.75 x 4.0 x 16.5 in.
  • Dimensions - Controller (W x H x D): 18.75 x 5.5 x 16.5 in
  • Finishes: Silver, Black, Silver/Black and special edition finishes
