Moon by Simaudio

Moon 650D

Moon 650D

$11,000.00 CAD
$11,000.00 CAD
Description

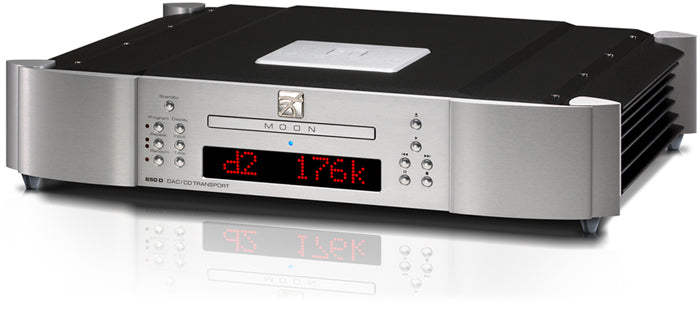

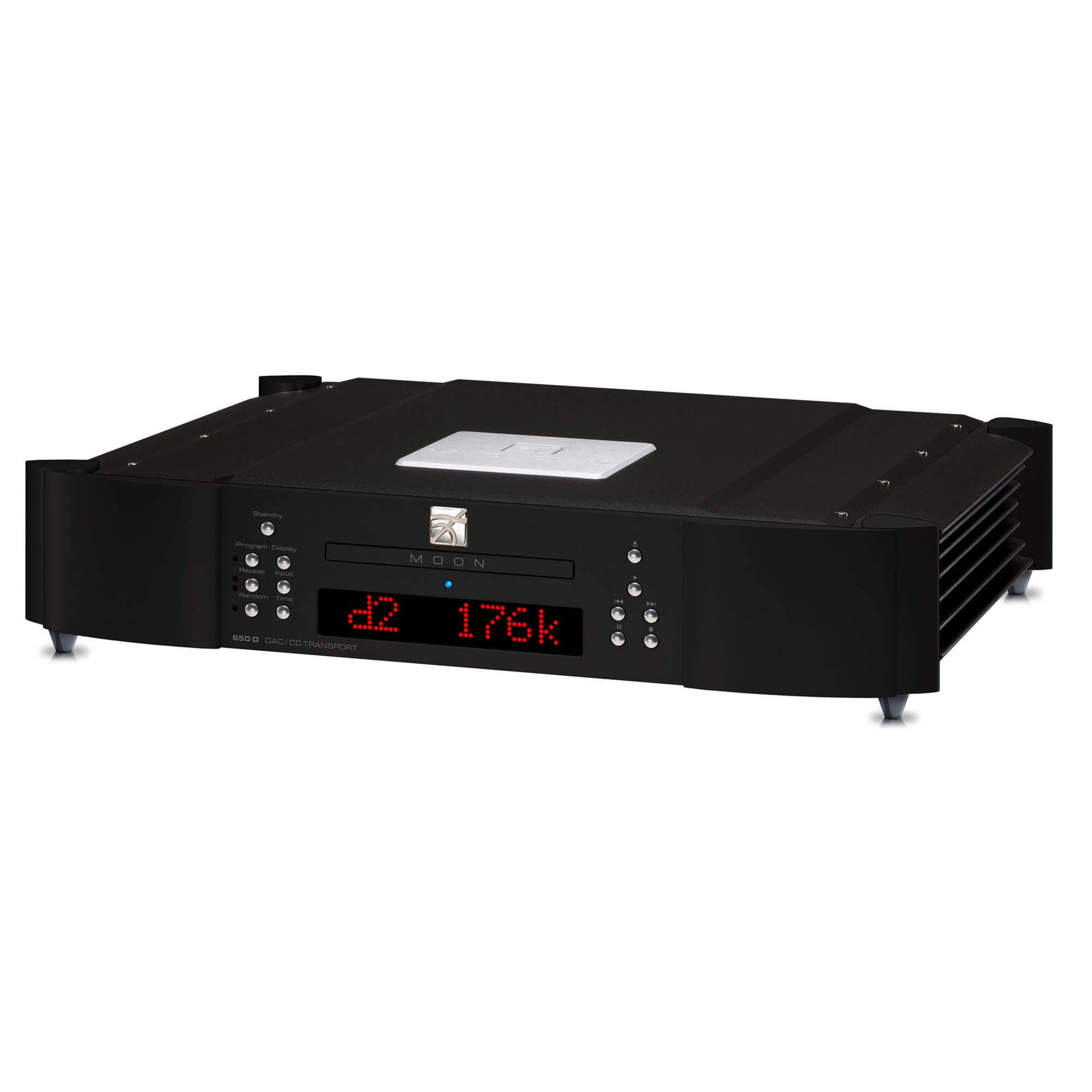

The MOON 650D Digital-to-Analog Converter / CD Transport follows in the footsteps of the highly acclaimed MOON 750D. Applying what is commonly referred to as trickle-down technology, we have created a product that yields almost all of the 750D's performance, but at a more accessible price-point.

  • Proprietary CD drive system mounted on our M-Quattro gel-based 4-point floating suspension.
  • Separate digital and analog power supplies, each with their own toroidal transformer.
  • Power supply voltage regulation includes i2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 18 stages in all.

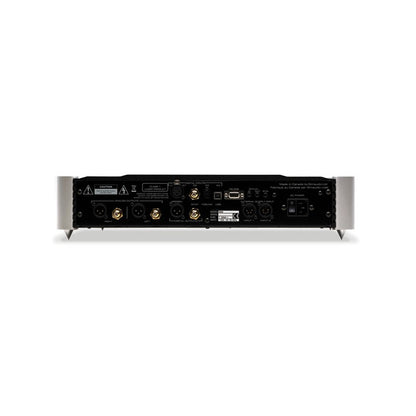

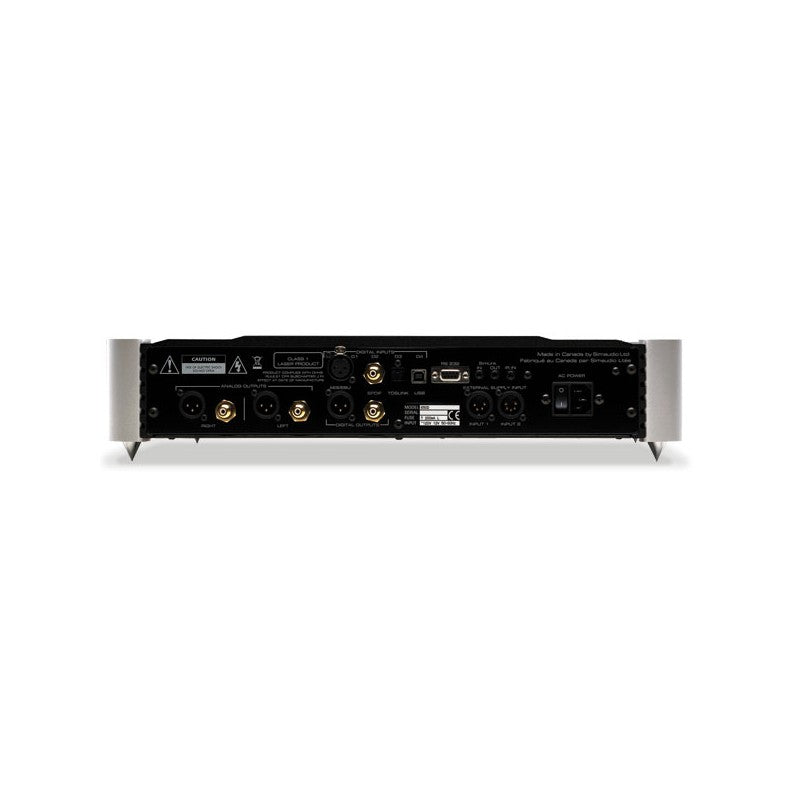

  • Four (4) digital inputs (AES/EBU, S/PDIF, TosLink and USB) allowing for a connection to virtually any digital source.
  • Two (2) digital outputs – AES/EBU and S/PDIF.

  • Fully compatible with 820S external power supply.
Specifications
  • Frequency response (full range): 2Hz - 100kHz +0/-3dB
  • THD @ 1kHz, 0dBFS (A-weighted): 0.0001%
  • Intermodulation distortion: 0.0001%
  • Dynamic Range: 120dB
  • Signal-to-noise Ratio: 120dB @ full output
  • Channel Separation: 116dB
  • Intrinsic Jitter: 1 picosecond RMS
  • Analog Output @ 0dBFS: 2.0 Volts
  • Analog output impedance: 100Ω
  • Bit-depth range: 16 - 24 bits
  • Sampling frequency rates: 44.1 - 192kHz
  • Shipping weight: 35 lbs / 16 Kgs
  • Dimensions (width x height x depth): 18.75 x 4.0 x 16.8 in. / 47.6 x 10.2 x 42.7 cm
