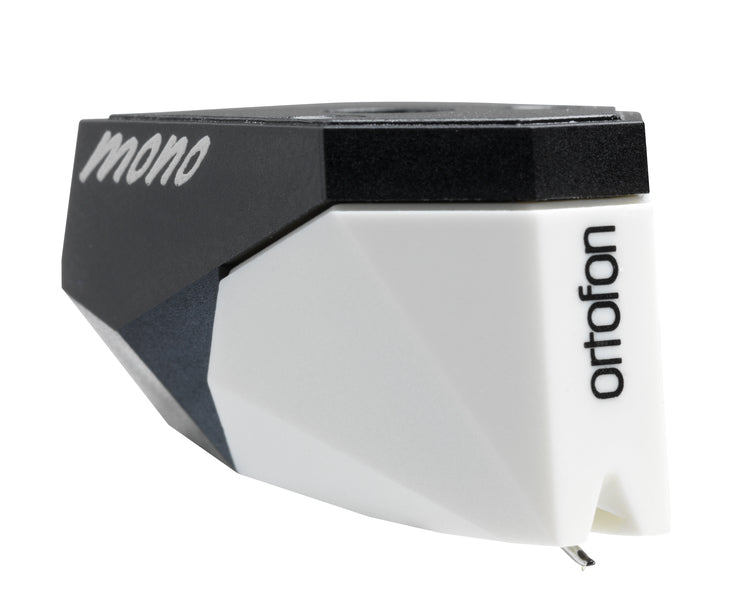

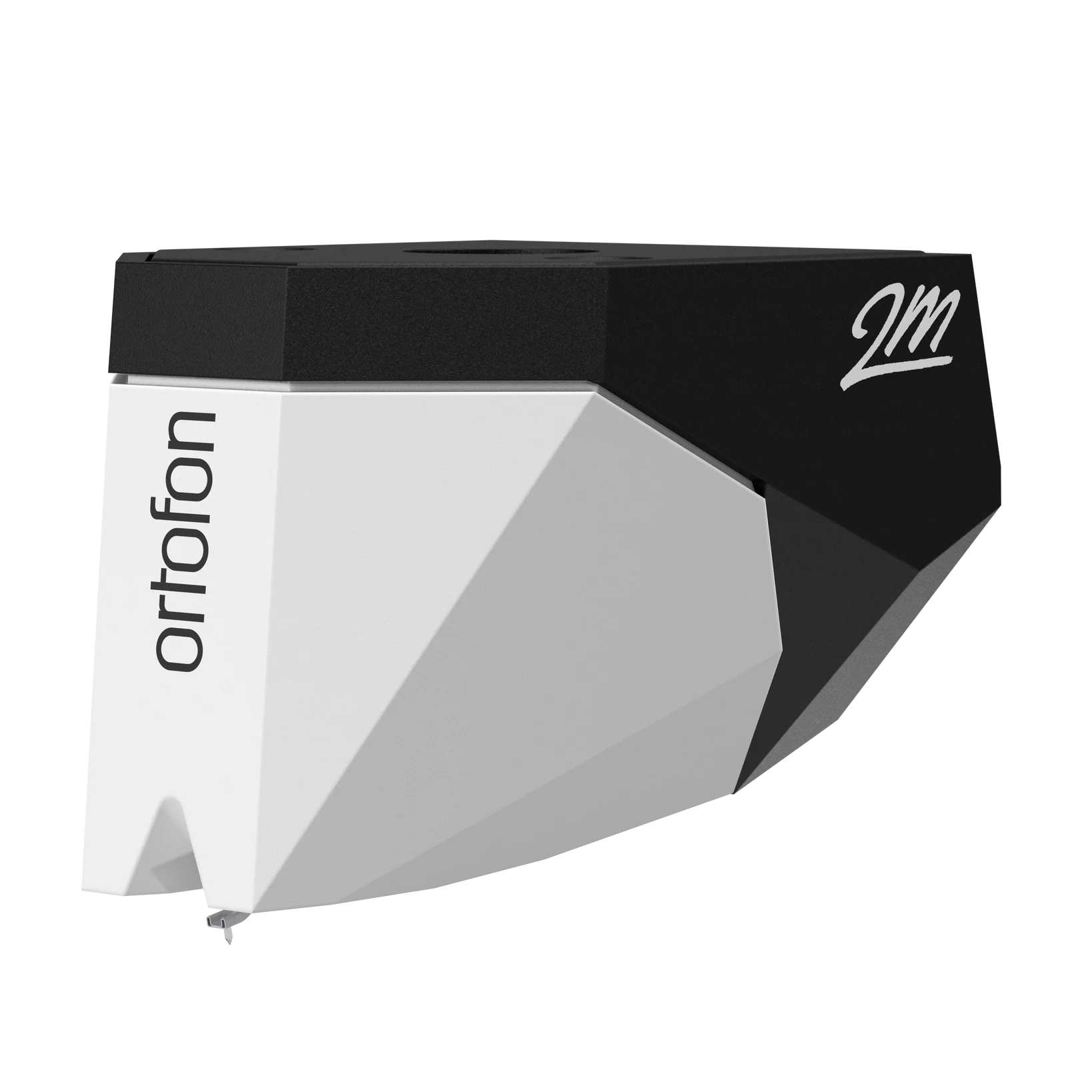

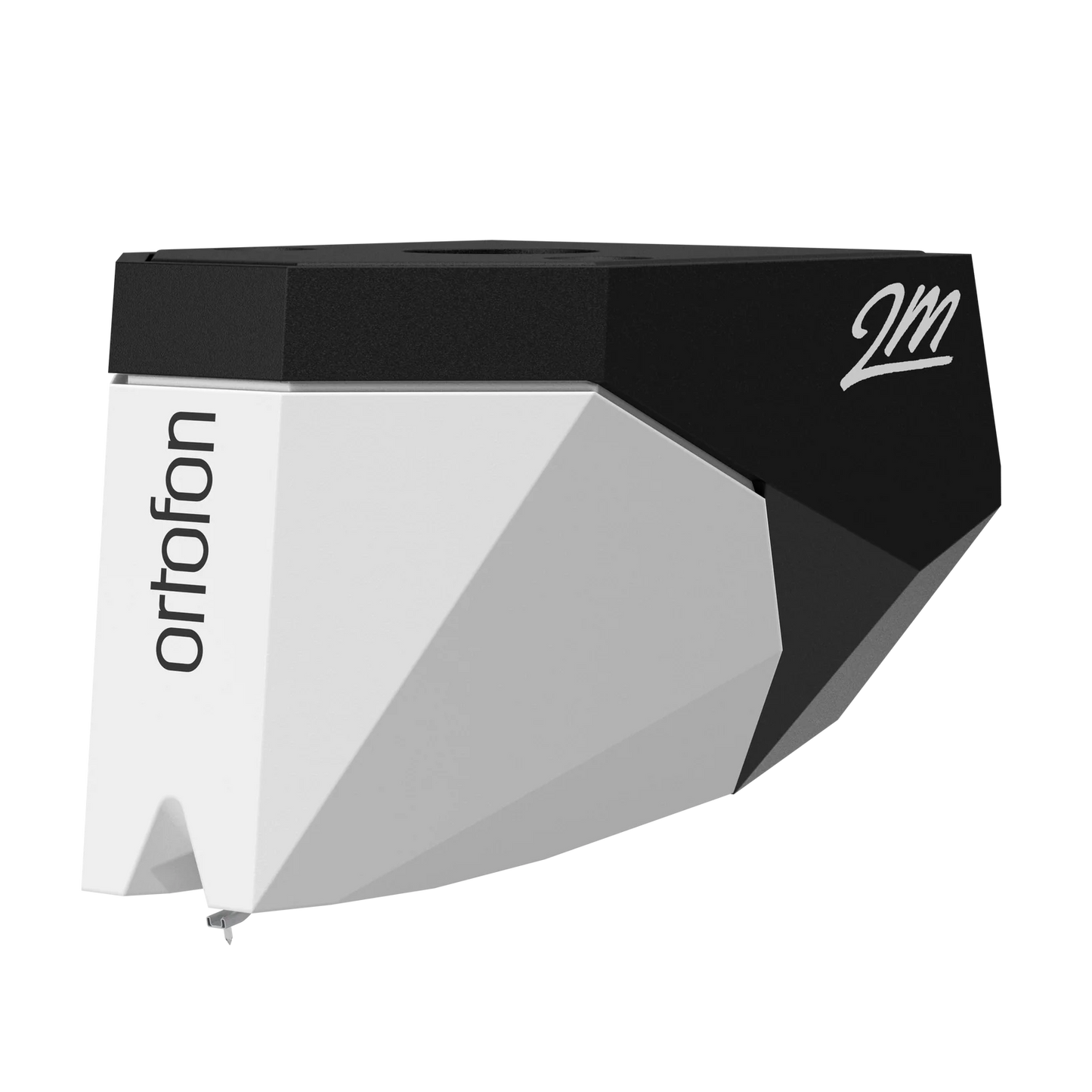

Ortofon 2M Mono Cartridge

Name: Ortofon 2M Mono Cartridge
Brand: Ortofon
Price: 616.0 CAD
Availability: InStock

$616.00 CAD

Product variants

Description

Step into an Era of Authenticity with the 2M Mono Cartridge, thoughtfully crafted to perfectly suit the intricacies of playing mono microgroove LP vinyl records. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with the 2M Mono.

Embark on an Elevated Mono Experience with the 2M Mono Cartridge. Designed to bring out the best in your mono microgroove LP vinyl records, it features a stylus tipped with an R 18µm Nude Spherical diamond. This engineered feature is an optimal solution for playing mono microgroove LP vinyl records and is ideal for achieving exceptional playback quality and capturing the essence of vintage mono soundscapes.

The 2M Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Specifications

Output voltage at 1000 Hz, 5cm/sec. 4 mV
Channel balance at 1 kHz
Channel separation at 1 kHz
Channel separation at 15 kHz
Frequency range at: 3dB - 20-22.000 Hz
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 18 µm/mN
Stylus type: Nude Spherical
Stylus tip radius: R18 µm
Tracking force range: 1,6-2,0g (16-20 mN)
Tracking force, recommended: 1,8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 700 Ohm
Internal inductance: 350 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body/stylus: Black/White
Cartridge weight without screws: 7,2 g
Replacement stylus unit: 2M Mono (interchangeable with 2M 78)
