Ortofon 2M Blue Premounted Cartridge

Ortofon 2M Blue Premounted Cartridge

$332.00 CAD
$332.00 CAD $323.00 CAD
Description

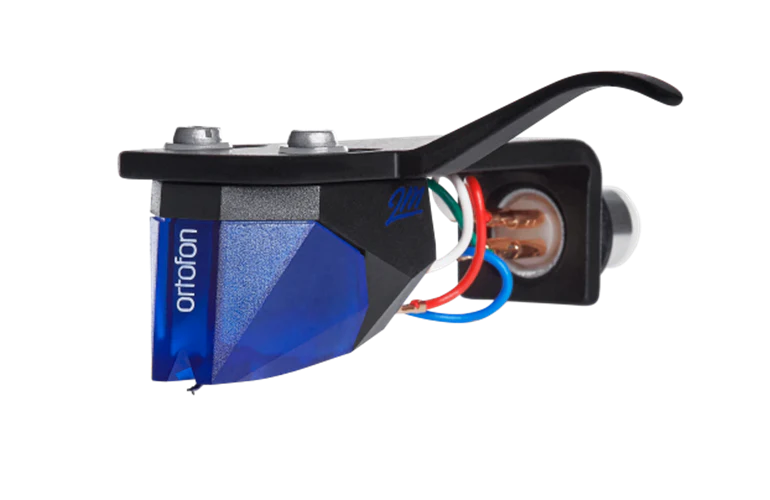

The goal of any cartridge should be to reproduce sound as closely to the artist's vision as possible, and the 2M Blue takes you further on this journey toward authenticity. The 2M Blue is mounted on our classic SH-4 headshell, making the setup process easy.

Created to facilitate simple installation of the cartridge and to ensure compatibility with the dimensions and weights of today's most popular turntables, the 2M Series offers four distinct product versions:

The 2M is for most common turntables on the market, the 2M Premounted for customers who wish direct and easy mounting and replacement on their S-shaped tonearm, the 2M Verso for bottom mount headshells, and the 2MR, which is designed with cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.
Specifications
  • Output voltage at 1000 Hz, 5cm/sec. - 5,5 mV
  • Channel balance at 1 kHz  - 1,5 dB
  • Channel separation at 1 kHz - 25 dB
  • Channel separation at 15 kHz - -15 dB
  • Frequency range at - 3dB - 20-25.000 Hz
  • Frequency response - 20-20.000 Hz + 2 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force - 80 µm
  • Compliance, dynamic, lateral - 20 µm/mN
  • Stylus type - Nude Elliptical
  • Stylus tip radius - r/R 8/18 µm
  • Tracking force range - 1,6-2,0g (16-20 mN)
  • Tracking force, recommended - 1,8 g (18 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 1,3 kOhm
  • Internal inductance - 700 mH
  • Recommended load resistance - 47 kOhm
  • Recommended load capacitance - 150-300 pF
  • Cartridge colour, body/stylusBlack/Blue
  • Cartridge weight - 7,2 g
  • Replacement stylus unit - 2M Blue  (interchangeable with 2M Red)
  • Stylus protection guard 2M Blue
