Ortofon

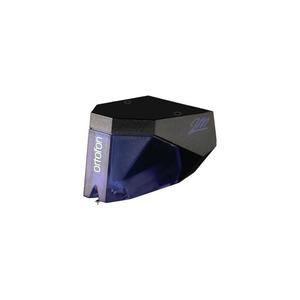

2M Blue

2M Blue

$274.00 CAD
$274.00 CAD $323.00 CAD
Description

Moving Magnet Cartridge

The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without colouring the sound.  The 2M Blue presents a true high end sound and represents real value
Specifications
  • Output voltage at 1000 Hz, 5cm/sec. - 5,5 mV
  • Channel balance at 1 kHz  - 1,5 dB
  • Channel separation at 1 kHz - 25 dB
  • Channel separation at 15 kHz - -15 dB
  • Frequency range at - 3dB - 20-25.000 Hz
  • Frequency response - 20-20.000 Hz + 2 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force - 80 µm
  • Compliance, dynamic, lateral - 20 µm/mN
  • Stylus type - Nude Elliptical
  • Stylus tip radius - r/R 8/18 µm
  • Tracking force range - 1,6-2,0g (16-20 mN)
  • Tracking force, recommended - 1,8 g (18 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 1,3 kOhm
  • Internal inductance - 700 mH
  • Recommended load resistance - 47 kOhm
  • Recommended load capacitance - 150-300 pF
  • Cartridge colour, body/stylusBlack/Blue
  • Cartridge weight - 7,2 g
  • Replacement stylus unit - 2M Blue  (interchangeable with 2M Red)
  • Stylus protection guard 2M Blue
