ABIS Tonearms

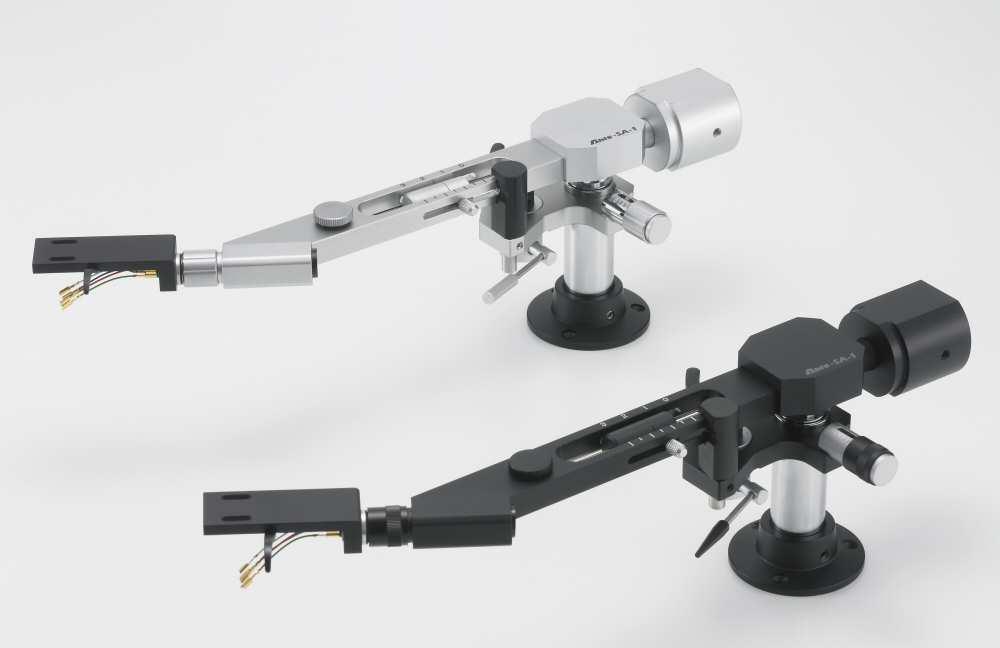

SA 1.2

The SA1.2B is the black version of the SA1.2, and all other specifications are the same.  With the introduction of the SA1.2B tonearm, along with the improved SA1.2, Abis has improved the performance of the original SA1 tonearm, already recognized by Stereophile as a meritorious design.  Though current Abis SA1.2 arms are substantially the same as the first version of the SA1 tonearm, the refinements in bearings and geometry improve on the performance of the original.  The result is an arm with substantial authority, the same as the original arm, but with even greater refinement and delicacy.

Regular price $2,250.00
- +

The SA1.2B is the black version of the SA1.2, and all other specifications are the same.  With the introduction of the SA1.2B tonearm, along with the improved SA1.2, Abis has improved the performance of the original SA1 tonearm, already recognized by Stereophile as a meritorious design.  Though current Abis SA1.2 arms are substantially the same as the first version of the SA1 tonearm, the refinements in bearings and geometry improve on the performance of the original.  The result is an arm with substantial authority, the same as the original arm, but with even greater refinement and delicacy.

  • Whole Length: 310mm
  • Effective Length (Tonearm pivot – stylus): 239mm (9.4″)
  • Practical Length (Tonearm pivot – Spindle): 223mm
  • Overhang: 16mm
  • Offset angle: 22.25°
  • Horizontal moving sensitivity: 30mg
  • Vertical moving sensitivity: 20mg
  • Vertical Tracking Force (VTF) range: 0-4.5g (2.5g + 2.0g)
  • Cartridge + Headshell weight range: 15-45g
  • Height Adjustment (Plinth to arm wand centerline): 15-55mm
  • Vertical Bearing: Miniature Radial Bearing
  • Horizontal Bearing: Miniature Radial Bearing
  • Output plug: RCA (XLR : Option)
  • Output cable: Single core shield copper
  • Tonearm Audio Lead wire: OFC 4N Copper (Separate wiring in wand)
  • Headshell lead wire: Copper with gold plated terminal
  • Headshell: Machine tooled Aluminum
  • Tonearm Net Weight: 750g
  • Attached standard Headshell Net Weight: 17g
