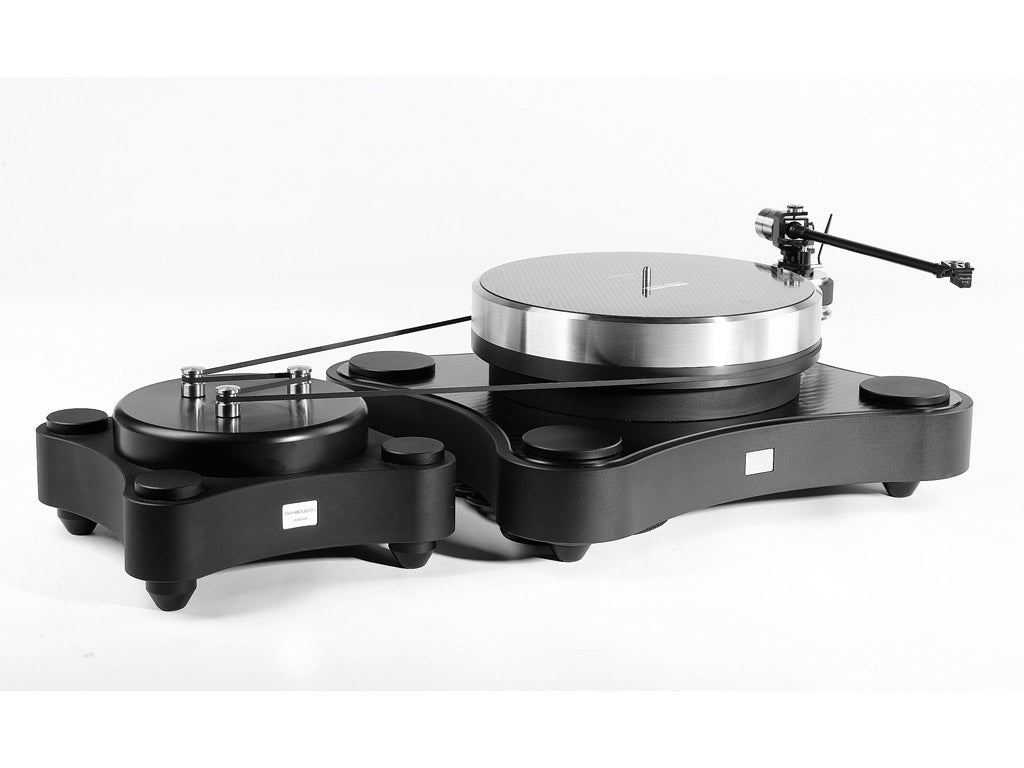

Naturally, the experience gained over the last few years stood TW-Acustic in good stead for developing the Black Night. Despite drawing on these experiences, the Black Night also incorporates many innovative features not seen before in this form. The Raven Black Night is a truly monumental turntable, as its sheer size and weight testify. Despite this, thanks to the proportions, colour and choice of materials, the design remains pleasing and harmonious.
The listed price is for the turntable only package (no tonearm). Please call in for further pricing details.
In developing the Black Night, the aim was to build a turntable that could top even the Raven AC in terms of subtlety, ease and silence. In this TW-Acustic have succeeded, and the results are seriously impressive. The Black Night portrays the music’s every detail with subtlety and stereo depth, whether it be human voice or instruments. Everywhere, you’ll discover nuances that had previously remained hidden. Attack and decay of transient notes are reproduced impressively. Thanks to the three-motor drive and the battery power supply, the Raven Black Night does its job with poise, serenity and composure, yet just like the other TW-Acustic turntables, it is highly dynamic, involving and rich in timbre.
Weight:
Chassis 30 kg
Platter: 20 kg
Motor unit: 10 kg
Motor control unit: 5 kg
Dimensions:
470 mm x 420 mm (W x D)
Motor 270 mm x 270 mm
Total footprint: 790 mm x 420 mm (W x D)
Chassis construction:
Material: 60 mm aluminium, ceramic bead blasted and silk matt black anodised.
Inlet: 25 mm of TW ACUSTIC’s proprietary Delrin-based compound, rigidly screwed to chassis.
Feet and all other attachments are also ceramic bead blasted and silk matt black anodised aluminium.
Feet:
Four, ceramic bead blasted and silk matt black anodised aluminium, designed and built by TW ACUSTIC featuring ball and spring suspension.
Platter construction:
Material: 40 mm copper in combination with 20 mm of our special compound let into and screwed together with the copper platter.
Bearing:
Bronze bearing, 16 mm hard metal shaft with ball on top, running on a thrust washer of 'Material S ® (green)'. Bushing is machined exactly to fit the bearing with zero float, yet remains replaceable.
Motor:
60 mm aluminium, ceramic bead blasted and silk matt black anodised, in identical shape to the Raven Black Night but 60% smaller. 4 height-adjustable feet on the outer corners. 3 motors arranged in an arrow formation, pointing towards the platter. Drive belt is guided through the drive pulleys and around the circumference of the platter.
Motor control unit:
Two built-in power supplies - one is exclusively used to charge the batteries. In normal operation the motors run from the battery supply alone, controlled by a microcontroller. Switching between battery and mains supplies occurs automatically without interrupting operation, as does battery charging. A remaining charge indicator is included on the front panel. Battery complement: 20 x rechargeable AA cells. Run time on battery operation only: Approx. 20 hours.
Armboard:
Up to four tonearms may be fitted.
