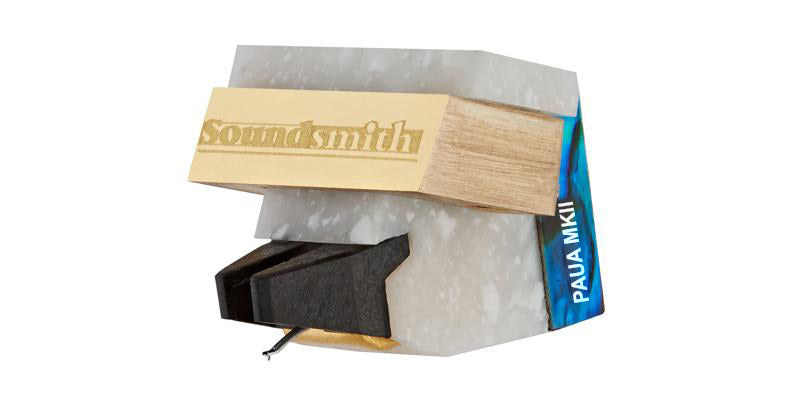

Soundsmith

Paua Mk. II

  • Cartridge Type: Fixed Coil
  • Stylus Type: Contact Line
  • Output: Low
  • Output Voltage: .4 mV
  • Available As Dual Coil Mono: Yes
  • Stylus: Contact Line Nude, 0.100mm SQ
  • Radius of curvature: Nude Contact Line SELECTED
  • Cantilever: Telescoping Aluminum Alloy
  • Recommended tracking force: 1.7 to 1.9 grams
  • Effective tip mass: 0.30 mg
  • Compliance: 10 μm/mN (low compliance)
  • Frequency response: 20-20,000 Hz ± 1.0 dB
  • Channel separation (stereo only): 1000 Hz >34 dB 50-15,000 >25 dB
  • Channel difference: <0.5 dB (Stereo), <1.0 dB (Mono)
  • Output Voltage: ≥0.4 mV
  • DC Resistance (DCR): 10-11 Ω each channel
  • Coil: 2.75 mH each channel
  • Suggested Preamp Gain: 58-64 dB
  • Soundsmith Recommends: MCP2 Variable Loading Preamp
  • Cartridge weight: 10.25 grams
  • Loading: ≥ 470 Ω
Regular price $5,199.95
- +
