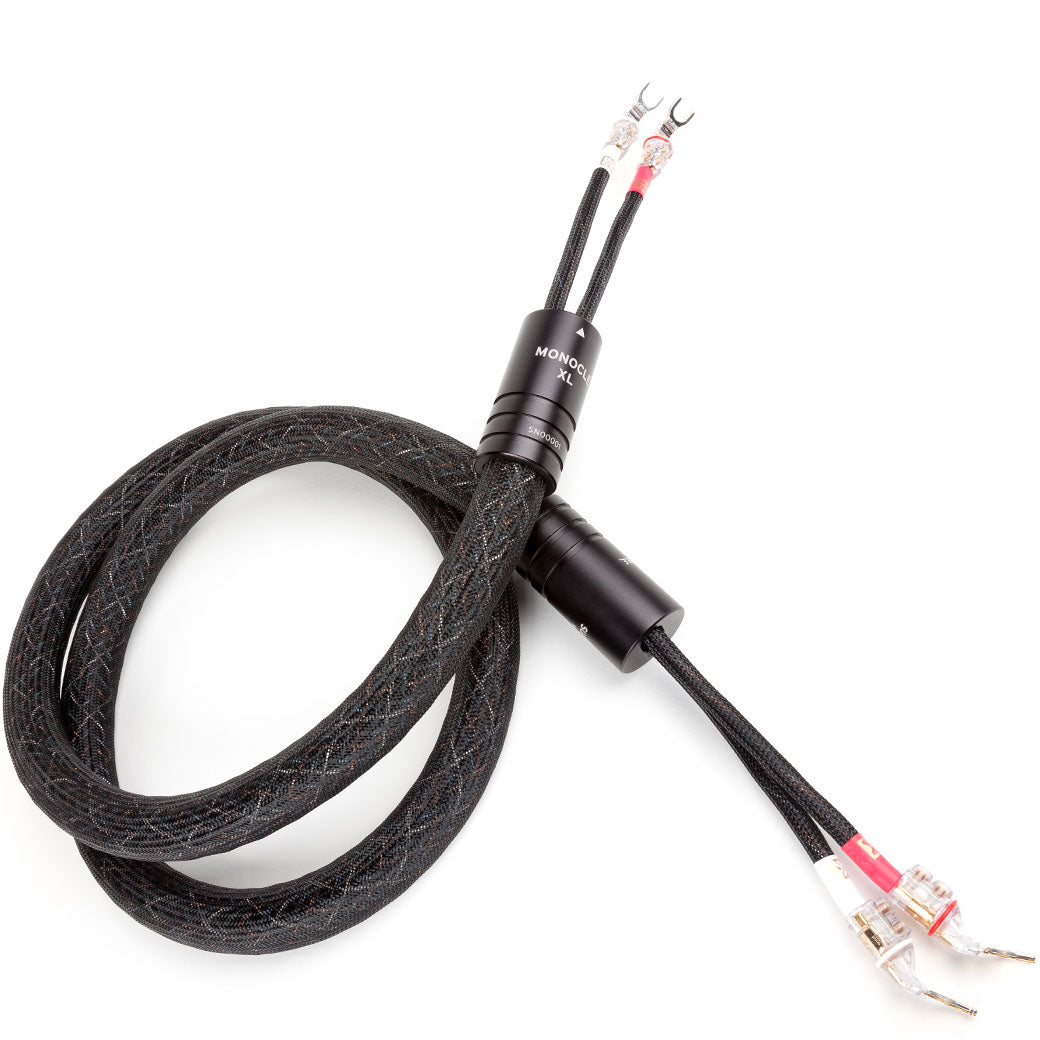

Kimber Kable

Monocle XL

Monocle-XL is a fully optimized cable engineered to offer the most intimate interface of amplifier and single input loudspeaker. Compared to the Monocle-X, Monocle-XL offers increased dynamic range with greater speed and acceleration. Timbre, space, detail, intimacy..., the Monocle-XL delivers musical nuances and color with emotion, truth and realism. Monocle-XL features twenty-four individual VariStrand conductors, symmetrically inter-woven around the propriety X38R compound.

Regular price $1,425.00
- +

Monocle-XL is a fully optimized cable engineered to offer the most intimate interface of amplifier and single input loudspeaker. Compared to the Monocle-X, Monocle-XL offers increased dynamic range with greater speed and acceleration. Timbre, space, detail, intimacy..., the Monocle-XL delivers musical nuances and color with emotion, truth and realism. Monocle-XL features twenty-four individual VariStrand conductors, symmetrically inter-woven around the propriety X38R compound.

Basic Electrical Specifications

  • DUT: MXL 2.5m terminated with WBT-0660-Cu spades
  • (Cp) parallel capacitance:     1,199.0 pF @ 20 kHz
  • (Ls) series inductance:     0.874 µH @ 20 kHz
  • (Rdc) dc loop resistance:     0.015 Ω
  • (Xt) total reactance:     0.109 Ω @ 20 kHz
  • Frequency response ± 0.5 dB: dc - 1 MHz

Connector Options

  •     WBT-0681 ag
  •     WBT-0661 ag
  •     WBT-0610 ag
  •     WBT-0600
  •     WBT-0681 cu
  •     WBT-0661 cu
  •     WBT-0610 cu
  •     WBT-0645
