Dan D'Agostino Master Audio Chooses Its Challenges, Then Pushes Beyond.

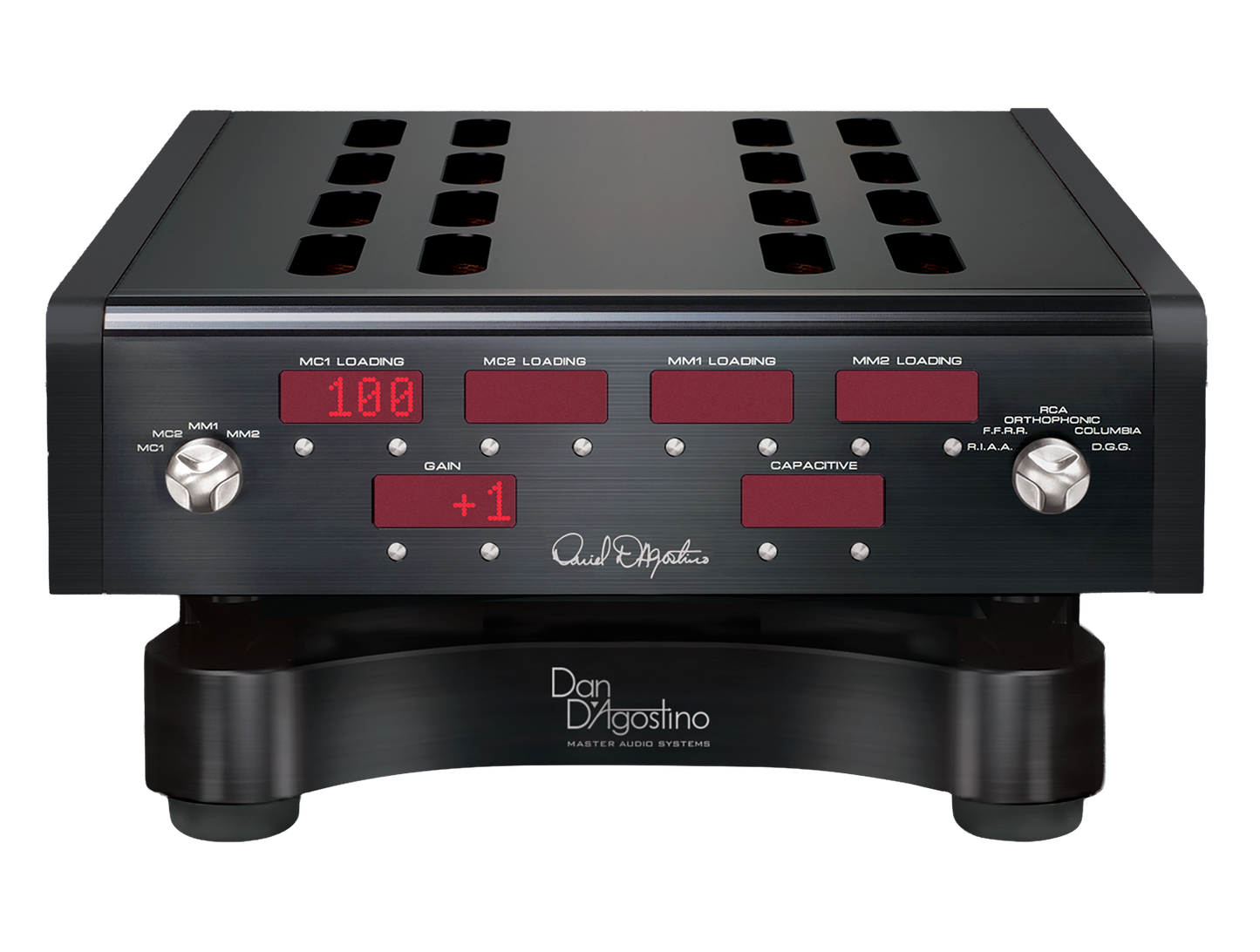

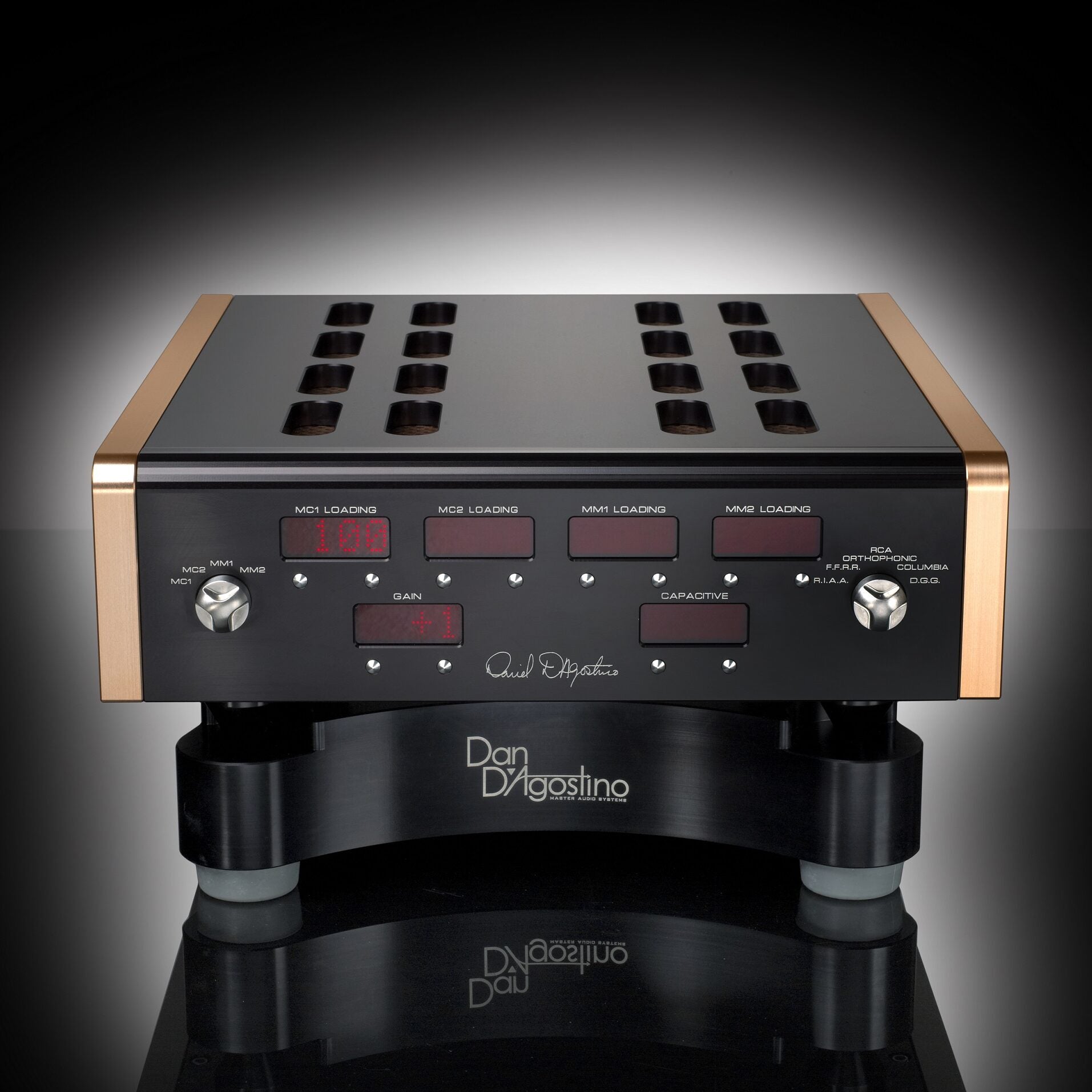

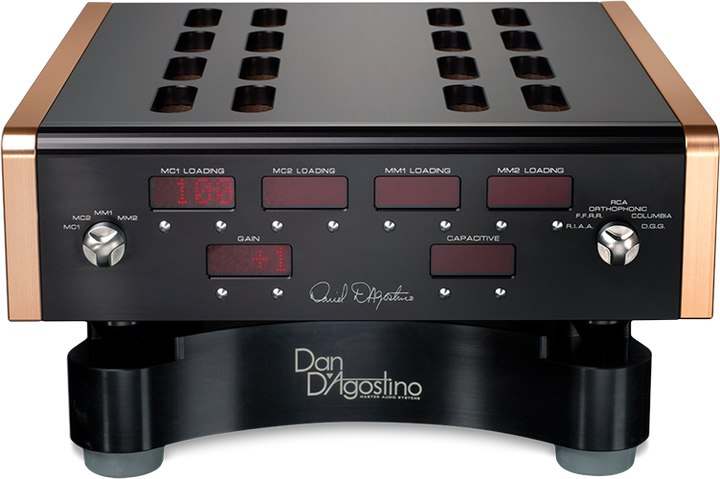

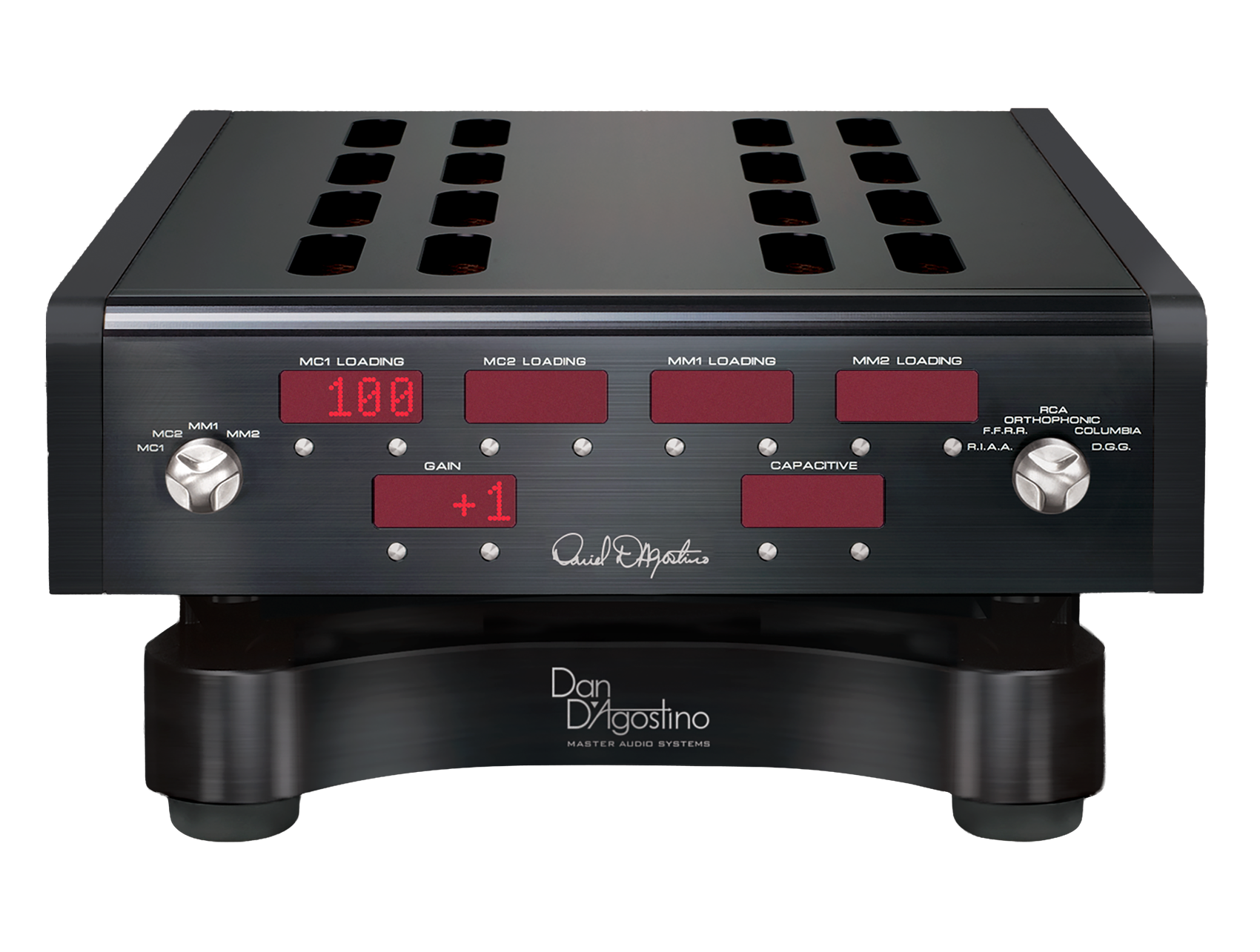

By combining the finest possible analog circuitry with the precision of digital control. Every adjustment is right there on the front panel of the Momentum Phonostage, with its own LED readout. Pushbuttons on the front precisely control gain, resistive loading for the two MC inputs, resistive and capacitive loading for the MM input, and record EQ curve.
Knowing that even the best circuitry is no better than the electricity that powers it, the Momentum Phonostage uses a special AC power supply. Not one but two separate power supply components: a transformer that sits on the floor, and power rectification and regulation circuits built into the base on which the Phonostage sits. Thus, the sensitive phono preamp circuits are double-isolated from the transformer electrically, and also separated by a safe physical distance.

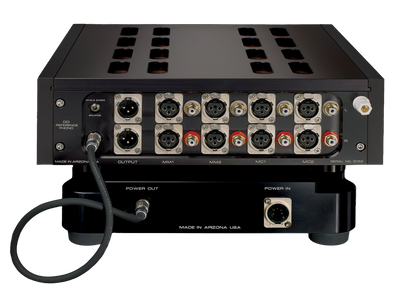

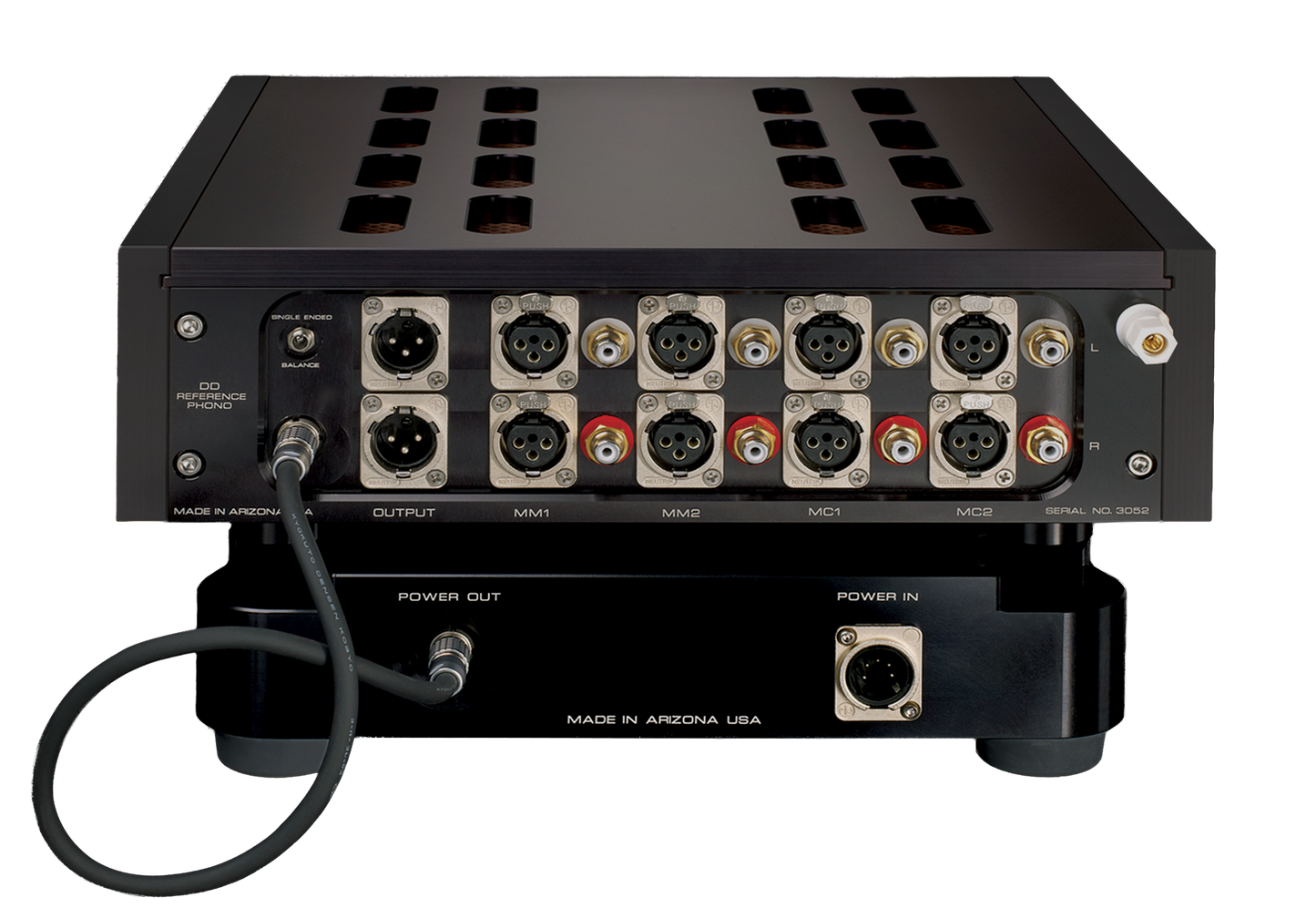

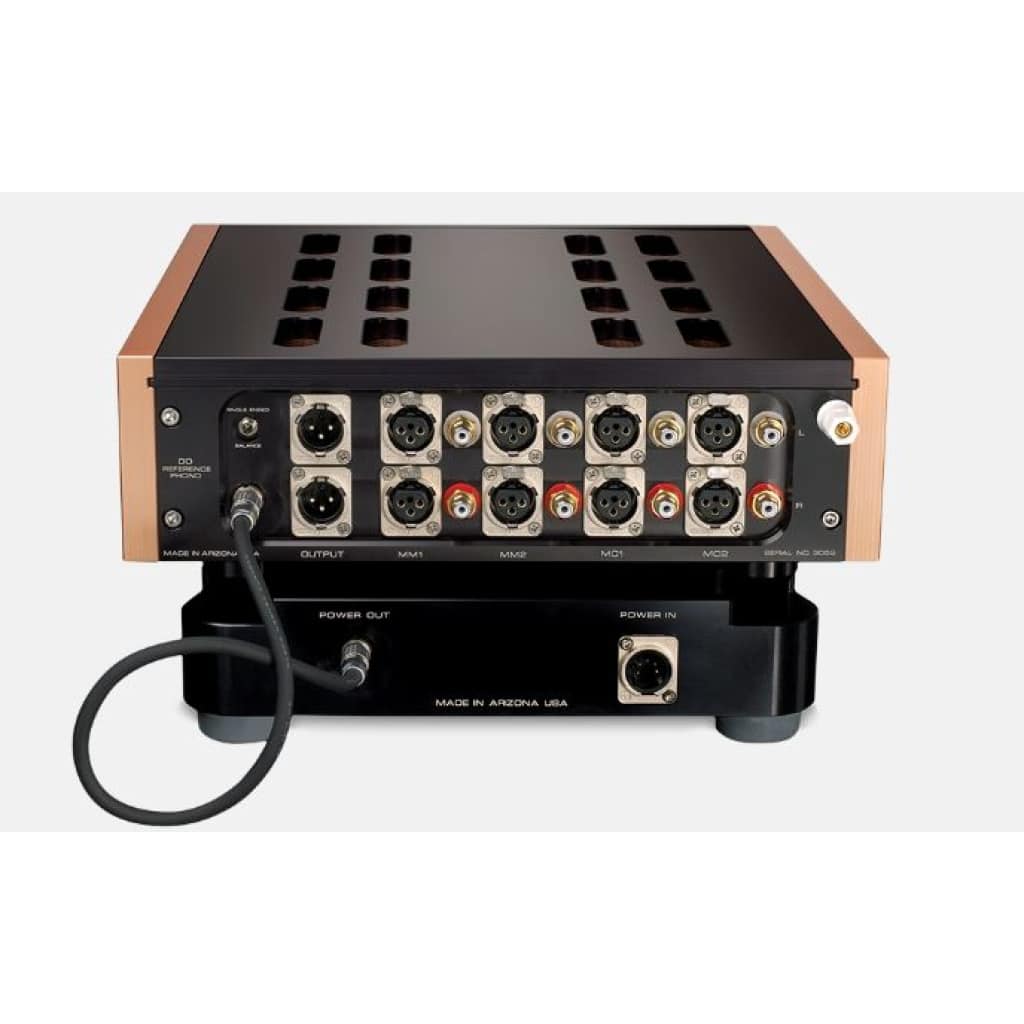

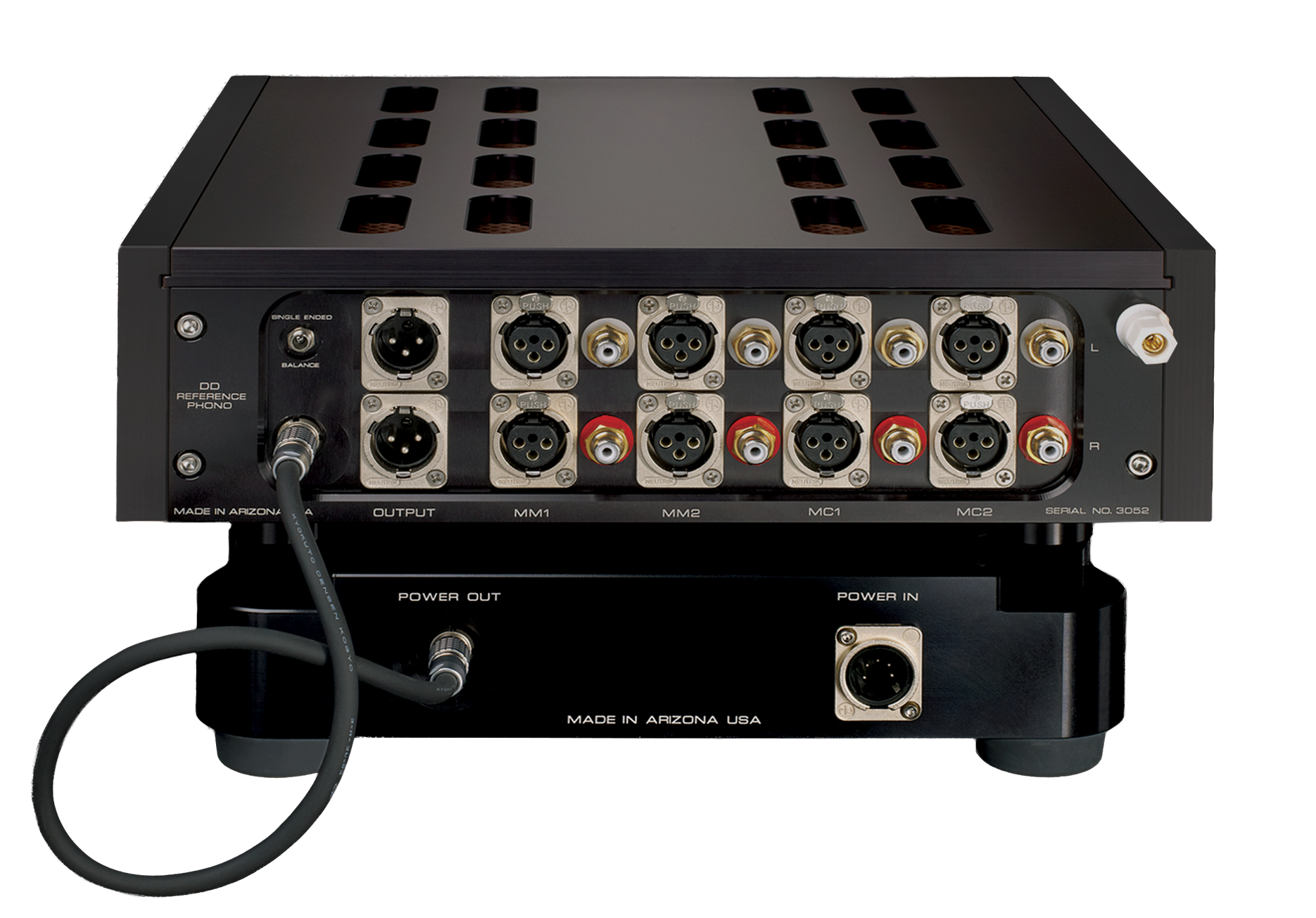

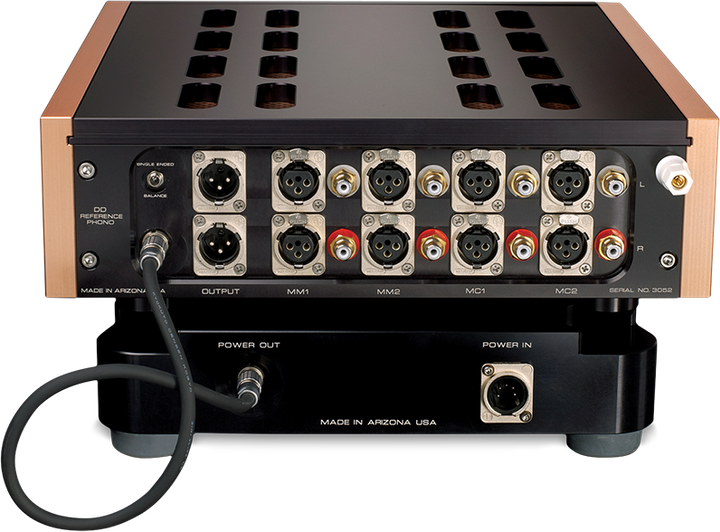

The Momentum Phonostage has numerous inputs to handle multiple tonearms and turntables. It has two moving-coil inputs and two moving-magnet inputs, each with XLR and RCA jacks, plus XLR and RCA outputs. The Momentum Phonostage was born without limitations.
As with all the other products from Dan D’Agostino Master Audio Systems, each Momentum Phonostage is built by hand in the Arizona factory.
Specs
- Gain: 70 dB for MOVING COIL 50dB for MOVING MAGNET
- Finish: Silver Black Custom Finishes Available Upon Request
- Dimensions: Separate: Main: 15.5 x 12.75 x 3 1/2 Power Supply: 13.5 x 11 x 2.5 Total - - Height: 7 Transformer Box: 4 x 10.5 x 2
Equalization Curves: There are five selectable equalization curves available from the front panel. These include the Standard RIAA equalization curves and 4 alternatives used by various record labels. The available curves are: RIAA FFRR RCA orthophonic COLUMBIA DGG Frequency response Represents the above curves +/- .2 dB from 20 Hz to 20 kHz.
- Loads: 16 selectable resistive loads for MOVING COIL and MOVING MAGNET 16 selectable capacitive loads for MOVING MAGNET inputs
- Input Clipping: 1Khz typical for 70cM/sec recorded velocity, gain trim at "0" MC 6mV MM 6mV Equivalent input noise, 20 to 20 kHz < 60nV Equivalent input noise current None Gain adjustment is +/- 6dB and is selectable from the front panel.
- Power Supply: The base of the phono stage houses critical power supply rectificaition circuitry while a third chassis houses the power transformer for maximum isolation from AC-generated electromagnetic fields.
