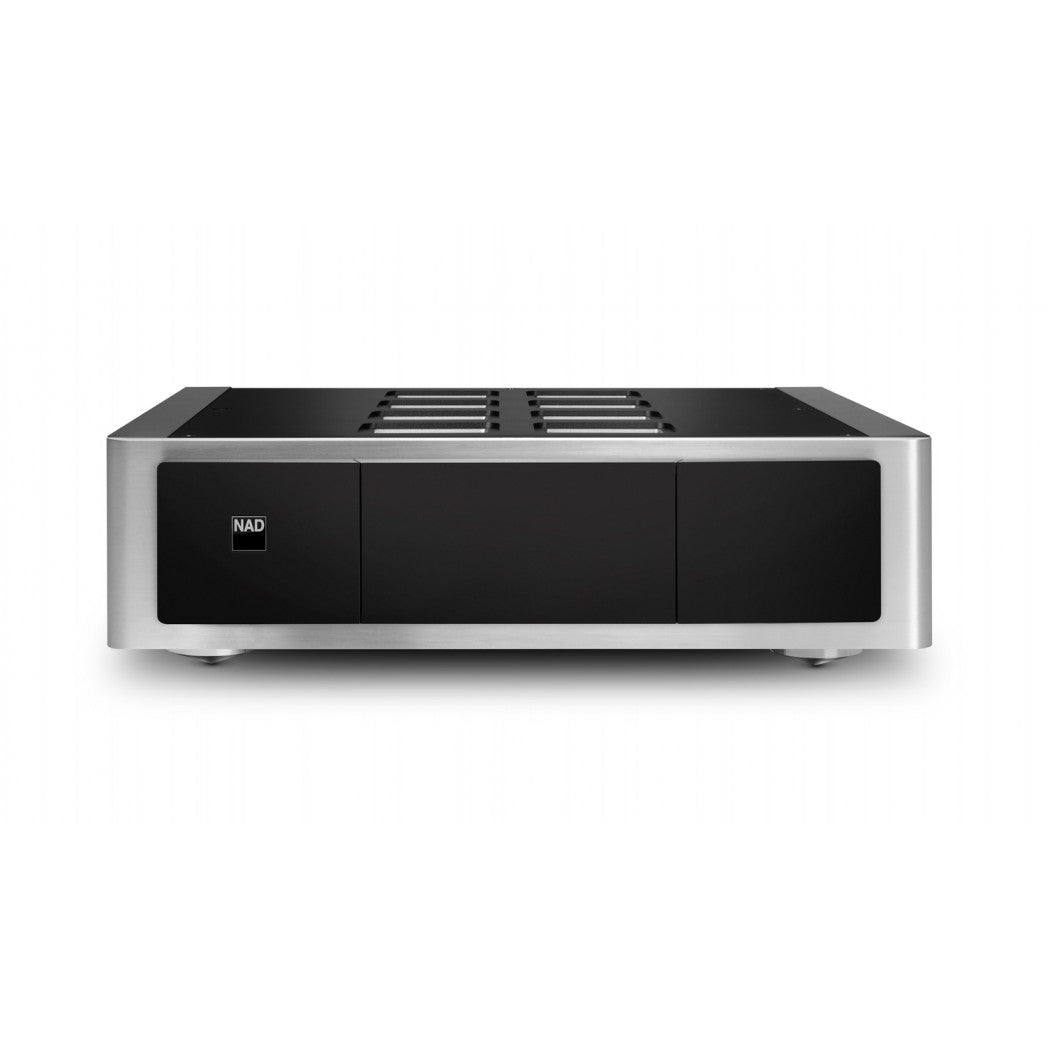

The M23 employs Eigentakt™ class-D amplifier modules manufactured by NAD under license from Denmark’s Purifi Audio. Purifi’s load-invariant design provides wide, flat frequency response, even into challenging loudspeaker loads. Noise, harmonic distortion, and IM distortion are virtually unmeasurable at all frequencies and output levels. Another benefit of the Eigentakt™ design is extremely low output impedance and correspondingly high damping factor, for iron-clad control of the loudspeaker output. NAD combines the Eigentakt™ design with our own sophisticated switched-mode power supply, which can provide additional reserves of current when needed. Amazingly powerful and transparent, the M23 can deliver 2x260W of peak power into 8 ohms and 2x520W into 4 ohms.
- HybridDigital Purifi Eigentakt™ amplifier technology
- Continuous Power Output: 2x200W into 8 ohms; 2x380W into 4 ohms
- Dynamic Power Output: 2x260W into 8 ohms; 2x520W into 4 ohms
- Bridged Power Output: 700W mono continuous into 8 ohms
- In bridged mode, can be combined with the NAD M33 BluOS Streaming Amplifier to create a 2x700W system
- Virtually unmeasurable noise, harmonic distortion, intermodulation distortion
- Wide, flat frequency response into any loudspeaker load

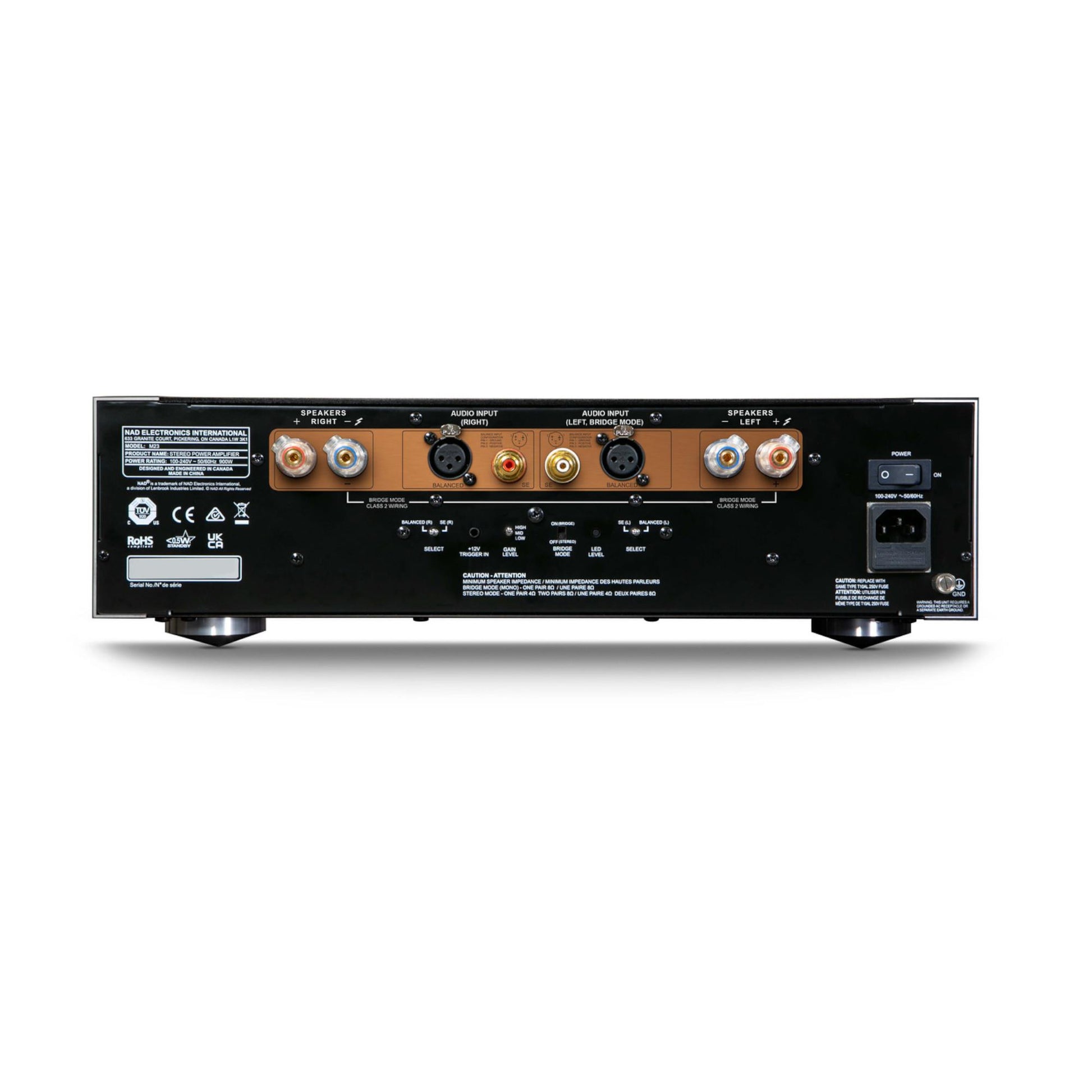

- Balanced (XLR) and single-ended (RCA) auto-sensing inputs
- Three-position adjustable gain control
- 12V trigger input
