Kimber Kable

Silver Streak

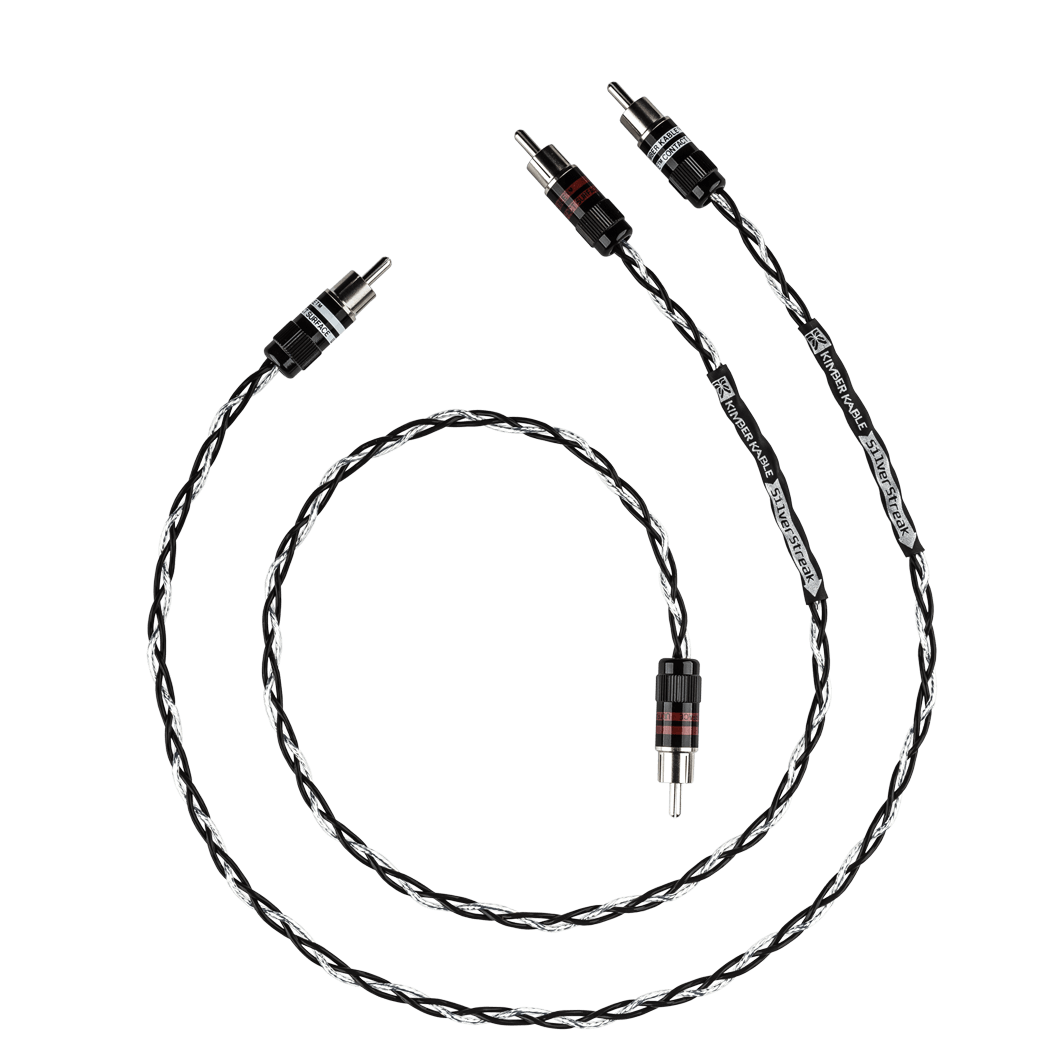

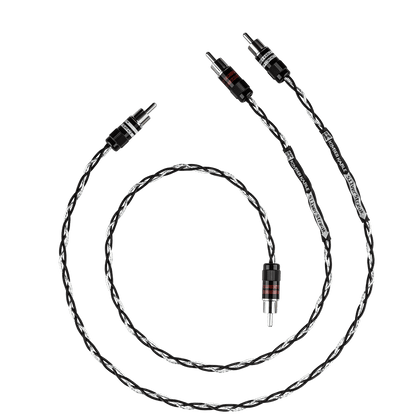

This analog interconnect incorporates separately insulated silver and copper conductors into the proven tri-braid geometry. The signal is carried via the same Hyper-pure, VariStrand™ silver found in the world renowned KCAG. The ground plane is comprised of Hyper-pure, VariStrand copper. This cable offers exceptional speed, clarity and spaciousness at a very reasonable cost. Silver Streak single-ended features precision machined WBT® RCA type connectors.

Regular price $295.00
- +

This analog interconnect incorporates separately insulated silver and copper conductors into the proven tri-braid geometry. The signal is carried via the same Hyper-pure, VariStrand™ silver found in the world renowned KCAG. The ground plane is comprised of Hyper-pure, VariStrand copper. This cable offers exceptional speed, clarity and spaciousness at a very reasonable cost. Silver Streak single-ended features precision machined WBT® RCA type connectors.

Basic Electrical Specifications

DUT: Silver Streak SE 1m terminated with WBT-0147 RCA type connectors.

  • (Cp) parallel capacitance:     53.0 pF @ 20 kHz
  • (Ls) series inductance:     0.750 µH @ 20 kHz
  • (Rdc) dc loop resistance:     0.061 Ω
  • (Xt) total reactance:     0.095 Ω @ 20 kHz
  • Frequency response ± 0.5 dB dc - 10 MHz

DUT: Silver Streak Balanced 1m terminated with XLR type connectors.

  • (Cp) parallel capacitance:     37.10 pF @ 20 kHz
  • (Ls) series inductance:     1.07 µH @ 20 kHz
  • (Rdc) dc loop resistance:     0.105 Ω
  • (Xt) total reactance:     0.135 Ω @ 20 kHz
  • Frequency response ± 0.5 dB dc - 10 MHz

Connector Options

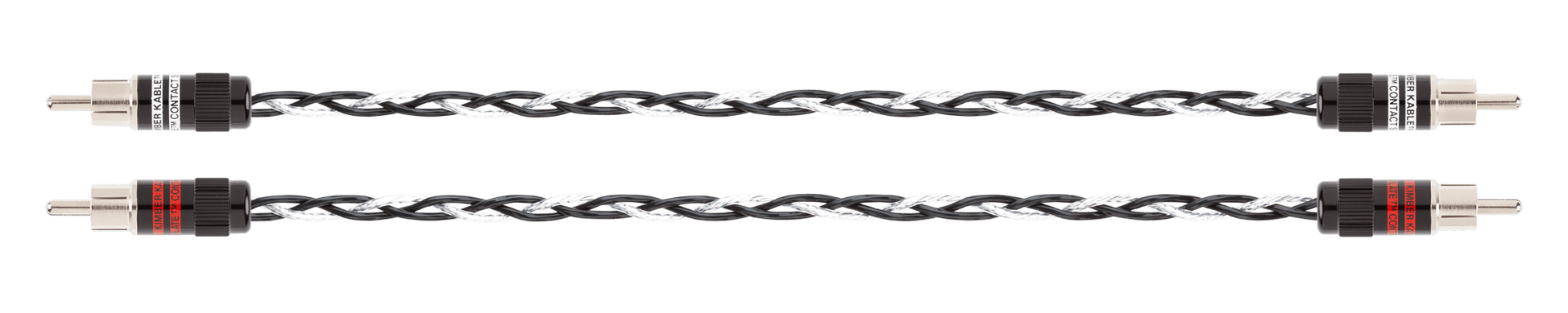

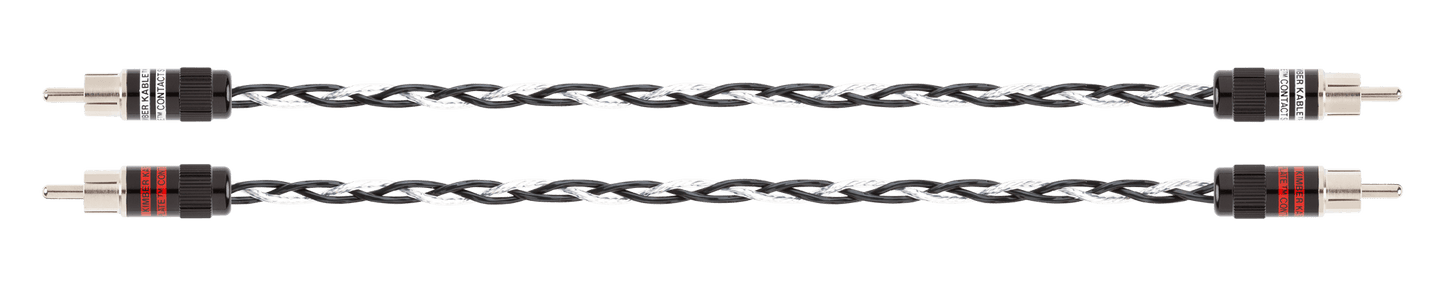

  • Ultraplate Black

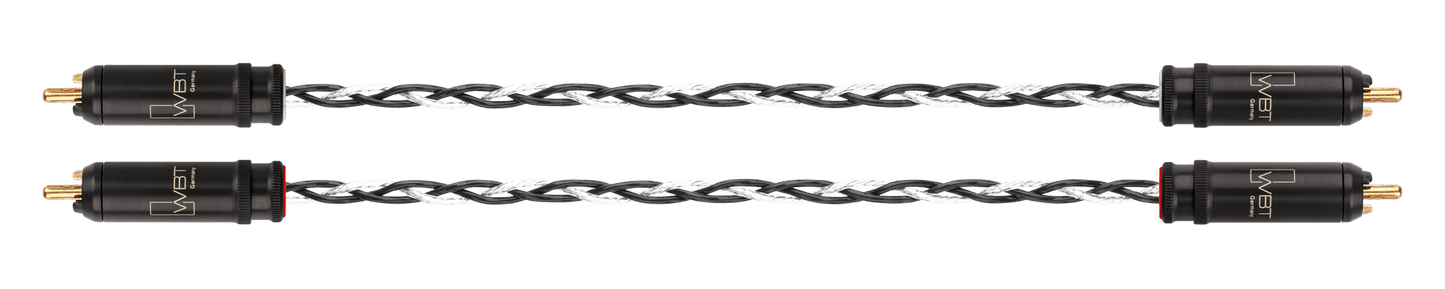

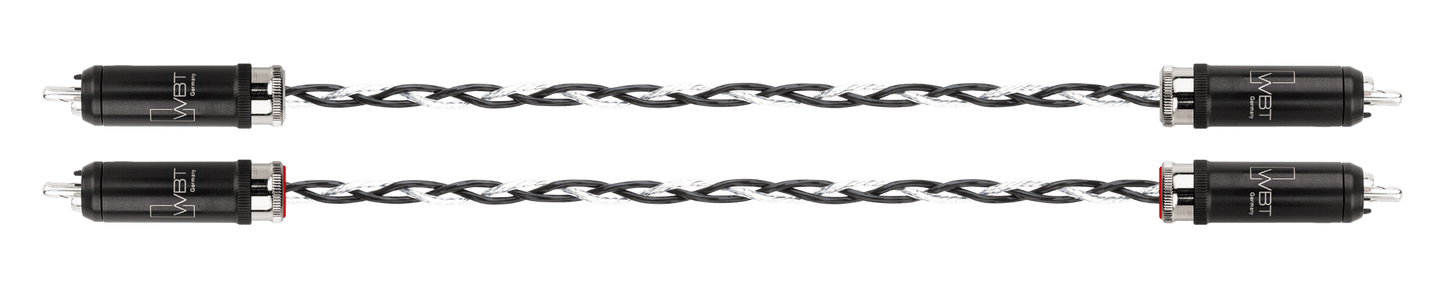

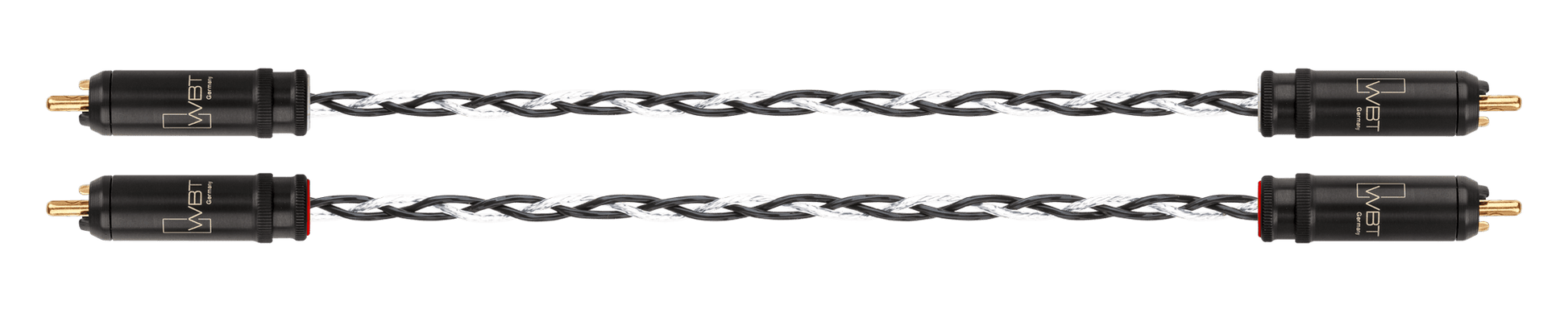

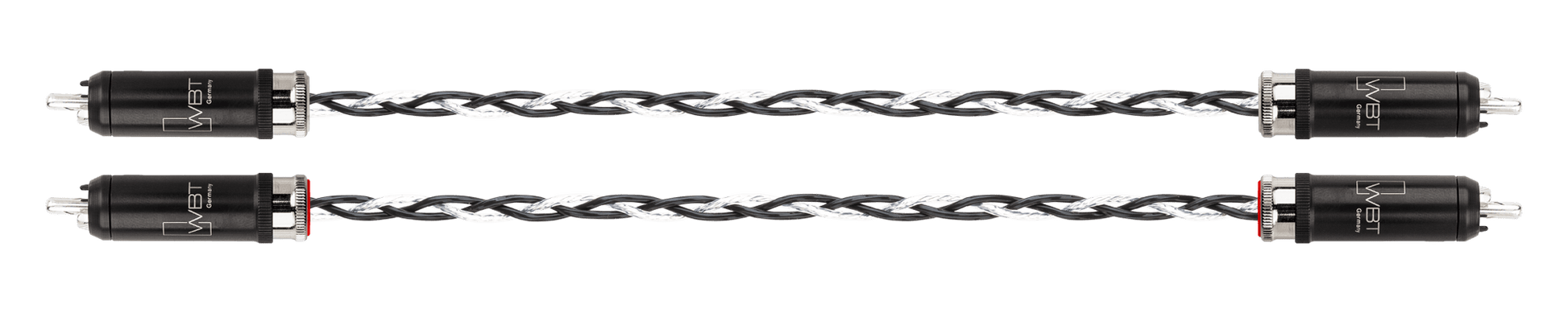

  • WBT-0114
  • WBT-0102 Cu
  • WBT-0102 Ag

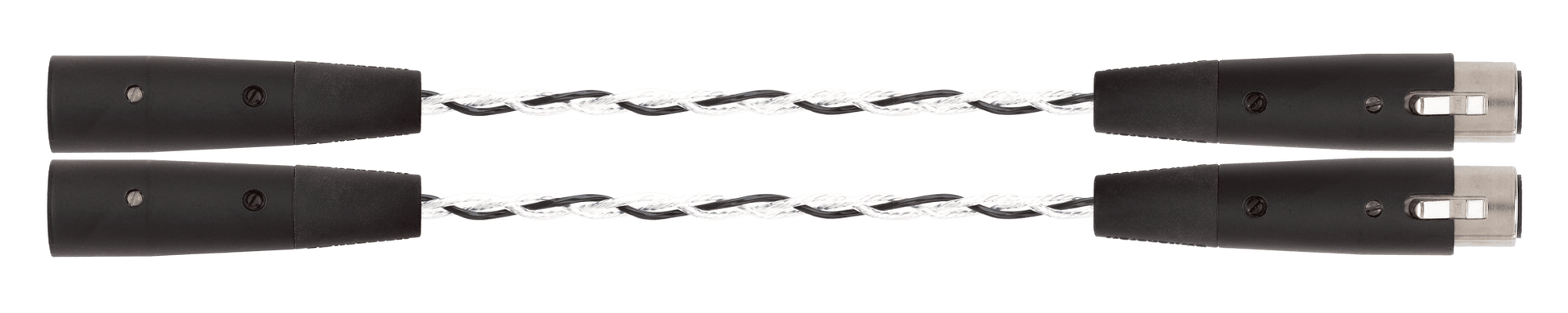

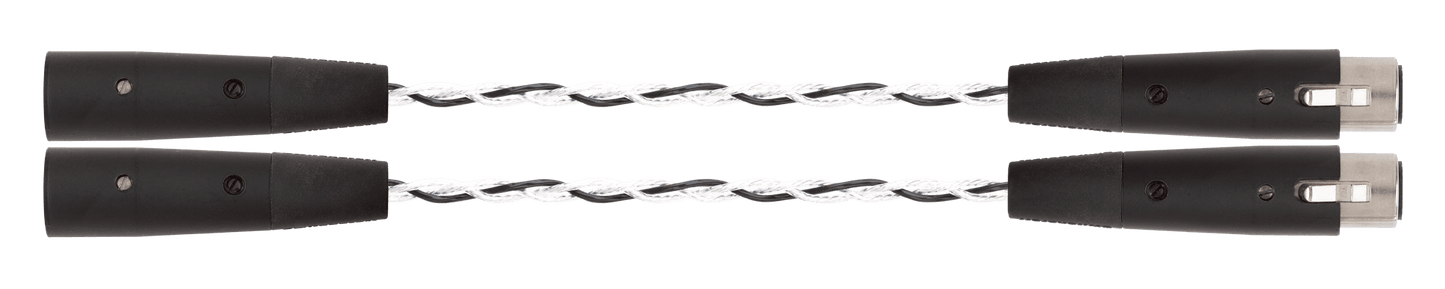

  • XLR
