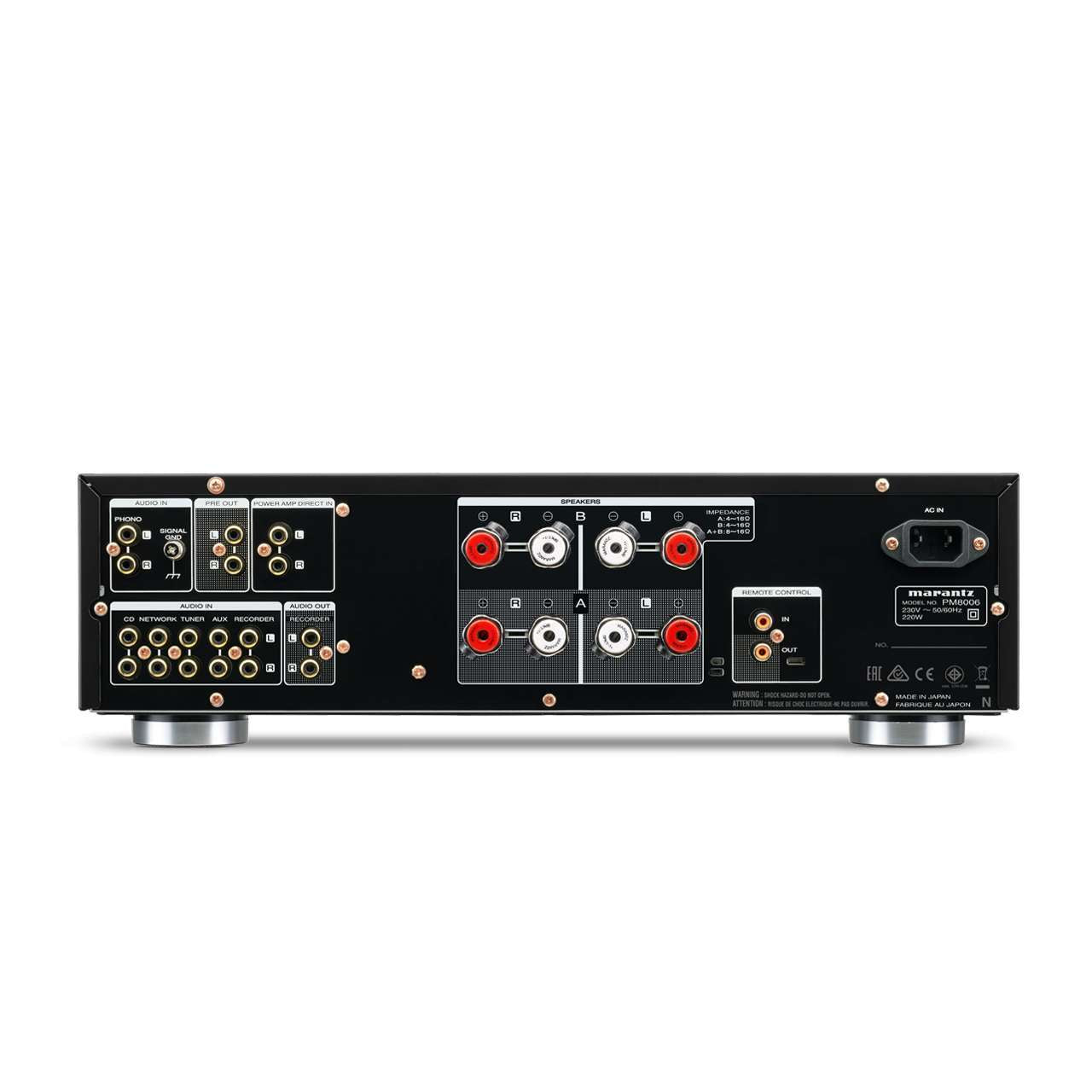

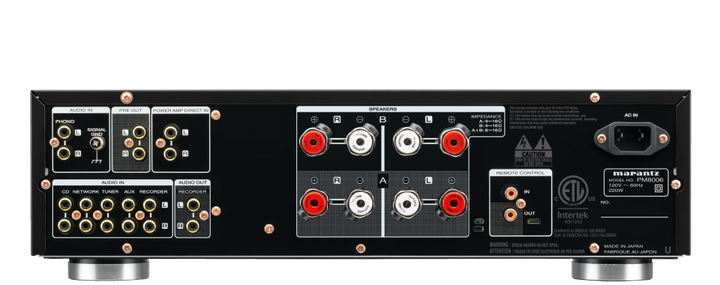

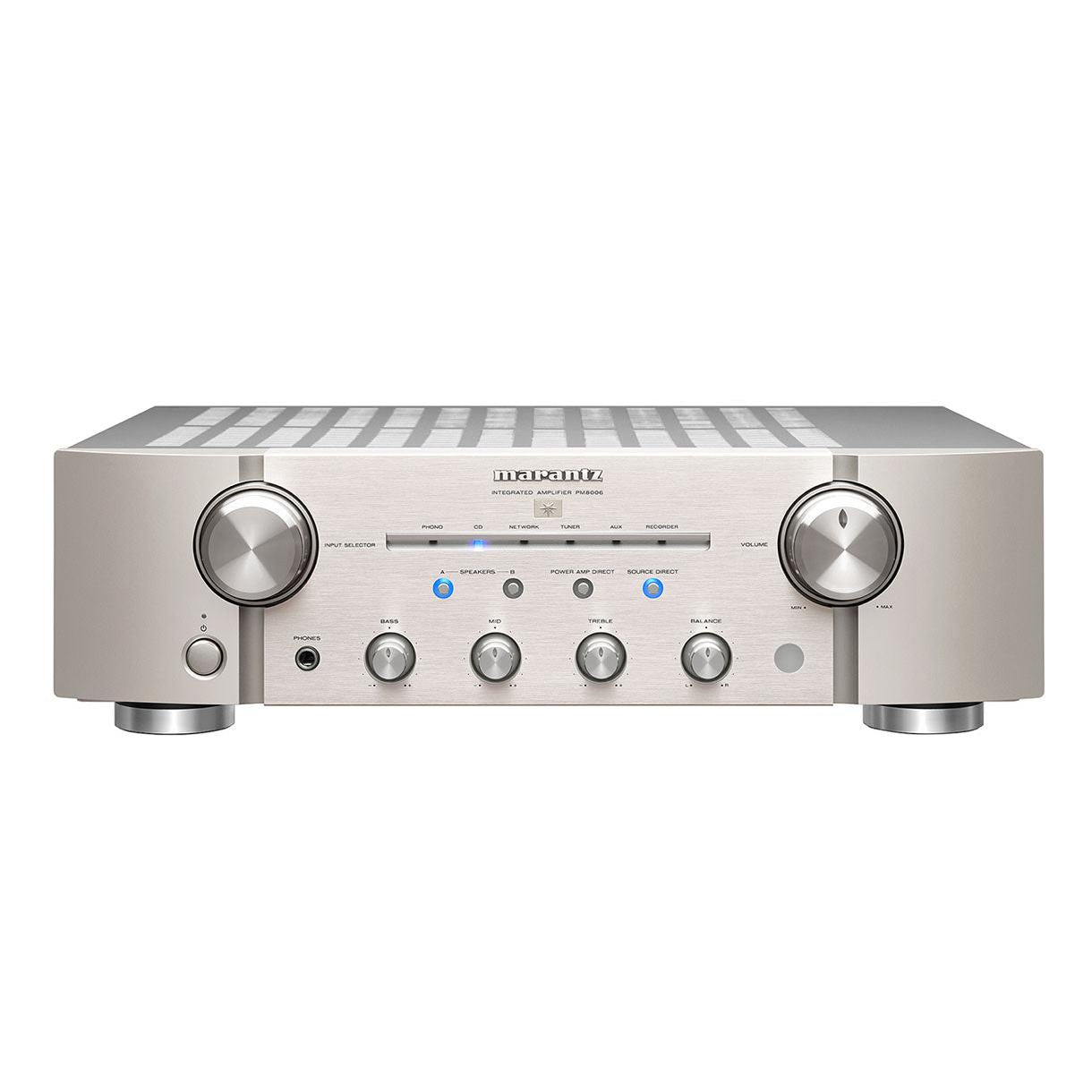

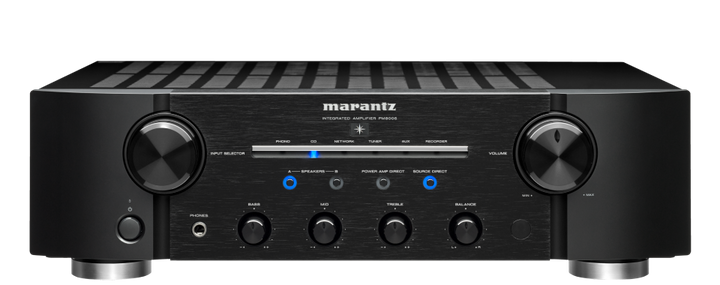

PM8006

Integrated Amplifier with new Phono-EQ, featuring exquisite Marantz sound, expertly crafted for purity and power. Not only does the PM8006 deliver enough controlled power for even the most seasoned audiophile. It delivers it all with the warm, musical sound you expect from Marantz.

With a fully discrete current feedback design, the PM8006 integrated amplifier is perfect for audiophiles wanting both excellent music quality and flexible operation. It offers a powerful 2x 70W into 8 ohm, while the symmetrical circuits ensure optimal imaging. To ensure the most involving musical experience, the amplifier uses a new Marantz-designed electric volume control for high linearity and best-in-class channel separation and to make the most of vinyl replay there’s the brand-new Marantz Musical Phono EQ phono preamp stage, designed to get the purest signal from beloved vinyls by minimized noise levels.

SPECIFICATIONS

• Power Output (8 / 4 Ohm RMS) 70 W / 100 W
• Frequency Response 5 Hz-100 kHz
• Total Harmonic Distortion 0.02 %
• Damping Factor 100
• Input Sensitivity: MM 2 mV / 47 kOhm
• Signal to Noise Ratio: MM 87 dB
• Input Sensitivity: High level 200 mV / 20 kOhm
• Signal to Noise Ratio: High level 106dB(2V input)
• Input Sensitivity: Power Amp Direct IN 1.6V / 15 kOhm
• Signal to Noise Ratio: Power Amp Direct IN 125 dB

GENERAL

• Available colors Black
• Metal Front Panel •
• Power Consumption 220 W
• Standby Consumption 0.2 W
• Auto Power off •
• Detachable Power Cable •
• Remote Control RC001PMND
• System Remote Function •
• Maximum Dimensions (W x D x H) 440 x 379 x 128 mm
• Weight 26.5
