Kimber Kable

KCTG

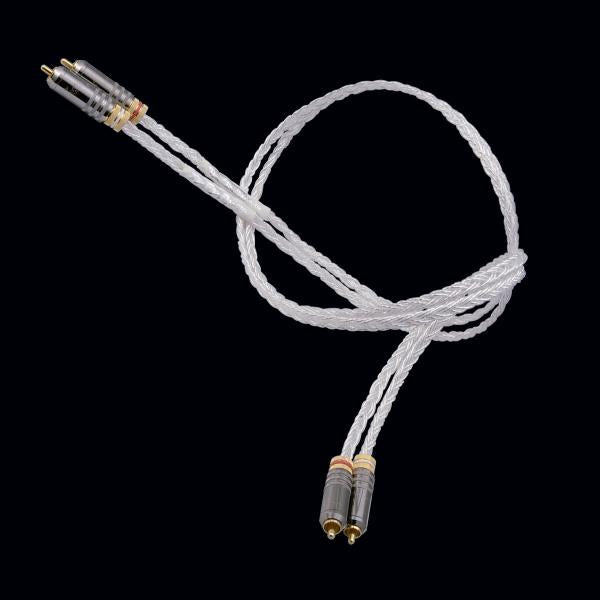

The KCTG is the six-wire braid version of the KCAG and offers an even richer sonic picture. KCTG is available with the WBT-0108 and the WBT-0110 Cu and Ag nextgen™ connectors.

Regular price $1,275.00
- +

The KCTG is the six-wire braid version of the KCAG and offers an even richer sonic picture. KCTG is available with the WBT-0108 and the WBT-0110 Cu and Ag nextgen™ connectors.

Basic Electrical Specifications

DUT: KCTG 1m terminated with WBT-0147 RCA type connectors.

  • (Cp) parallel capacitance:     pF @ 20 kHz
  • (Ls) series inductance:     µH @ 20 kHz
  • (Rdc) dc loop resistance:     Ω
  • (Xt) total reactance:     Ω @ 20 kHz
  • Frequency response ± 0.5 dB dc - MHz
  • KCTG Balanced

DUT: KCTG 1m terminated with XLR type connectors.

  • (Cp) parallel capacitance:     pF @ 20 kHz
  • (Ls) series inductance:     µH @ 20 kHz
  • (Rdc) dc loop resistance:     Ω
  • (Xt) total reactance:     Ω @ 20 kHz
  • Frequency response ± 0.5 dB dc - MHz
  • KCTG

Connector Options

  • Ultraplate Black
  • WBT-0114
  • WBT-0102 Cu
  • WBT-0102 Ag
  • XLR
