JL Audio E-Sub e110 10" Subwoofer

*Contact for purchase and more info*

Powered Subwoofer with 10-inch Subwoofer Driver, 1200 watts

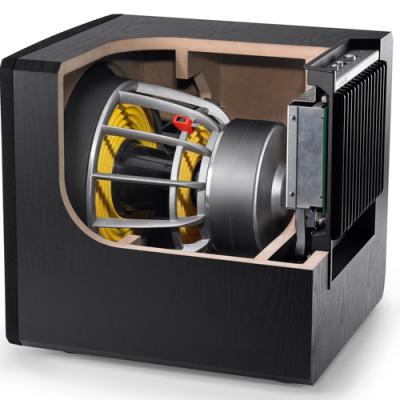

E-Sub drivers employ our exclusive DMA technology to optimize the drivers' motor strength, ensuring linear behaviour over a very long excursion range. Unlike typical steady-state modelling systems, DMA takes into account the dynamic shifts created by current flow and back EMF under real power conditions, with real program material. The payoff offered by DMA optimization is a driver that faithfully tracks its input signal, at all listening levels, leading to superior bass definition and dynamics.

Black Ash: $3,629.99

Black Gloss: $3,959.99

General Specifications

• Enclosure Type: Sealed

• Enclosure Finish: Black Ash or Gloss Black

• Frequency Response (Anechoic): 25–116 Hz (±1.5 dB)

  • −3 dB: 23 Hz / 120 Hz

  • −10 dB: 18 Hz / 165 Hz

• Effective Piston Area (Sd): 58.78 sq in / 0.0379 sq m

• Effective Displacement: 131 cu in / 2.1 L

• Amplifier Power: 1200 W RMS short-term

• Power Mode: Off, On, or Automatic (Signal-Sensing)

• Light Modes: N/A

Signal Processing

• Unbalanced Inputs: Stereo or Mono (two RCA jacks)

• Balanced Inputs: N/A

• Speaker/High-Level Inputs: Stereo or Mono (removable plug)

• Input Grounding: Isolated or Grounded

• Input Modes: N/A

• Level Control: Variable, from full mute to +15 dB over reference gain

• Filter Mode(s): Low-Pass

• Filter Slope(s): 24 dB/octave

• Filter Frequency Range: 25–130 Hz

• Filter Defeat Function: Yes

• Polarity: 0 or 180 degrees

• Phase: Variable, 0–280 degrees, referenced to 80 Hz

• Extreme Low Frequency (E.L.F.) Trim: N/A

• Line Outputs: Stereo or Mono (two RCA jacks), High-Pass or Pass-Through

• Output to Slave: N/A

• Calibration Mode: N/A

Physical Specifications

• Width (W): 13.5 in / 343 mm

• Height (H): 14.24 in / 362 mm

• Depth (D): 16.51 in / 419 mm

• Net Weight: 52.7 lb / 23.9 kg
