Maximum Voltage:
90-125 VAC r.m.s. unregulated (US)
220-240 VAC r.m.s. unregulated (EU, AS, AU)
Input Current Ratings:
Maximum Continuous Current: 20A (US, AS)
Maximum Continuous Current: 16A (EU, AU)
Output Current Ratings:
Max Current/Outlet: 20A (US, AS)
Max Current/Socket: 16A (EU, AU)
Transient Suppression:
Maximum Transient Protection: 40,000 A @ 8/50 μs
Over-Current Protection:
Hydraulic Electromagnetic Breaker
Wiring System:
8 gauge ArNi® VTX™ Buss System
10 gauge ArNi® VTX™ Wiring
Ratings: 600 V 105° C
Noise Suppression:
Input to Output (100 kHz – 30 MHz): > 50 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 60 dB reduction
|

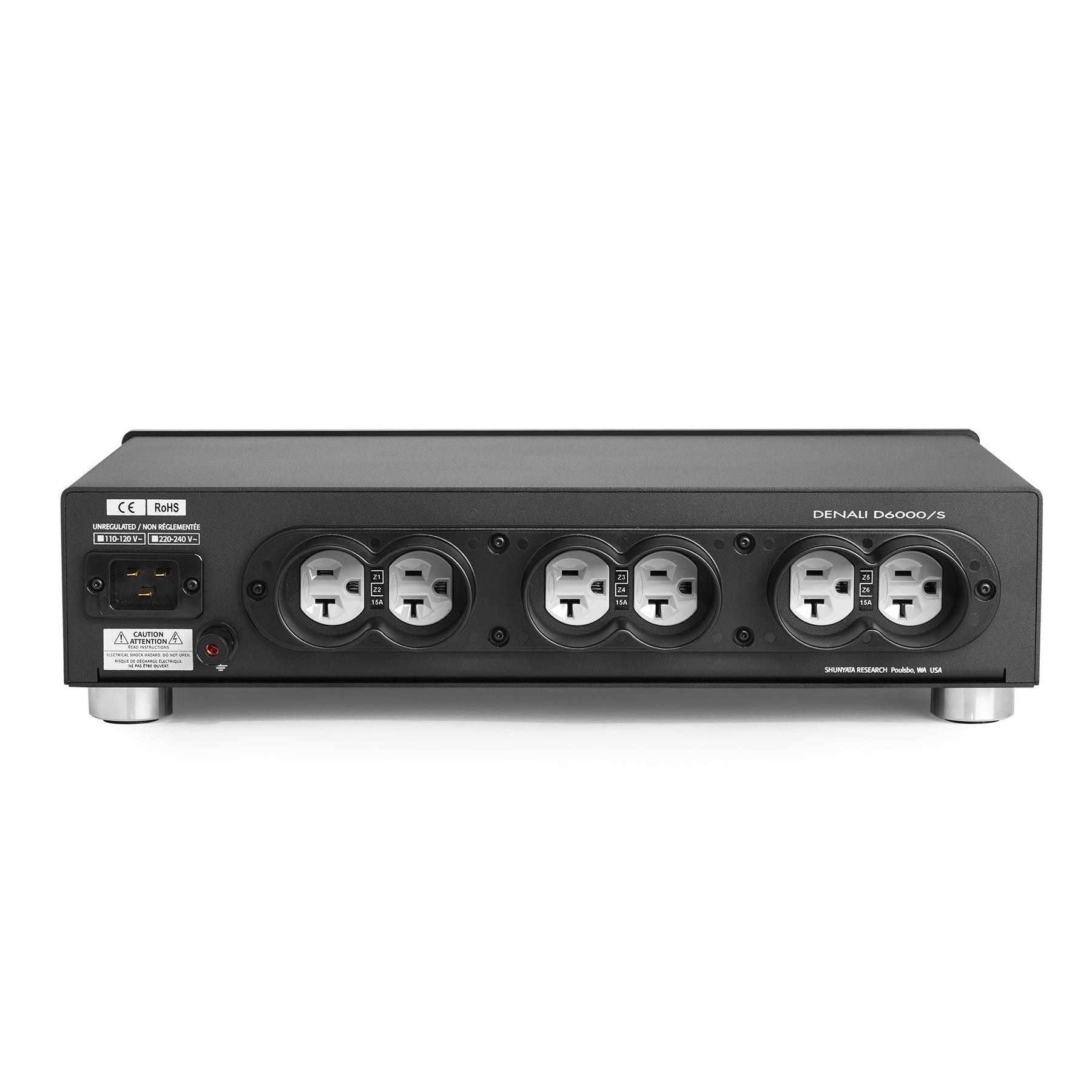

Outlets & Connectors:
Zones of Isolation: 6 Zones
Inlet: IEC C19RUS Outlets: 6 NEMA5-20R
AS Outlets: 6 NEMA 5-20R
EU Sockets: 6 CEE 7/3
AU Sockets: 6 AS/NZS 31123
Vibration Control:
Vibration dampening panels (internal)
AC outlet dampening gaskets
Shunyata Isolation SSF-38 Footer
Construction:
Aluminum and steel chassis
Anodized, aluminum faceplate
GPNR:
Length: 80 mm
Diameter: 38 mm
Dimensions:
Width: 17.0 inches (43.2 cm)
Depth: 10.0 inches (25.4 cm)
Height: 4.4 inches (11.2 cm)
Weight: 17.5 lbs (7.95 kg)
|
