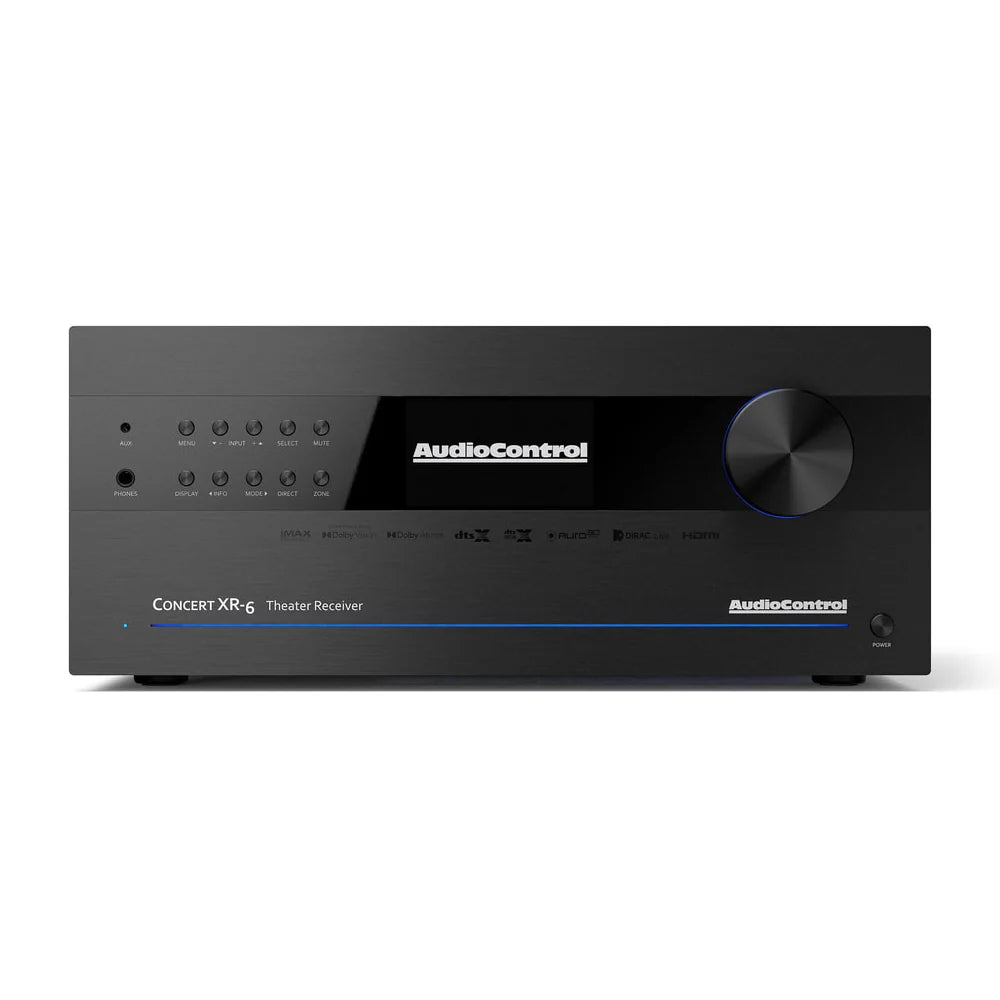

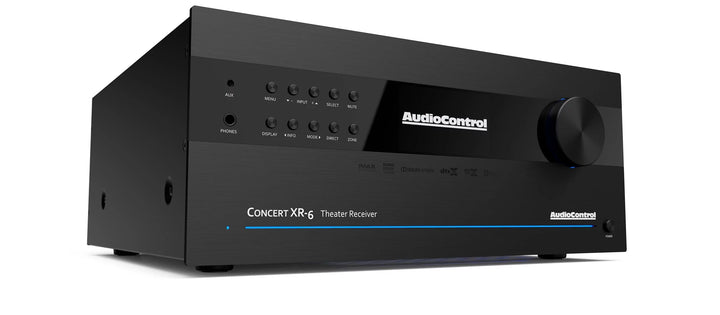

AudioControl’s high-performance AV receivers enable home theater specialists and integrators to create systems that deliver new levels of precision, power and control. The Concert XR-6 supports the most sought after immersive surround formats, such as Dolby Atmos, Auro-3D, DTS:X, and IMAX Enhanced, with 16-channels of unbalanced outputs including four user-configurable outputs. The Concert XR-6 offers a full complement of inputs for connection to the latest audio/video components.
The Concert XR-6 houses the very latest in audio and video processing technology, featuring Dirac Live® room correction to overcome acoustic anomalies in any space, and ESS SABRE PRO DACs that ensure unprecedented levels of detail and clarity along with earth-shaking, authoritative bass response. Seven amplified channels deliver 100 watts per channel.
Enthusiasts will enjoy intuitive app-based control, Google Chromecast®, Apple® AirPlay 2, Roon Ready, Bluetooth with aptXHD® support, Wi-Fi streaming connectivity options, and integrated web-based configuration.
All of this outstanding technology has been wrapped quite elegantly within a beautifully designed chassis, distinguishing AudioControl’s Immersive AV Receiver lineup from any other solution.
Features
- 9.1.6 decoding for Dolby Atmos and DTS:X
- IMAX Enhanced, Auro-3D
- 4K UHD / HDMI 2.0b and HDCP 2.2
- ES9026PRO SABRE audiophile DACs (124 dB of dynamic range)
- Dirac Live® & Dirac Live® Bass Control (Multi Subwoofer)
- 7 channels of high power Class AB amplification
- Supports Dolby Vision, HDR10+, HDR10, and HLG
- 4 user-assignable output channels
- 7 HDMI inputs / 3 HDMI outputs including Zone 2 (eARC compatible)
- IP, IR, RS232, and Wifi control
- Apple® AirPlay 2
- Google Chromecast built-in streaming support
- Bluetooth® with aptXHD® support
- Roon Ready and supports MQA
Specifications

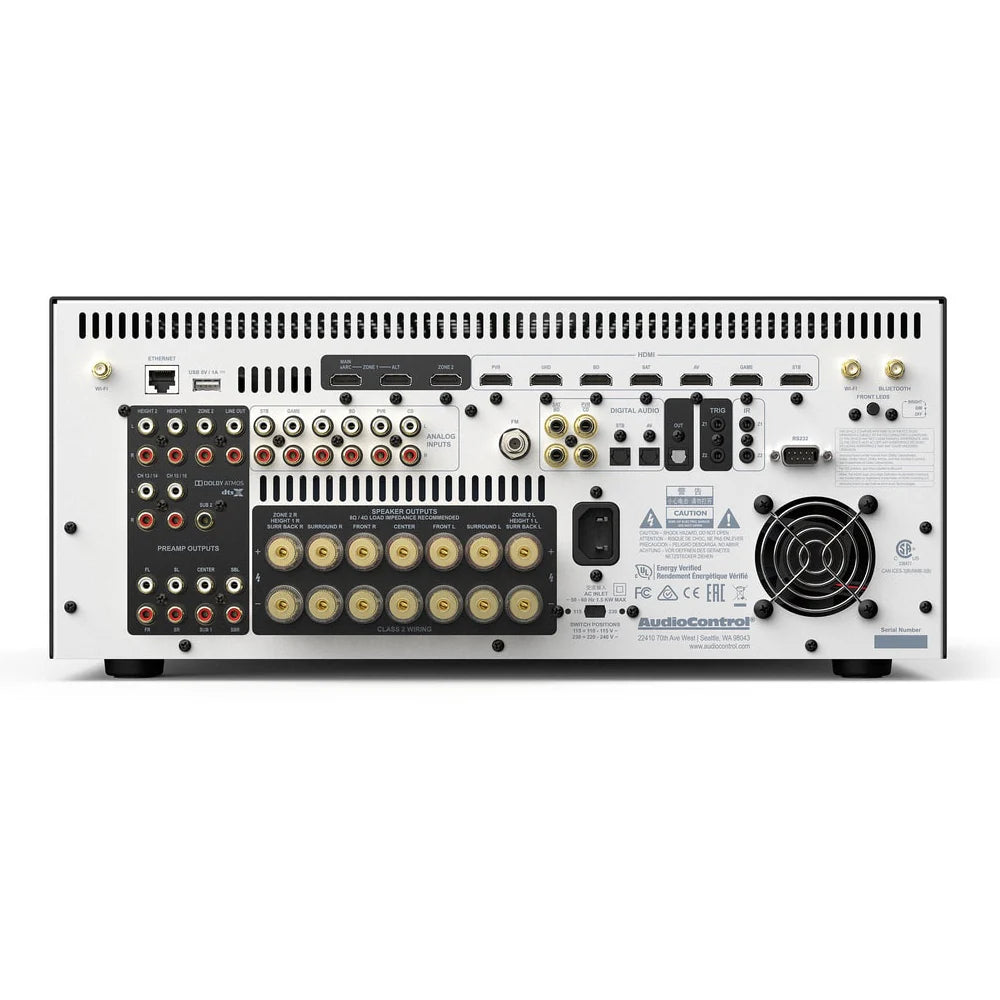

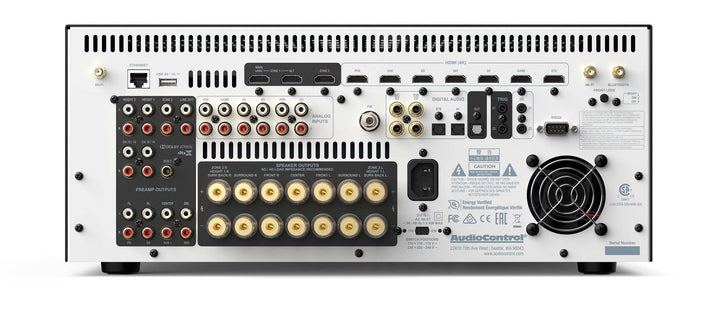

Inputs
- Audio Inputs: 7 HDMI, 6 RCA Phono, 4 Coax SPDIF, 2 Toslink
- Nominal sensitivity: 1V, 2V, 4V (user selectable)
- Input Impedance: 47 kΩ
- Signal to Noise (A-wtd ref 100W) normal/stereo direct: 100 dB/110 dB
- Frequency Response: 20 Hz – 20 kHz ± 0.2 dB
- Video Inputs: 7 HDMI (HDMI 2.0b / HDCP 2.2)
Outputs
- Amplifier Channels: 7
- Continuous power output, per channel, 8Ω / 4Ω: 100W/100W
- Minimum Speaker Load: 4Ω
- Preamp Audio Outputs: 16 channels (balanced XLR), 16 channels (unbalanced RCA), 2 channels zone 2 (unbalanced RCA), 1 Toslink
- Nominal output level: 1 Vrms (max. 5 Vrms)
- Output impedance: 560 Ω
- THD+N (20 Hz – 20 kHz): -100dB
- Main Video Outputs: Dual (2) HDMI (eARC support)Second Zone Output: 1 HDMI
- Headphone Output: 1 1/4″
Control
- IP Ethernet
- Wifi
- RS232 Serial Control
- 12 Volt Trigger Outputs: 2
- IR Receiver Inputs: 2
General
- Power consumption (standby): <0.5W
- Power consumption (idle, typical): 90W (340 BTU/hour)
- Power consumption (maximum): 1500W (5200 BTU/hour
Weights & dimensions
- Dimensions (including terminals and feet): 17”W x 17.5”D x 7.3”H (4U)
- Weight: 40.3 lbs. (18.3 kg)
