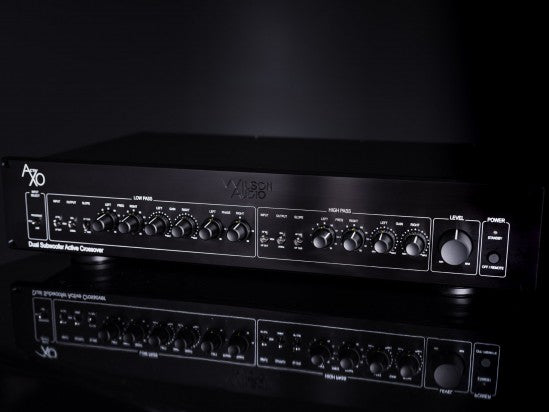

ActivXO
The ActivXO is the long-awaited and thoroughly updated replacement for Wilson’s revolutionary Controller. It is a two-channel, fully analogue electronic crossover with an array of features. It can be used in conjunction with a dedicated music system, or as the subwoofer control unit in a home theater system. In systems used for enjoyment of music and surround film, the ActivXO is configurable to accommodate both —optimally and simultaneously.
The ActivXO is the long-awaited and thoroughly updated replacement for Wilson’s revolutionary Controller. It is a two-channel, fully analogue electronic crossover with an array of features. It can be used in conjunction with a dedicated music system, or as the subwoofer control unit in a home theater system. In systems used for enjoyment of music and surround film, the ActivXO is configurable to accommodate both —optimally and simultaneously.
The ActivXo accepts both single-ended and balanced inputs, and can output to one or a stereo pair of subwoofers for the most demanding applications. It can be used with any of Wilson’s subwoofers, and is included with the purchase of the WAMM Master Chronosonic.

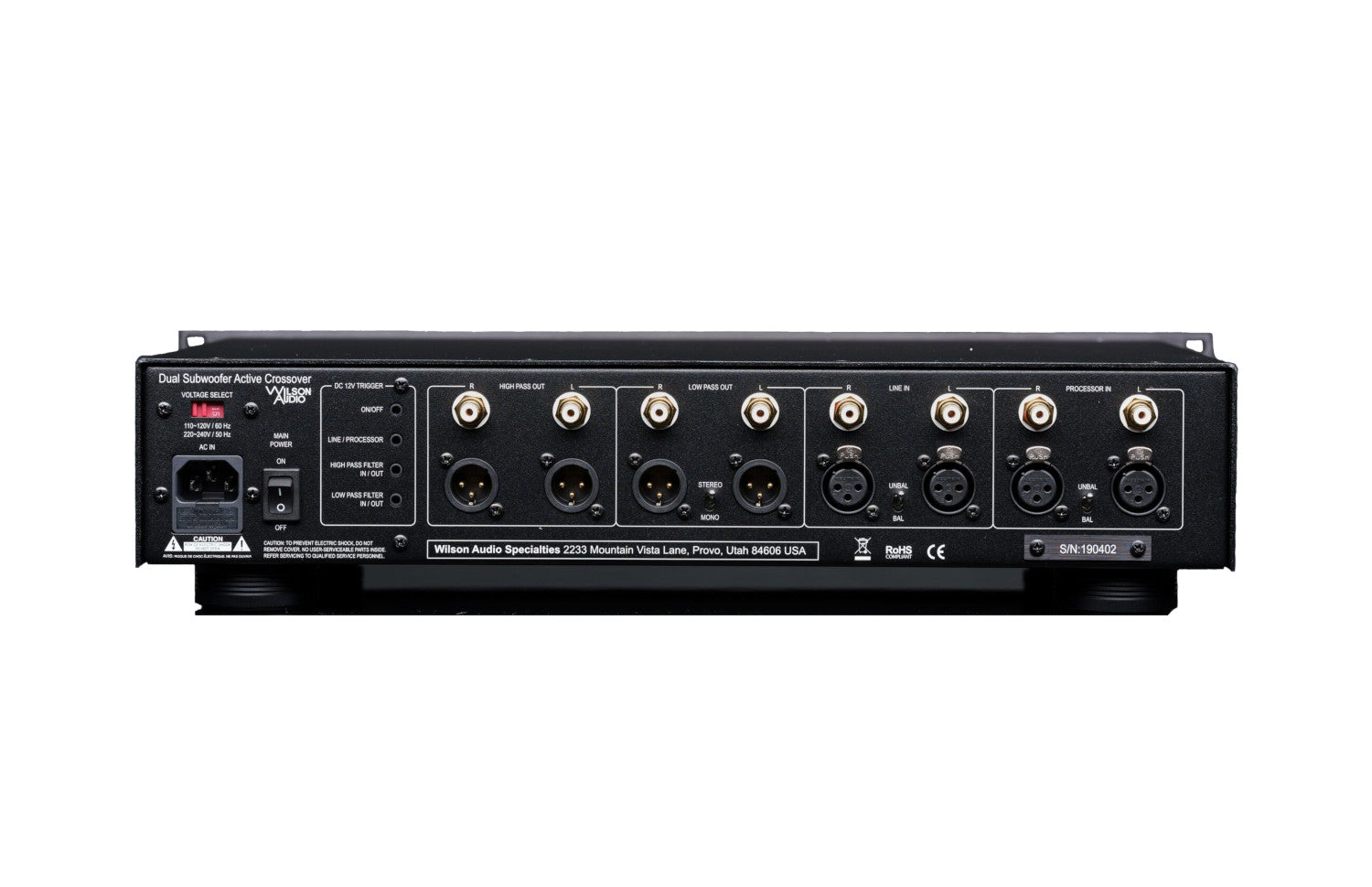

Connections
- Inputs: Balanced and single-ended, Processor
- Outputs: High-pass, balanced and single-ended, 2 stereo Low-pass, balanced and single-ended, 2 mono
Measurements
- Input Impedance: 22k ohms single-ended, 50k ohms bal.
- Low Pass Filter: Level & Frequency (30 to 150 Hz) Adjustable, 12 dB or 18 dB/Octave
- High Pass Filter: Level & Frequency (30 to 150 Hz) Adjustable, 6 dB or 12 dB/Octave
- Phase: 0 - 180 degrees, continuously variable
Overall Dimensions
- Width: 18.8 in. (482mm)
- Height: 4.5 in (155.4mm) - Includes feet
- Depth: 11.5 in. (287.4mm) - Includes knobs
- Weight: 16.75 lbs (7.6 kg)
- Shipping (approx): 2 lbs. (10 kg)
