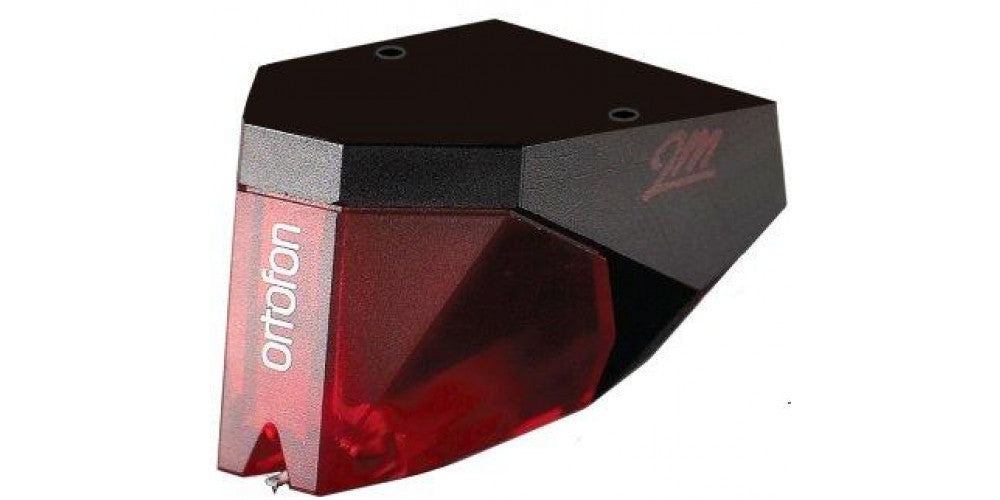

2M Red

2M Red

$134.00 CAD
$134.00 CAD
Description

Moving Magnet phono cartridge

It has been engineered to the highest standards and is congruent with the unrelenting commitment of Ortofon to provide the most precise and accurate reproduction possible without coloration.

The 2M series of cartridges feature Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.

The 2M Red uses an improved engine, which provides an increased output of 5.5mV. 2M Red features a tipped elliptical diamond.
Specifications
  • Output voltage at 1000 Hz, 5cm/sec. - 5,5 mV
  • Channel balance at: 1 kHz - 1,5 dB
  • Channel separation at: 1 kHz - 22 dB
  • Channel separation at: 15 kHz - 15 dB
  • Frequency range at: - 3dB - 20-22.000 Hz
  • Frequency response: 20-20.000 Hz + 3 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force: 70 µm
  • Compliance, dynamic, lateral: 20 µm/mN
  • Stylus type: Elliptical
  • Stylus tip radius: r/R 8/18 µm
  • Tracking force range: 1,6-2,0g (16-20 mN)
  • Tracking force, recommended: 1,8 g (18 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 1,3 kOhm
  • Internal inductance: 700 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 150-300 pF
  • Cartridge colour, body/stylus: Black/Red
  • Cartridge weight: 7,2 g
  • Replacement stylus unit: 2M Red (interchangeable with 2M Blue and 2M Silver)
