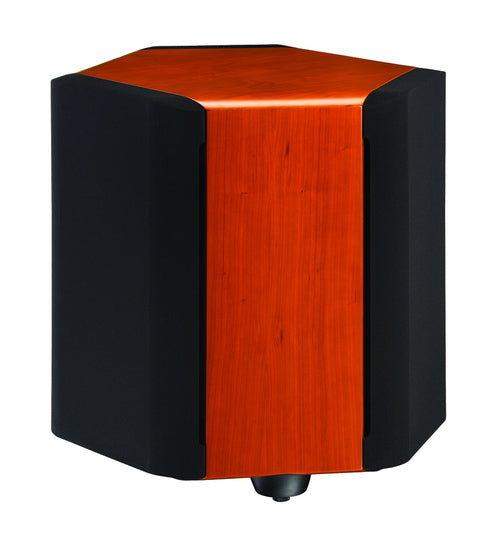

Signature SUB 2

Hexagonal cabinet with multiple high-excursion drivers radially aligned in a Vibration-Cancelling Design Architecture, patented built-in Ultra-Class-D™ power amplifier with Power Factor Correction, sealed enclosure, PBK interface.

SUB 2’s Universal Input Power feature allows the subwoofer to operate connected to any line voltage between 108 volts and 265 volts. In order to achieve maximum output, connect to a 240-volt line. (See Dealer for additional information.)

• Amplifier: Connected to a 240-volt outlet, 9,000 watts Dynamic Peak / 4,500 watts RMS
• Amplifier Features: Auto-On / Off, Trigger On / Off, soft clipping, electrical shorting protection, thermal protection, Room Correction
• Paradigm Perfect Bass Kit™ (Included)
• Low Pass Filter Frequency: Variable 35 Hz - 150 Hz; Bypass Option
• Low Frequency Drivers: Six 254-mm (10 in) RCR™ mineral-filled co-polymer polypropylene cones, FEA-optimized overmolded thermoplastic foam-surrounds, 76-mm (3 in) ten-layer long-excursion voice coils, high-temperature composite Nomex® formers, dual advanced spiders, 25.2-lb (10.5 kg) hard ferrite magnet / motor structure, massive centre heatsink and oversize pole piece, AVS™ die-cast heatsink chassis
• Low Frequency Extension: 7 Hz (DIN)
• Sub / Sat Phase Alignment: Variable 0° - 180°
• Sensitivity: Room / Anechoic: 100 mV mono /
• Impedance: RCA: 10k ohms; XLR: 20k ohms
• Finishes: Cherry, Piano Black, Black Ash
• Inputs: RCA (S/E) Left and Right or Sub-Out / LFE or Balanced XLR. From Sub-Out / LFE-Out of preamp, processor or other line-level source
• Weight: 230 lbs. (106 kg)
• Dimensions: HxWxD - Includes grilles and feet, 24.5" × 23.75" × 22.375" , (62.2cm × 60.4cm × 57.8cm)
