The Vivaldi CD/SACD Transport completes a system that delivers extraordinary sound from any digital source.
Features:
- Utilises the latest generation dCS Digital Processing Platform for state-of-the-art measured performance and unrivalled fidelity
- Plays Red Book CDs in their native 16/44.1 format and upsamples the data to either DSD or DXD or DSD/128
- Plays SACDs in their native DSD format and downsamples the data to 16/44.1 format
- Improved power supplies give lower running temperature and superior tolerance to AC supply variations
- Multi-stage regulation ensures sensitive clock / PLL circuitry is unaffected by digital interference
- Separate power circuits for the digital processing board and CD/SACD mechanism ensure clean power to these sections
- Aerospace-grade machined aluminium chassis fitted with tuned acoustic damping panels reduces magnetic effects and vibration
Specifications:
-
Type: Upsampling CD/SACD Transport
-
Colour: Silver or Black
-
Mechanism: Dual laser CD/SACD mechanism (TEAC VRDS NEO™ VMK3)
-
Dimensions: 444mm/17.5” x 435mm/17.2” x 196mm/7.8”. Allow extra depth for cable connectors
-
Weight: 23.2kg/51.1lbs
-

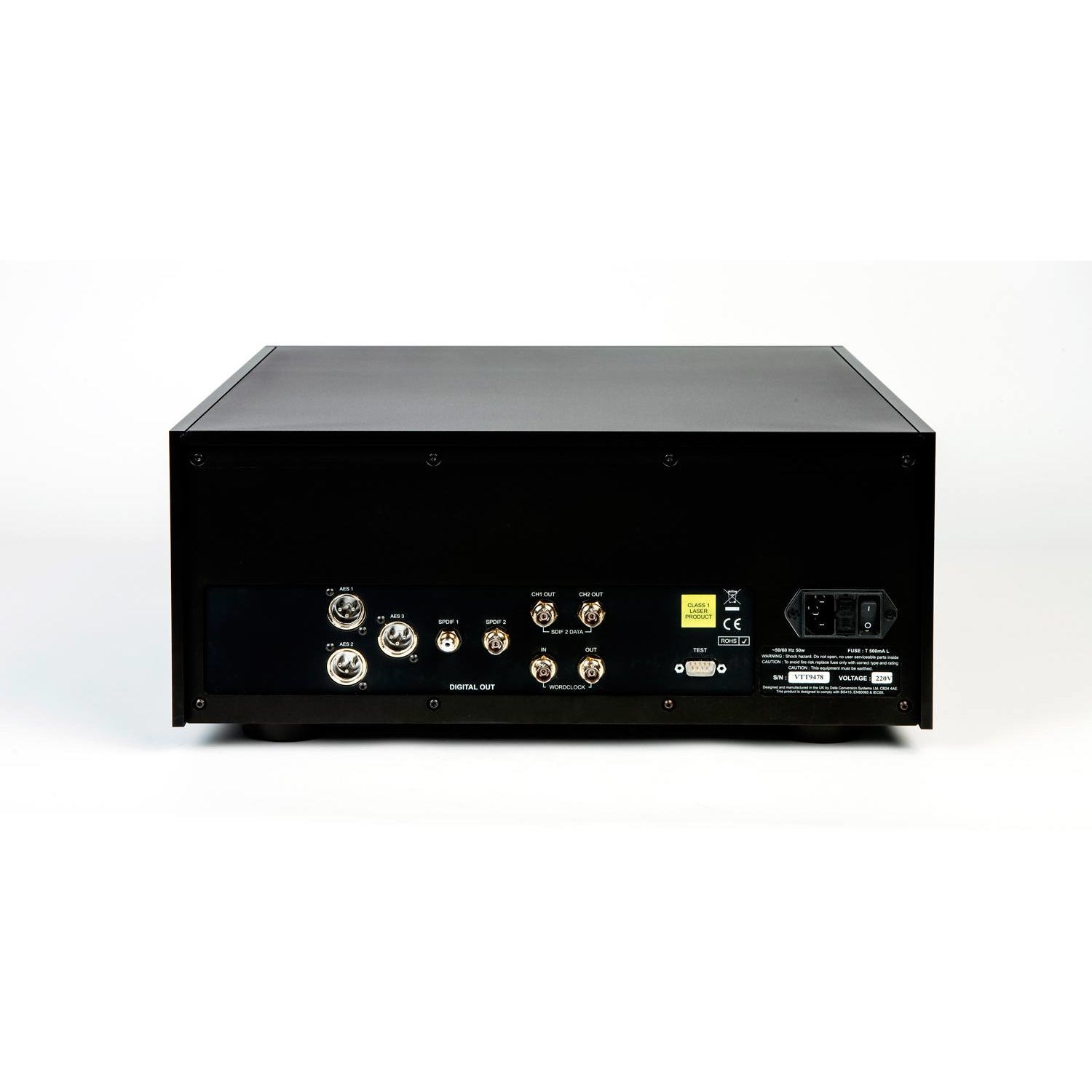

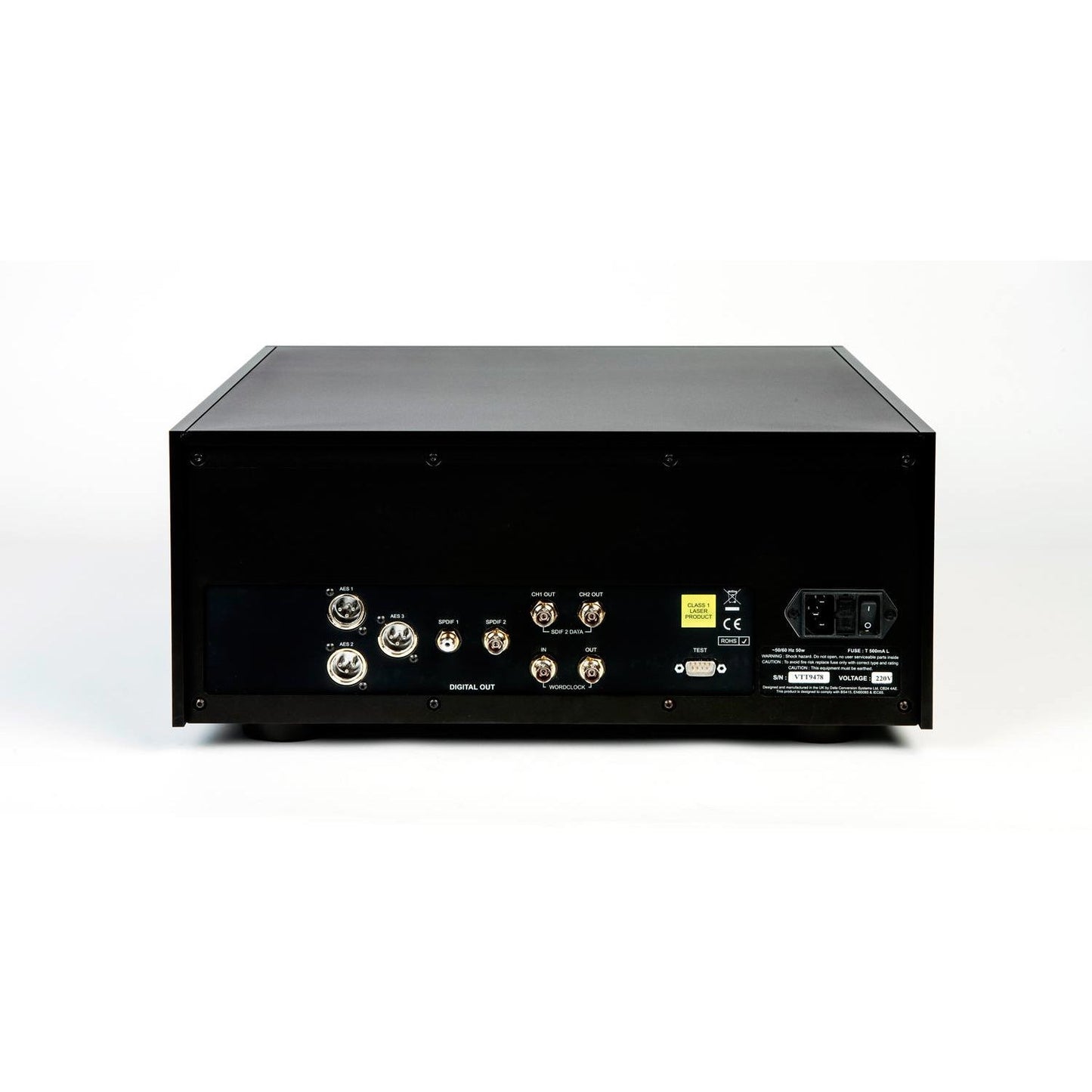

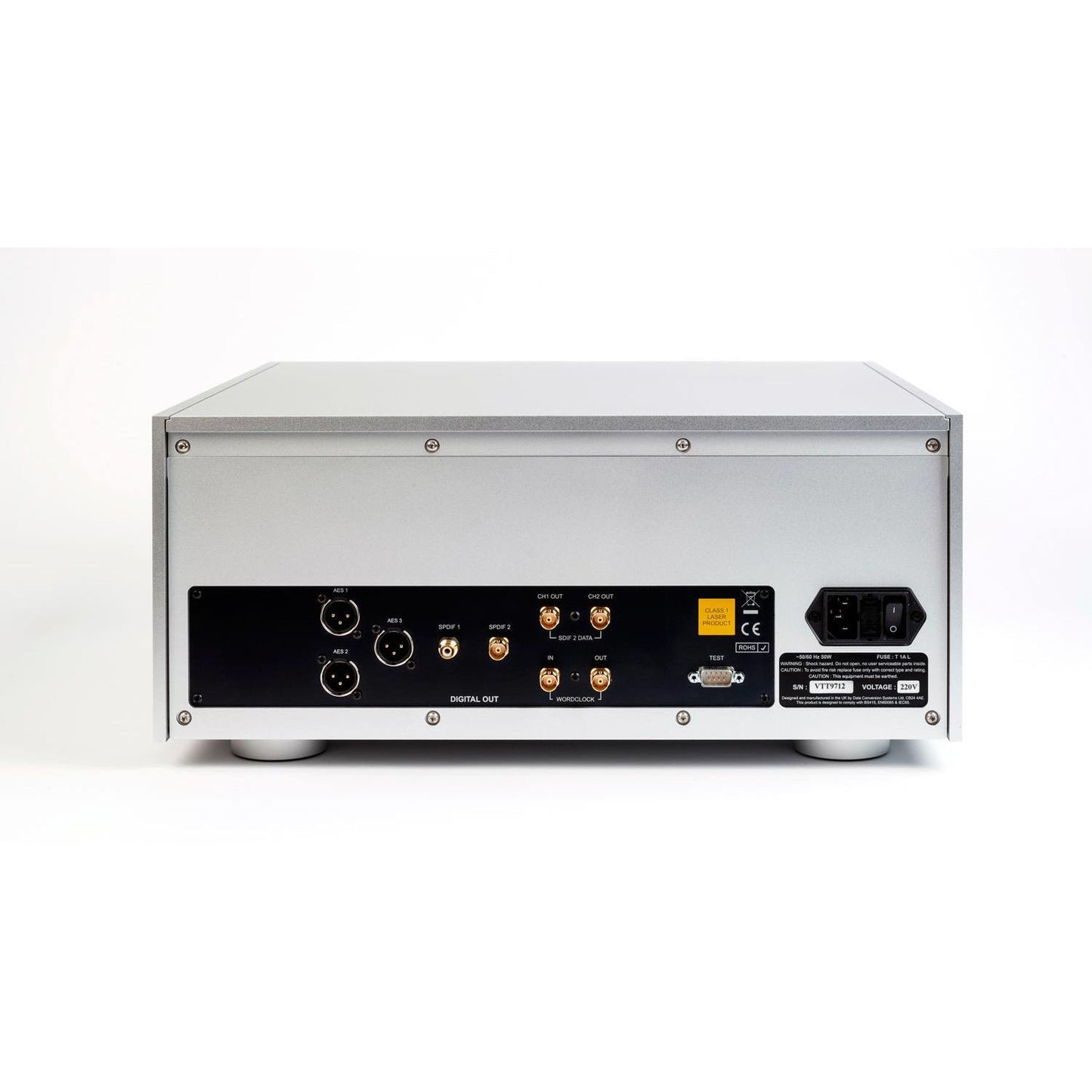

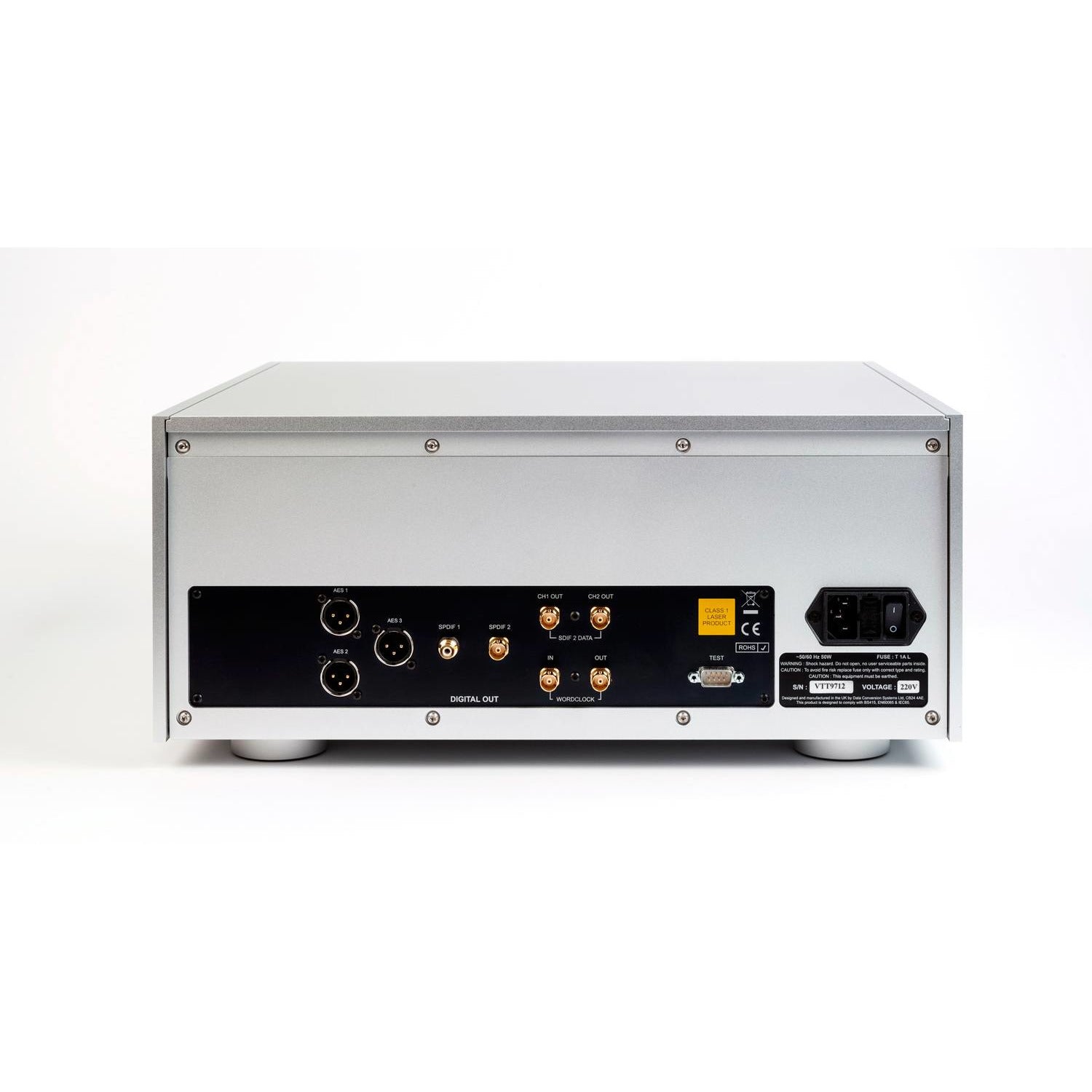

Digital Outputs: 1 x Dual AES Pair on 2 x 3-pin male XLR connectors (AES1+2). While a SACD is playing, the interface outputs DSD/64 data. While a CD is playing, the Settings > Upsample Mode menu page sets the interface to output either encrypted DSD data (1 bit at 2.822MS/s) or DXD data (24 bits at 352.8kS/s) or DSDx2 data (1 bit at 5.644MS/s); 1 x AES interface on 3-pin male XLR connector (AES3), outputs 16/44.1 data, whether a CD or SACD is playing; 2 x SPDIF interface on 1 x RCA Phono and 1 x BNC connectors, each outputs 16/44.1 data, whether a CD or SACD is playing; 1 x SDIF-2 interface on 2 x BNC connectors, outputs 16/44.1 data whether a CD or SACD is playing
-
Upsampling Rates: CD data may be upsampled to DSD/64, DXD (24/352.8) or DSD/128
-
Wordclock I/O: 1 x Word Clock Input on BNC connector, accept standard Word Clock at 44.1, 88.2 or 176.4kHz. Sensitive to TTL levels. Lock range is +/-300ppm; 1x Word Clock Output on 1 x BNC connector. With the Transport in Master mode, a TTL-compatible Word Clock is output
-
Clock Accuracy: Better than +/-10 ppm when shipped (not temperature compensated)
-
Software Updates: Updates are loaded directly from CD-R
-
Local Control: dCS Universal Remote handset is supplied with Vivaldi DAC. RS232 (controlled by a Vivaldi Upsampler / app or a third party device)
-
Power Supply: Factory set for 100, 115, 220 or 230V AC, 50-60Hz
Power Consumption: 28 Watts typical / 40 Watts maximum
