Audio Research

LS28

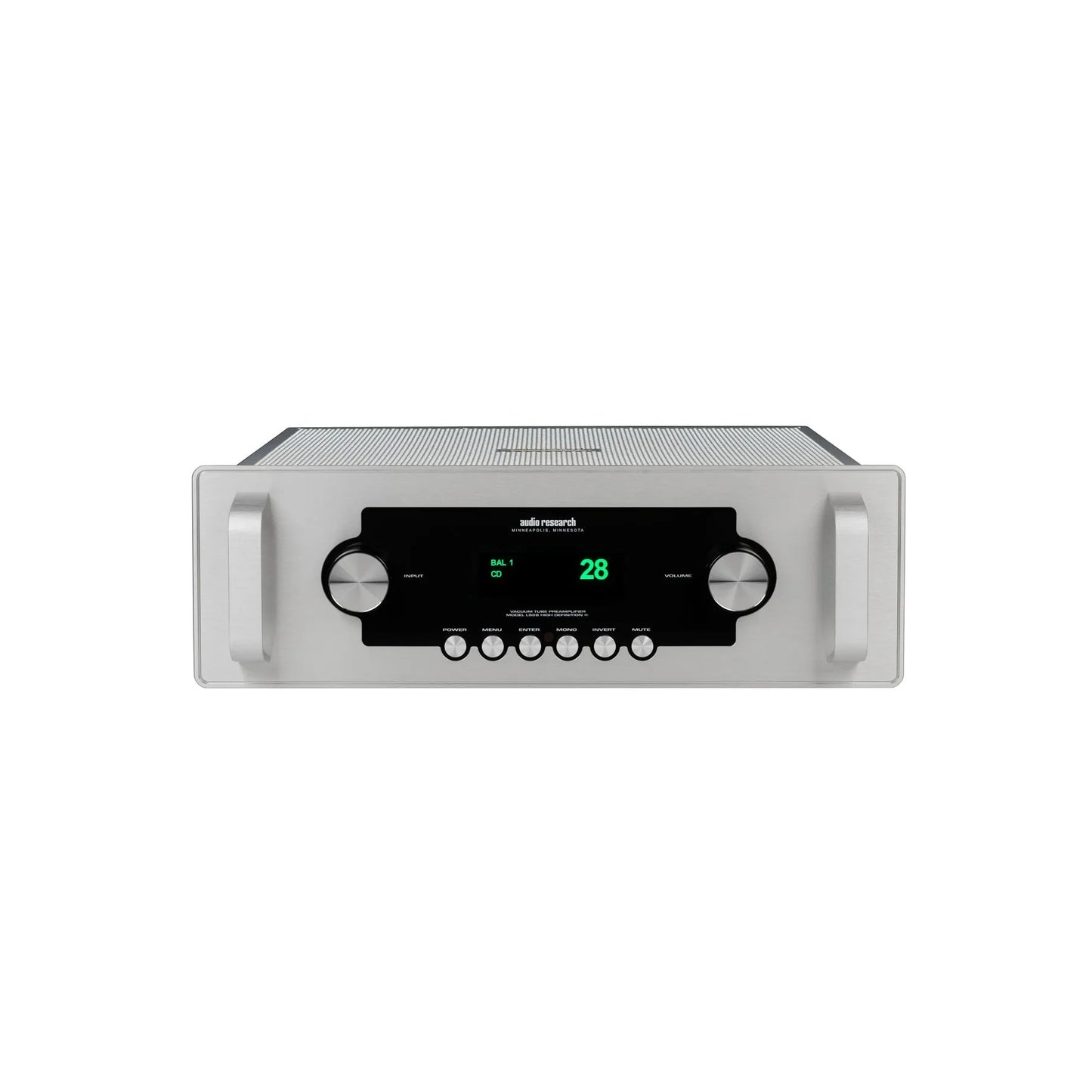

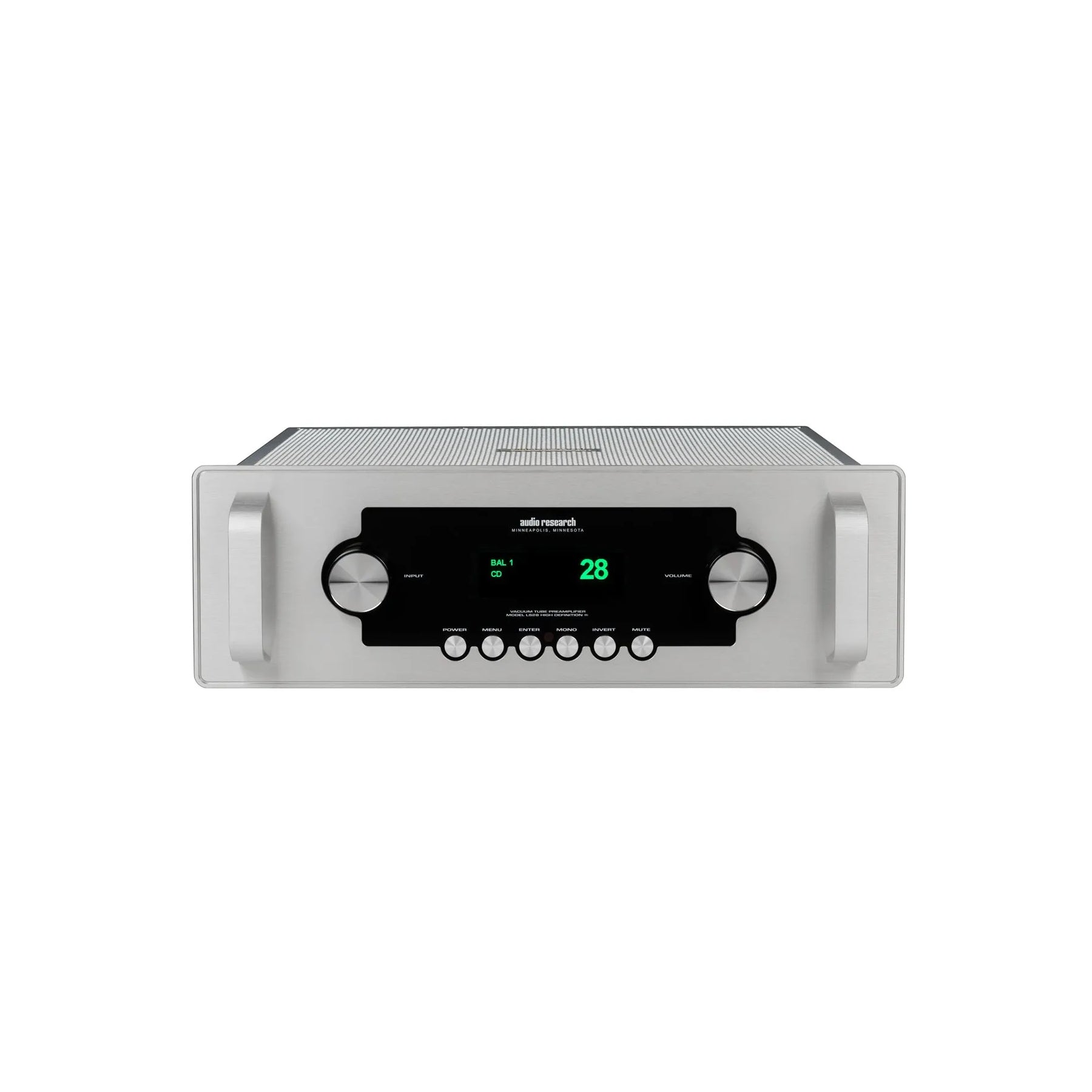

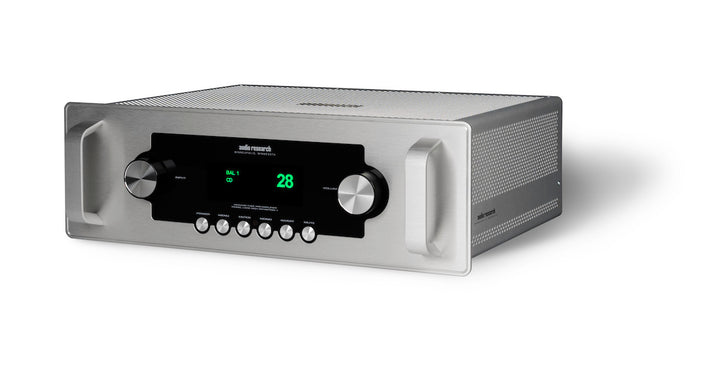

The LS28 line stage is a flexible and intuitive preamplifier. Four balanced and four single-ended inputs, and two sets of both balanced and single-ended outputs, allow maximum connectivity. At the heart of the LS28 are four 6H30 vacuum tubes in the analog circuit. While the LS28 is the perfect match for any Audio Research amplifier, it has been designed to work with nearly any amplifier on the market today. **Price In USD**

Regular price $7,500.00
- +

The LS28 line stage is a flexible and intuitive preamplifier. Four balanced and four single-ended inputs, and two sets of both balanced and single-ended outputs, allow maximum connectivity. At the heart of the LS28 are four 6H30 vacuum tubes in the analog circuit. While the LS28 is the perfect match for any Audio Research amplifier, it has been designed to work with nearly any amplifier on the market today. **Price In USD**

  • FREQUENCY RESPONSE: +0-3dB, 0.4Hz to 200kHz at rated output (Balanced, 200k ohms load)
  • THD+NOISE: Less than .007% at 2V RMS BAL output.
  • NOISE: Less than -100dBv at max volume (103).
  • DYNAMIC RANGE: 122dB (AES17).
  • CROSSTALK: -105dB
  • GAIN: Main output: 18.7dB balanced output. (9.3dB SE output.)  Record output: 0dB (Processor input: 0dB balanced out).

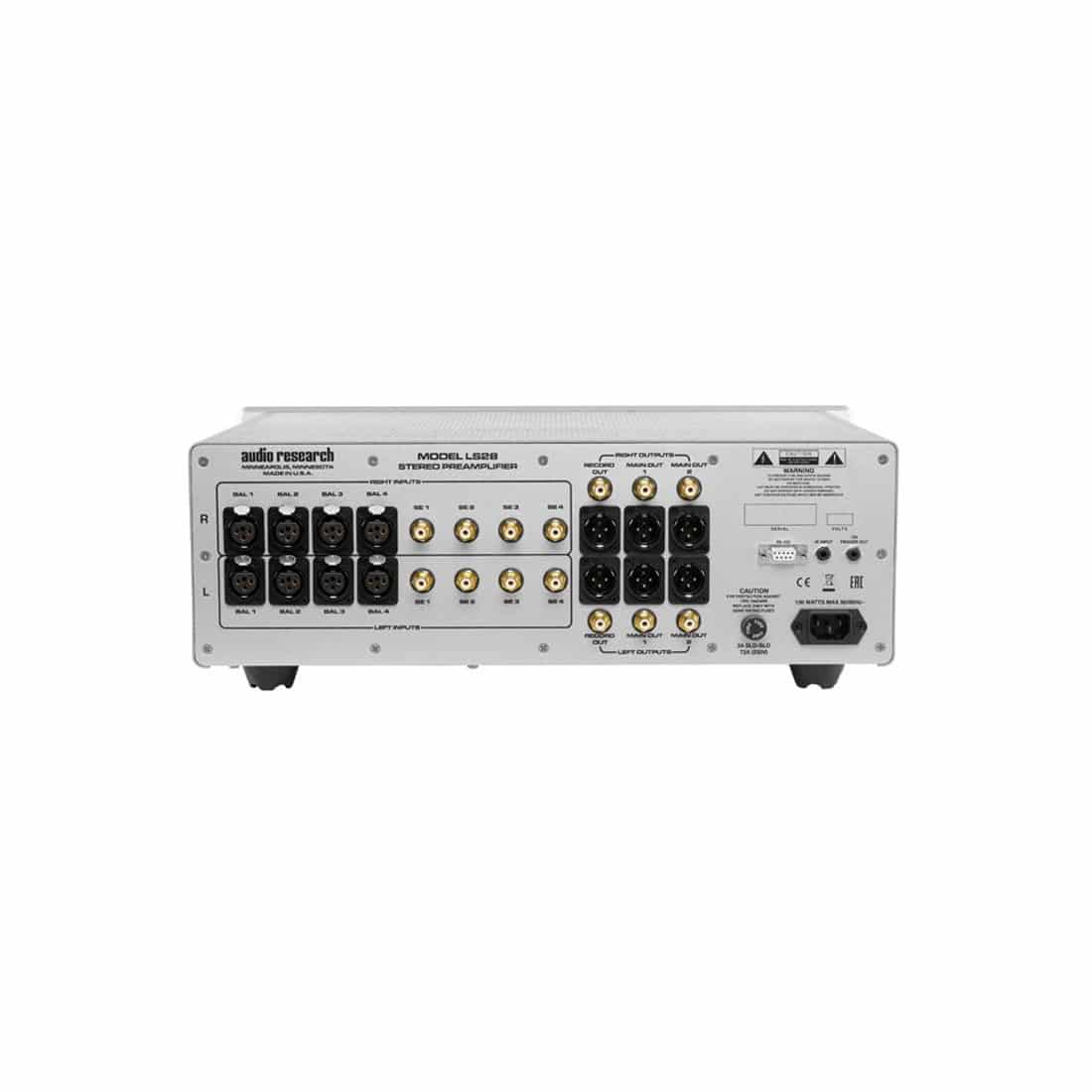

  • INPUT IMPEDANCE: 100K ohms Balanced, 50K ohms SE. 8 Inputs - 4 balanced, 4 single-ended.
  • OUTPUT IMPEDANCE: 600 ohms Balanced, 300 ohms SE Main (2), 20K ohms minimum load and 2000pF maximum capacitance. Outputs (3): 2 Main, 1 Record (XLR and RCA connectors).
  • OUTPUT POLARITY: on-inverting.
  • MAXIMUM INPUT: 16V RMS BAL, 8V RMS SE.
  • RATED OUTPUTS: 2V RMS (1V RMS SE) 1Hz to 200kHz into 200K ohm balanced load (maximum balanced output capability is 17V RMS at less than 0.5% THD at 1kHz).
  • CONTROLS: Rotary volume selector (103 steps) and rotary input selector. Push buttons: Power, Menu, Enter, Mono, Invert, Mute
  • POWER SUPPLIES: Electronically regulated low and high voltage supplies.  Automatic 45 sec. warm-up/brown-out mute.  Line regulation better than .01%.
  • TUBE COMPLEMENT: (4) 6H30P dual triode.
  • POWER REQUIREMENTS: 105-125VAC 60Hz (200-250VAC 50/60Hz) 130 watts maximum.
  • STANDBY: 2W
