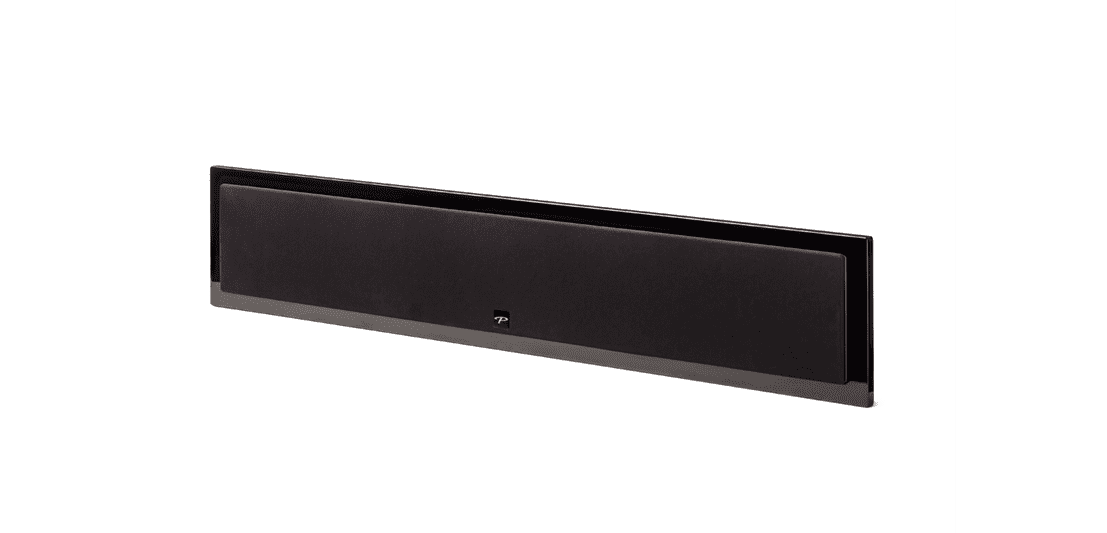

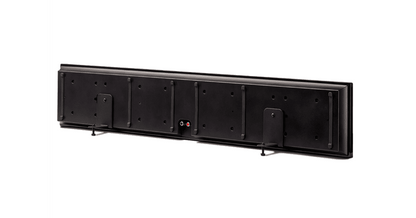

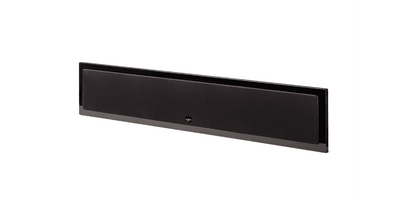

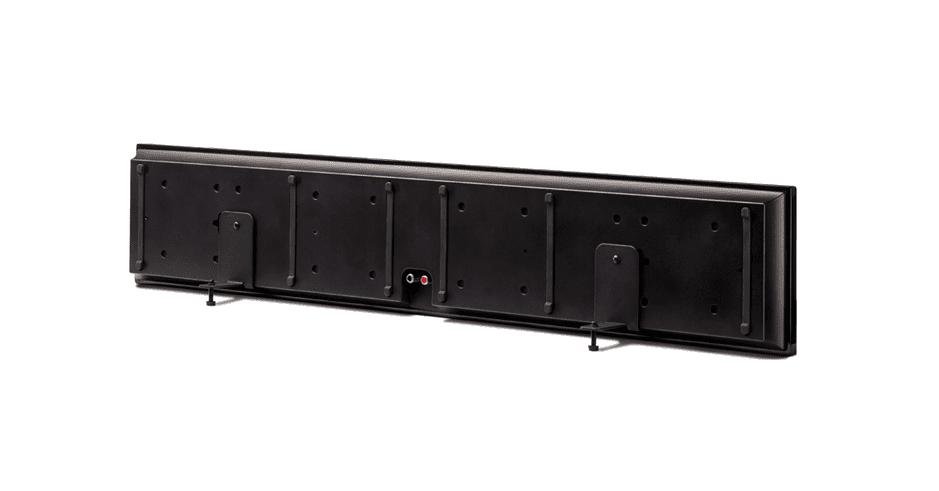

Ultra thin (1-3/4 in / 4.4 cm) including wall mount 3-driver, 2-way bass-reflex with four passive radiators in ultra-thin on-wall with molded high-gloss polymer enclosure.
High-Frequency Drive Units
- S-PAL Satin-Anodized Pure-Aluminum Dome
- Rigid Mineral-Filled ABS Chassis
- Protective, Perforated Aluminum Mesh Screen Guard with Wide Dispersion Architecture and Integrated Phase Ring
- High-Power Apical Former
- Advanced Motor Structure with Extruded Aluminum Heat sink
Bass/Midrange Drive Units
- High-Poformance Anodized Unibody Bass/midrange Cone
- Performance-Optimized Nitrite-Butodiene rubber Surround
- Nomex Spider
- High-power Apical Former
- High-Performance Motor Assembly includes 1-1/2” High-Temperature Aluminum Voice coil and Powerful Neodymium Magnet
- Steel Heatfin Basket
Passive Radiators
- High-Performance Anodized Unibody Bass/Midrange Cone
- Performance-optimized Nitrite Butadiene Rubber Surround
- Precision-Tuned Resonances System
Specifications:
| DESIGN |

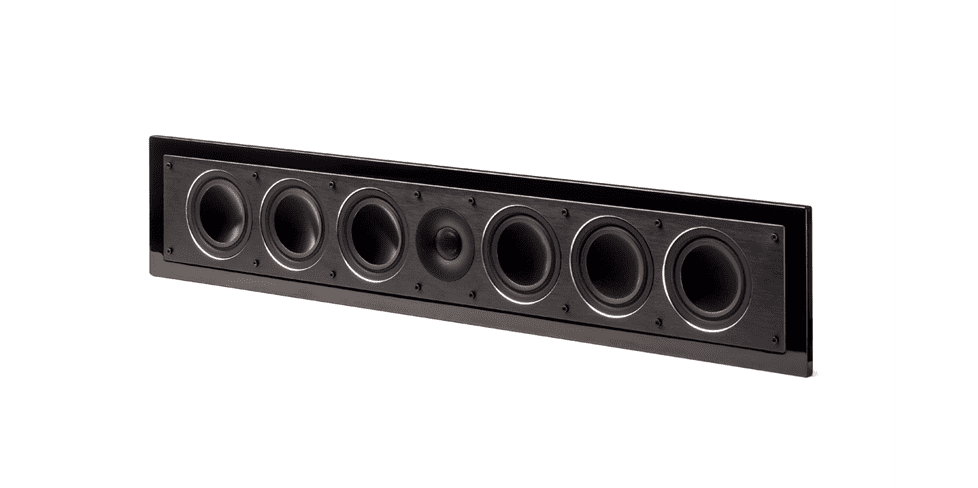

7-driver, 2-way bass-reflex includes powered drivers and passive radiators. |
| CROSSOVER |
2nd-order electro-acoustic at 2.6 kHz |
| FREQUENCY RESPONSE ON-AXIS
|
±3 dB from 120 Hz – 21 kHz |
| HIGH FREQUENCY DRIVER |
One 25-mm (1 in) S-PAL™ dome, ferro-fluid damped/cooled |
| MIDRANGE FREQUENCY DRIVER |
Two 114-mm (4-1/2 in) anodized unibody cones, 37-mm (1-1/2 in) high-temperature aluminum voice coils, Nomex spider, Nitrile-Butadiene rubber surround, neodymium magnet, basket integrated motor heat dissipation system, tempered steel heatfin basket. |
| LOW FREQUENCY EXTENSION |
60 Hz (DIN) |
| SENSITIVITY ROOM / ANECHOIC |
92 dB / 89 dB |
| FREQUENCY RESPONSE 30° OFF-AXIS
|
±3 dB from 120 Hz – 15 kHz |
| SUITABLE AMPLIFIER POWER RANGE |
15 – 130 watts |
| MAXIMUM INPUT POWER |
70 watts |
| IMPEDANCE |
Compatible with 8 ohms |
| DIMENSIONS HXWXD
|
33-3/4" × 6-3/4" × 1-3/4" (83.8cm × 15.2cm × 2.5cm) |
| WEIGHT |
9 lbs. (4.1 kg) |
| FINISHES |
Black gloss with brushed aluminum accents |
| PASSIVE RADIATORS |
Four 114-mm (4-1/2 in) anodized unibody cones, Nitrile-Butadience rubber surround, precision-tuned resonance system. |
