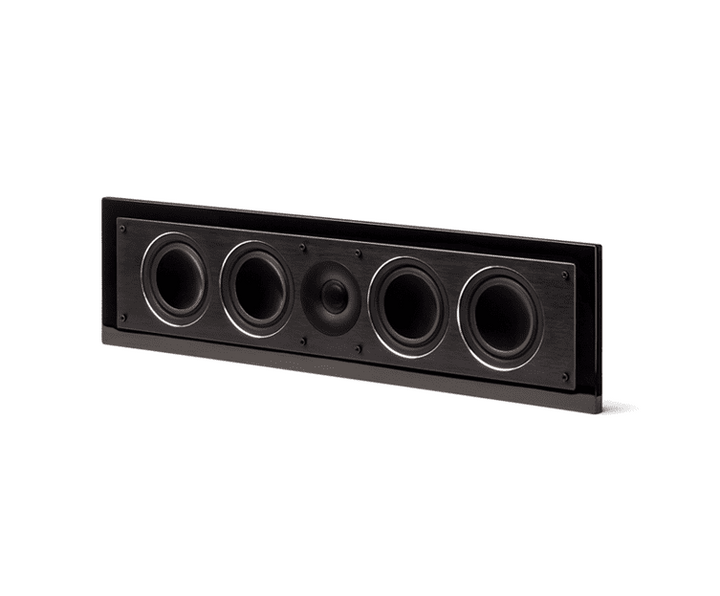

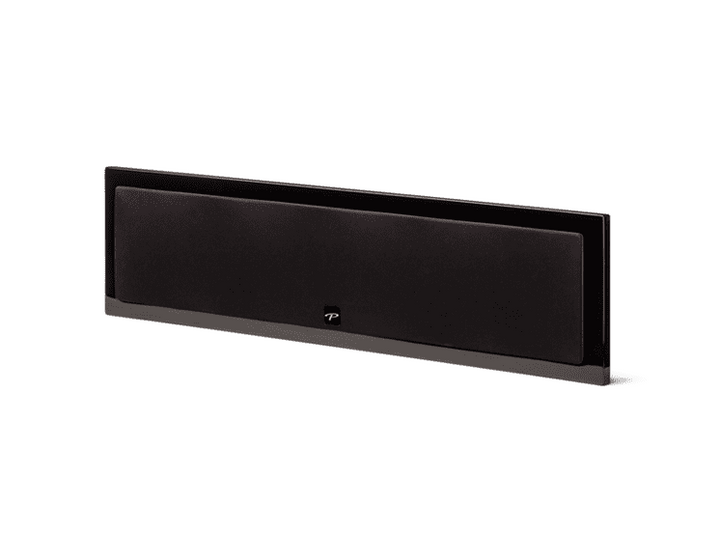

Ultra thin (1-3/4 in / 4.4 cm) including wall mount 3-driver, 2-way bass-reflex with dual passive radiators in ultra-thin on-wall with molded high-gloss polymer enclosure.
SPECIFICATIONS
| DESIGN |
5-driver, 2-way bass-reflex includes powered drivers and passive radiators. |
| CROSSOVER |
2nd-order electro-acoustic at 2.6 kHz |
| FREQUENCY RESPONSE ON-AXIS
|
±3 dB from 120 Hz – 21 kHz |
| HIGH FREQUENCY DRIVER |
One 25-mm (1 in) S-PAL™ dome, ferro-fluid damped/cooled |
| MIDRANGE FREQUENCY DRIVER |
Two 114-mm (4-1/2 in) anodized unibody cones, 37-mm (1-1/2 in) high-temperature aluminum voice coils, Nomex spider, Nitrile-Butadiene rubber surround, neodymium magnet, basket integrated motor heat dissipation system, tempered steel heatfin basket. |
| LOW FREQUENCY EXTENSION |
75 Hz (DIN) |
| SENSITIVITY ROOM / ANECHOIC |
92 dB / 89 dB |
| FREQUENCY RESPONSE 30° OFF-AXIS
|
±3 dB from 120 Hz – 15 kHz |
| SUITABLE AMPLIFIER POWER RANGE |
15 – 130 watts |
| MAXIMUM INPUT POWER |
70 watts |
| IMPEDANCE |
Compatible with 8 ohms |
| DIMENSIONS HXWXD
|
25-1/5" × 6-1/2" × 1-3/4" (63.5cm × 15.2cm × 2.5cm) |
| WEIGHT |
6.5 lbs. (3.0 kg) |
| FINISHES |
Black gloss with brushed aluminum accents |
| PASSIVE RADIATORS |
Two 114-mm (4-1/2 in) anodized unibody cones, Nitrile-Butadiene rubber surround, precision-tuned resonance system. |
